Taillight Volkswagen Caddy | Ledson Nano

Item ID: 75024-832

€178

Incl. VAT

Which variant do you want?

Including cabling (without XBB)

75024-832

€178

Available in external warehouse | Ships within 2-7 business days

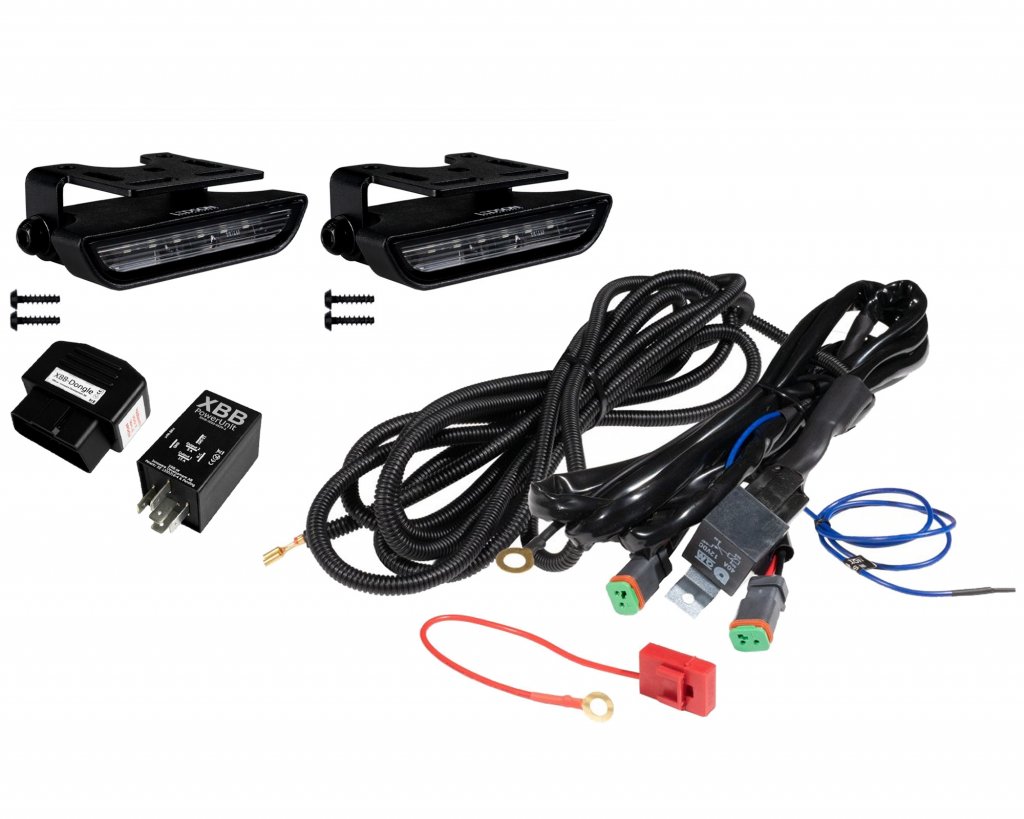

Incl. XBB (Dongle + PowerUnit) and cabling

75024-830

€418

Available in external warehouse | Ships within 2-7 business days

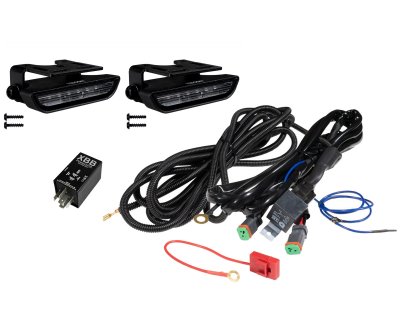

Incl. XBB (PowerUnit) and cabling

75024-831

€295

Available in external warehouse | Ships within 2-7 business days

Available

Available in external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 2-7 business days

Product Description:

Complete reversing light kit for Volkswagen Caddy from 2021-. Includes everything you need for a smooth installation: 2x reversing lights Ledson Nano, cable set and screw. With its sleek design and powerful brightness, the Ledson Nano is both stylish and functional, perfect for giving your vehicle optimal rear visibility during rough and challenging driving conditions.

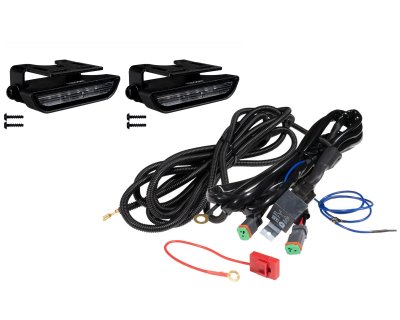

Rear light Volkswagen Caddy | 2 pcs Ledson Nano incl. wiring

What's in the kit:

2 pcs Ledson Nano
Cable set with 2 DT connectors/DT outputs
4x PT-Screw WN 1451

As an option you can choose:

XBB Dongle + 1 Power Unit
1 Power Unit

Assembly:

Connection to existing reversing light (for more info, see wiring diagram further down the page under "Documents")
- Relay cable with outlets for two additional reversing lights on your car, where the supply is controlled by a relay. Compatible with XBB.
Universal mounting kit for 2xNano
- The Ledson Nano rear lights are supplied with bolts and screws for easy installation. As the mounting kit is universal, you can choose the mounting points under the rear bumper yourself. The kit is compatible with the Volkswagen Caddy, but can also be adapted for other vehicles.

Rear light Ledson Nano | 2 pcs ingår

The Nano reversing light is E-marked and approved according to ECE R23, making it fully legal to use as a reversing light. The sleek and modern design blends seamlessly with your vehicle, providing a stylish and functional lighting solution.

Specification 1 piece Ledson Nano:

E-marking: ECE R23 (approved as reversing light)
Range: 31 meters (1 lux)
Lumen: 2800 lumen (actual 1750 lumen)
Light spread: 140° wide light pattern for optimal coverage behind the vehicle
Lighting temperature: 5000K, providing a clear and natural light
Power: 30W (6 x 5W LED), providing high performance with low energy consumption
IP rating: IP68, which means the lamp is water and dust resistant
Electronic heat management: To ensure long life and constant performance
Power supply: 9-36V, compatible with both 12V and 24V vehicles
Power consumption: 2A at 12V and 1A at 24V
EMC rating: ECE R10, which ensures that the light does not cause electromagnetic interference

Relay wiring harness | Cable set ingår

Relay cable specifically designed to mount two extra reversing lights on your Volkswagen Caddy, where the supply is controlled by a relay. Extra long plus cable of 3.9 meters ensures that the wiring reaches the entire route from your reversing lights to the battery. The wiring harness has 2 DT connectors / DT outputs with an input for control from the existing reversing light. The wiring harness is Plug n Play for XBB.

XBB Dongle + PowerUnit available as an option

The installation is super easy and the communication between the OBD reader and the auxiliary light relay is completely wireless via Bluetooth, which means that everything can be ready in as little as 15 minutes! No more time-consuming search for Canbus cables or any wiring inside the car.

Installing the XBB kit (complete quick guide here):

For installation: Download the free app XBB Configurator to your Android phone or Xbb Configurator for your iPhone and make sure your Volkswagen Caddy is compatible with the kit.

OBD-II transmitter (Dongle)
Receiver relay (Powerunit)

The receiver relay communicates with the transmitter (dongle) via Bluetooth / Bluetooth and has two independent outputs. These outputs can handle up to 15A and up to 5A respectively.

XBB PowerUnit available as an option

If you already provide an XBB Dongle, you can choose the package with the optional XBB PowerUnit.

Select the desired package at the price button to customize the product to your needs.

Documents:
attachment

Assembly instructions for 2x Ledson Nano + cabling
