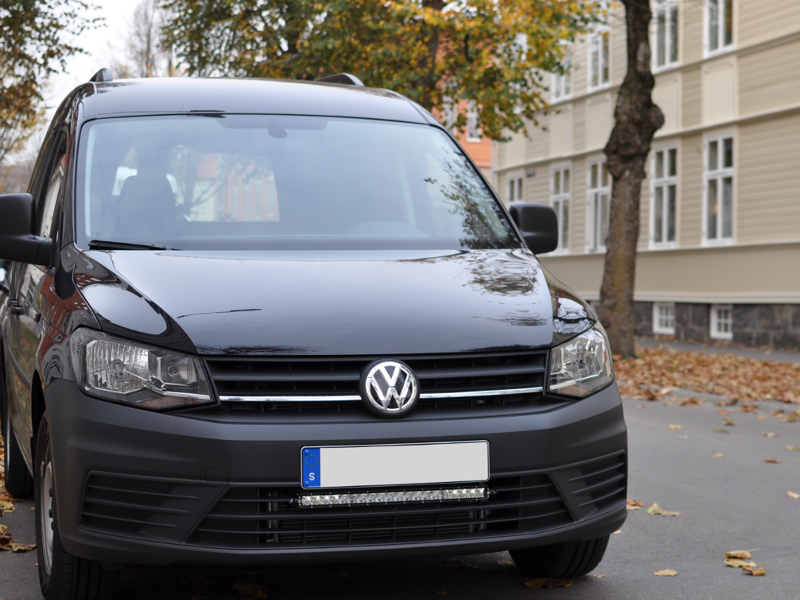

Handrail for Volkswagen Caddy from 2016-2020

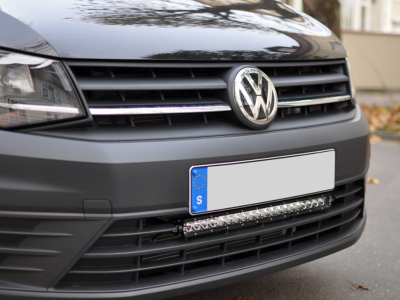

LED light bar Volkswagen Caddy 2016-2020

Item ID: 7555-832

Sorry - this product is currently not avaiable for purchase.

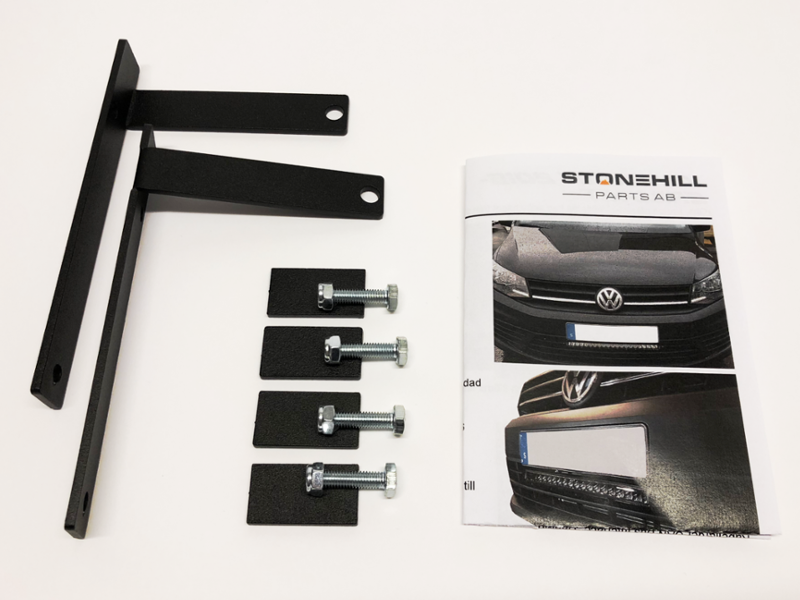

Complete kit with handrail, model-specific brackets and wiring harness for installation in the lower grille of Volkswagen Caddy from 2016-2020.

Available in three variants:

As loose brackets without handrail
With Viklight Ymer 20" articulated ramp
With handrail Rigid SR20 E-marked

Both Viklight Ymer 20" and Rigid SR20 are e-marked.

Articulated ramp Volkswagen Caddy

Technical specifications:

Viklight Ymer 20"

Ventilating membrane according to the Gore-Tex principle releases any condensation.
Number of LEDs: 18 5 watt LG LEDs (90W)
Number of lumens: 8100 theoretical
Light length with 1 lux: 448 meters
E-marked: Yes, E8 ECE R112 Reference number 20
Voltage: 9-30 volts DC
Power consumption: 7.5 Amp at 12 v
Color temperature: approx. 6500 K
Light pattern: Driving beam, extends the high beam
IP class: IP68, withstands weather and wind.
Warranty: 36 months

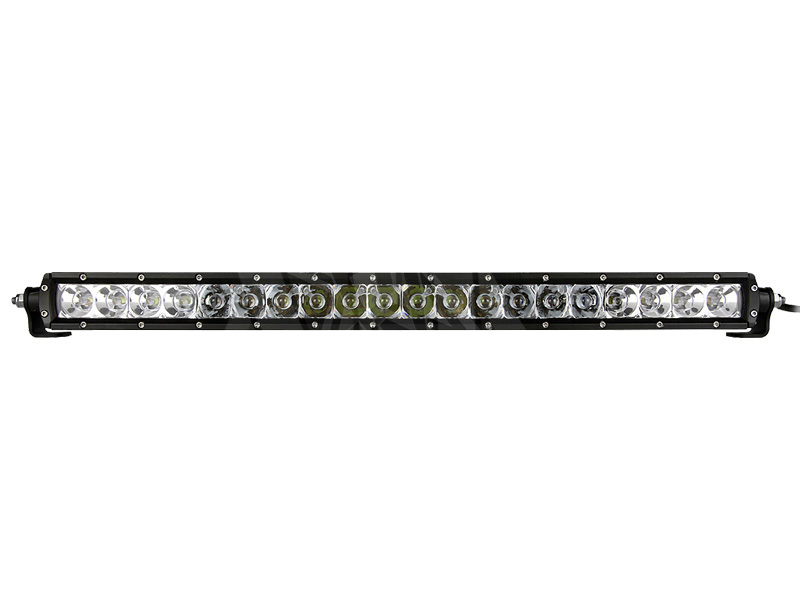

Rigid SR20 E-marked

Voltage: 9-32 V
Power consumption: 5.5 A
Over and under voltage protection, short circuit protection.
Moisture-proof cable with fuse and on/off switch included.
Withstands harsh weather conditions, extremely resistant to vibration and shock.
Protection class: IP68
Vibration rating: MIL810-STDG
Salt spray rated: ASTMB117
E-marked: Yes
Number of lumens: 7500
Wattage: 76
Lifetime: Up to 50 000 hours
Working range: -40°c to +63°c
Lens: Polycarbonate
Patented optics
5 years warranty

If you choose one of our complete packages, the bracket, lead frame, intended relay kit and possibly. CANBUS interpreter for connection to the car's electrical system.

On model year 2020, the mounting for the external temperature sensor may look slightly different. Some modification of the current bracket may be required to mount Rigid SR20
