Extra light package Lazer LED ramp kit for Volkswagen Amarok from 2023-

Extra light package Lazer Volkswagen Amarok

Item ID: 7569-830E

€1 137

Incl. VAT

Which variant do you want?

Lazer Triple-R 750 Gen. 2 - 9240 lumens

7569-830

€942

Available in external warehouse | Ships within 1-4 business days

Lazer Triple-R 750 Elite Gen. 2 - 10136 lumens

7569-830E

€1 137

Available

Assembly parts only

7569-830M

€174

Available in external warehouse | Ships within 1-4 business days

Available

Available in external warehouse | Ships within 1-4 business days

.

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

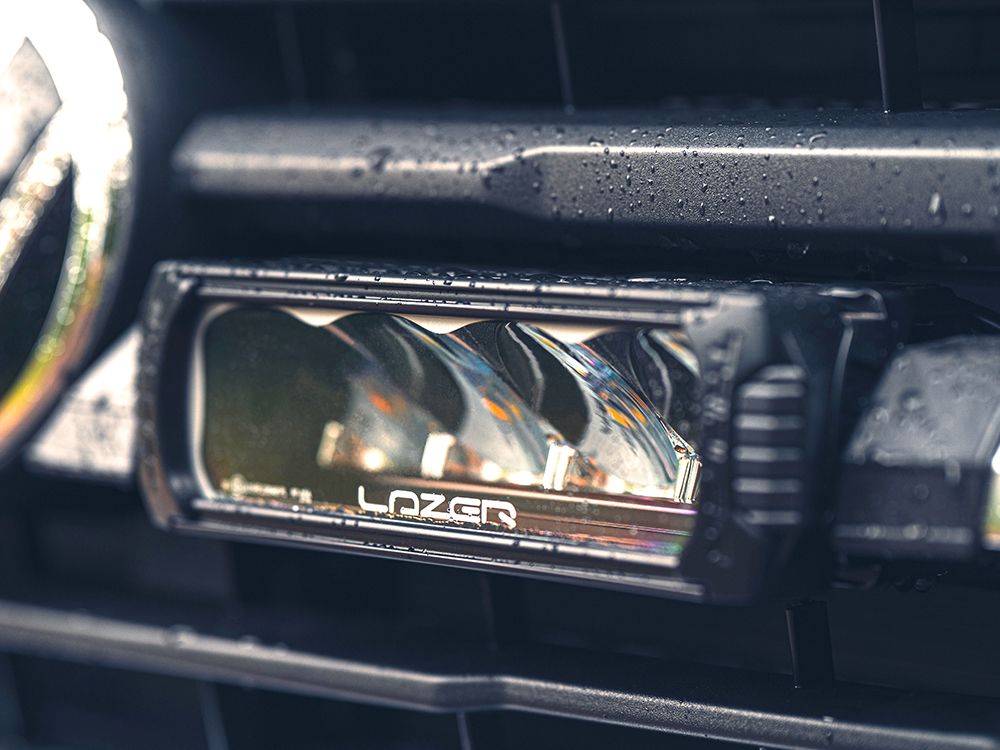

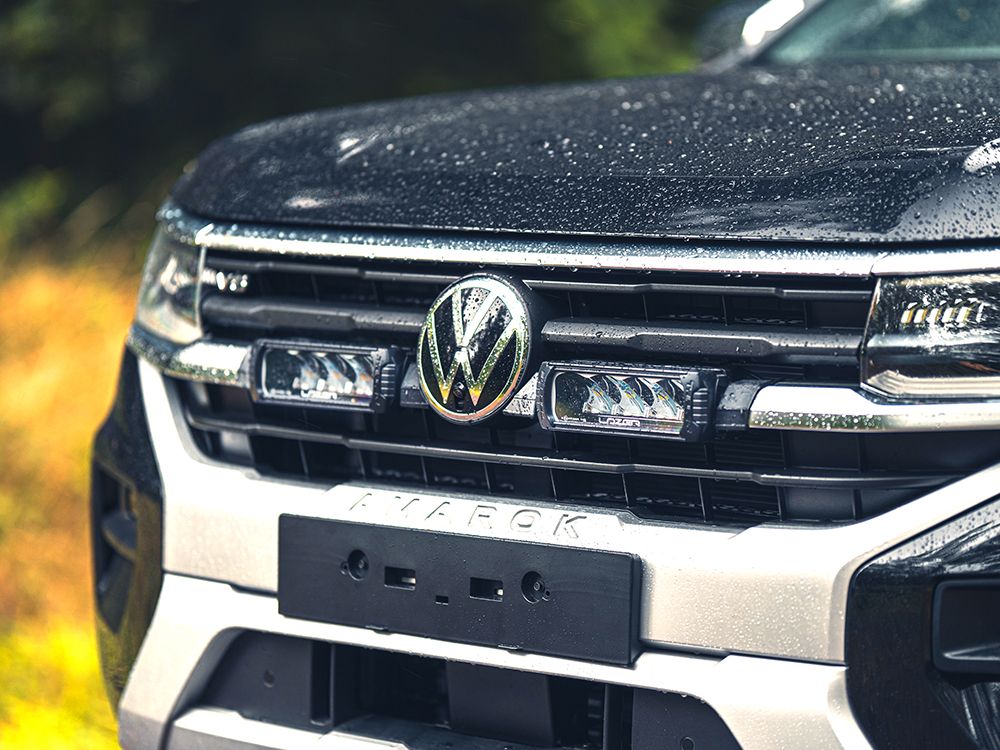

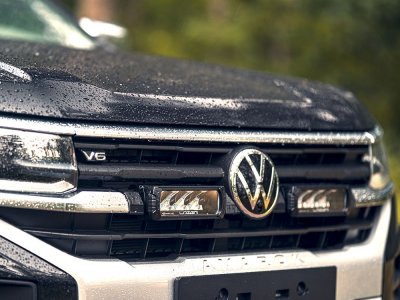

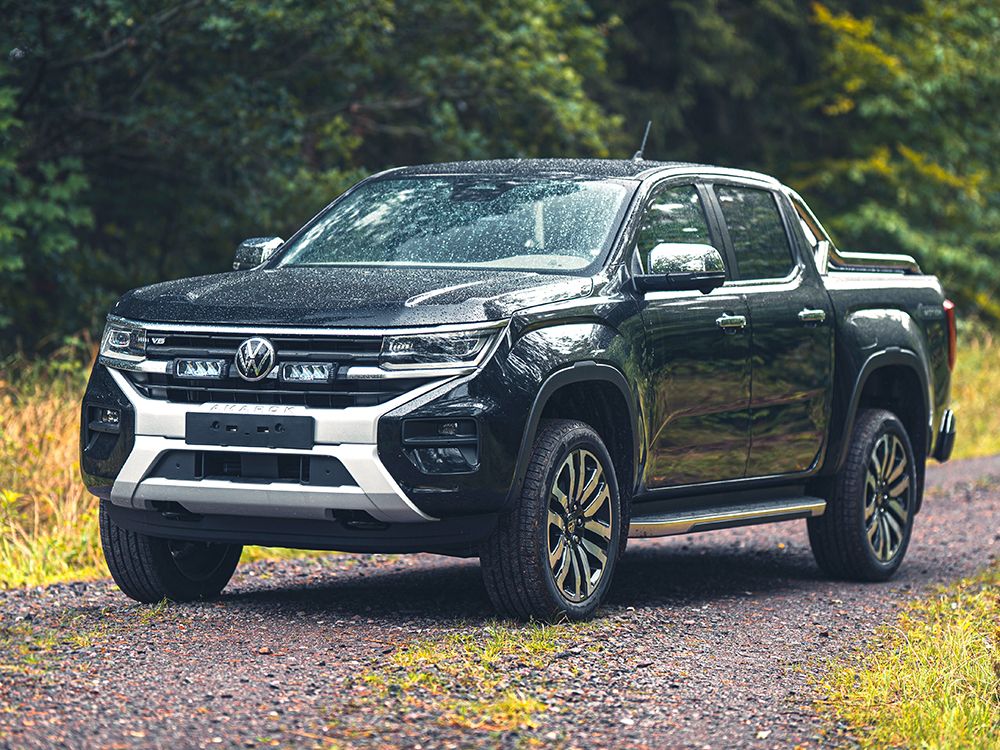

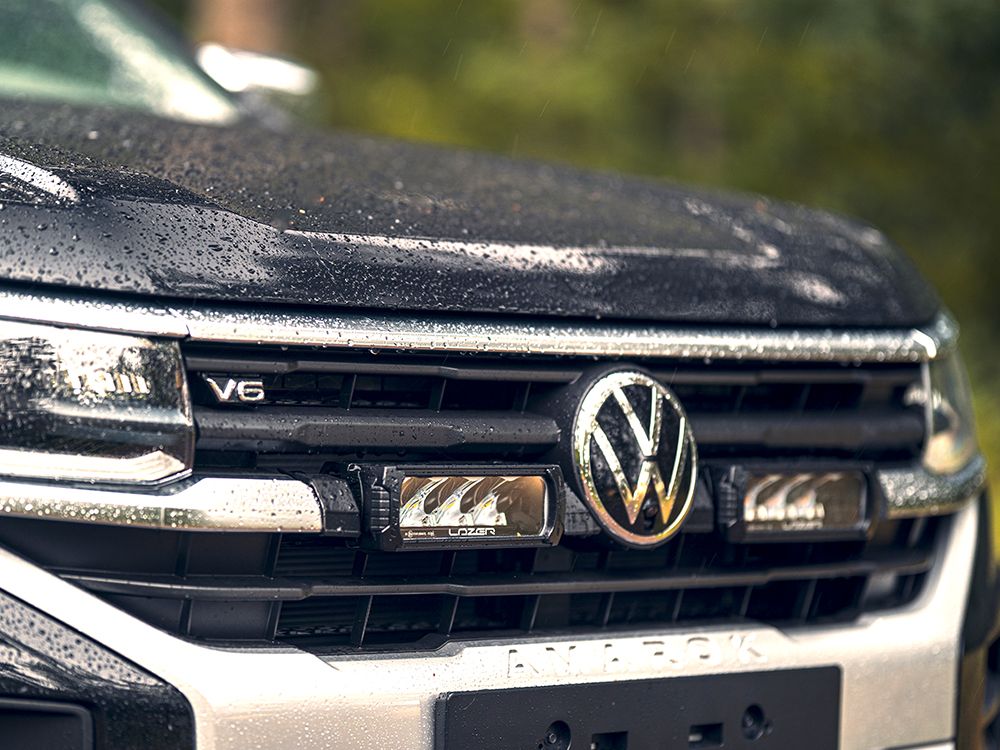

Complete auxiliary light kit containing everything you need for installation in the upper grill of Volkswagen Amarok from 2023 onwards.

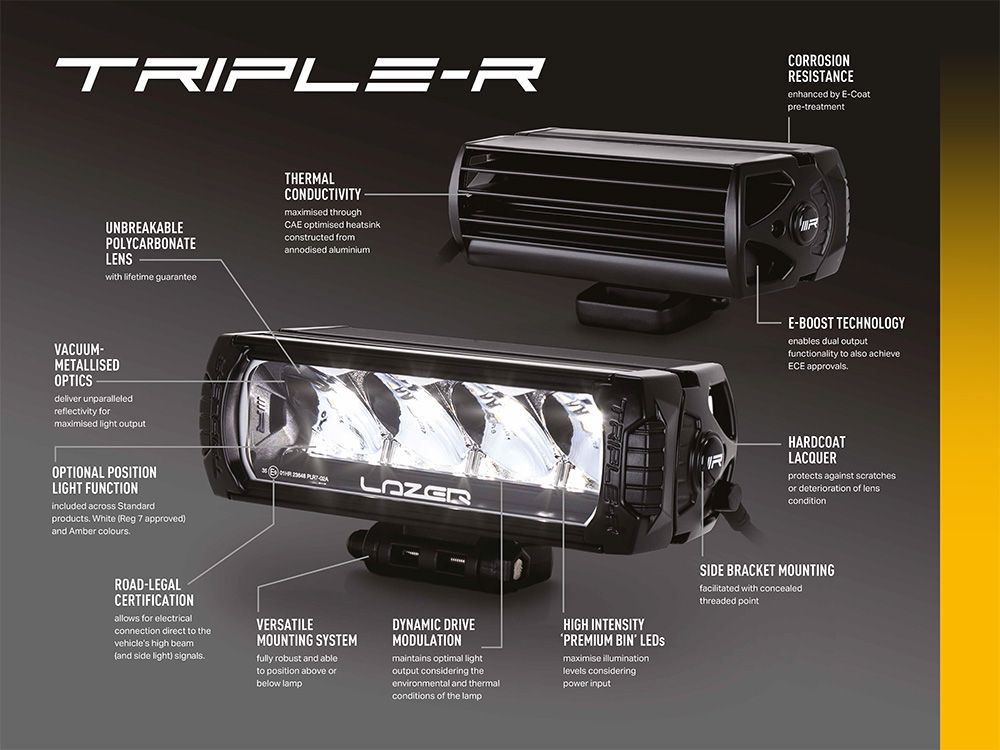

Complete extra light package Lazer Volkswagen Amarok containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Triple-R 750. You choose whether you want the Lazer Triple-R 750, or the Elite model for longer range and increased power.

Extra light package Lazer Volkswagen Amarok

Triple-R 750	Gen2	Elite Gen2
Voltage range	10-32V	10-32V
Luminous flux	9240 lm	10136 lm
Color temperature	5000 K	5000 K
Number of LEDs	2 x 4 pcs	2 x 4 pcs
Position light	Yes, White/Orange	No, no, no
Power output	88 W	104 W
Load (at 14.4V)	6,2 A	7,2 A
Certification
Reference number	2 x 35	N/A (2 x 12.5 E-marked mode)
High beam	ECE R112	ECE R112
Position light (White)	ECE R7	N/A

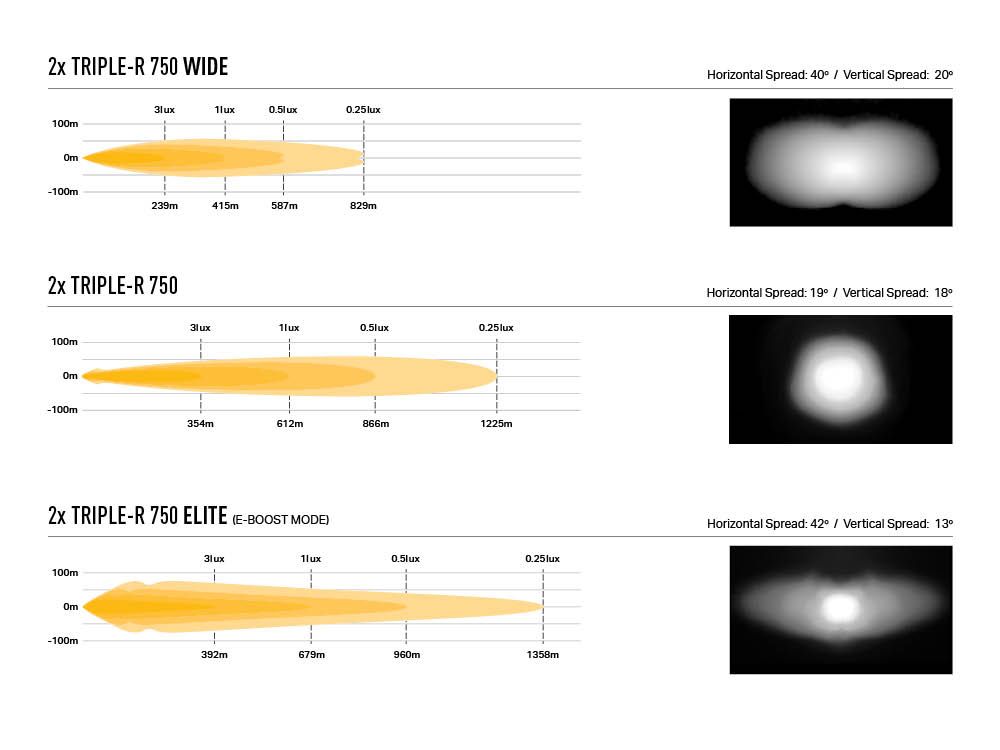

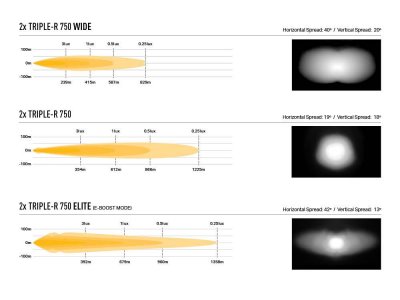

Luminous flux
Horizontal light angle	19 degrees	42 degrees
Range (1 lux)	612 meters	679 meters
Range (0.25 lux)	1225 meters	1358 meters

Installation

Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

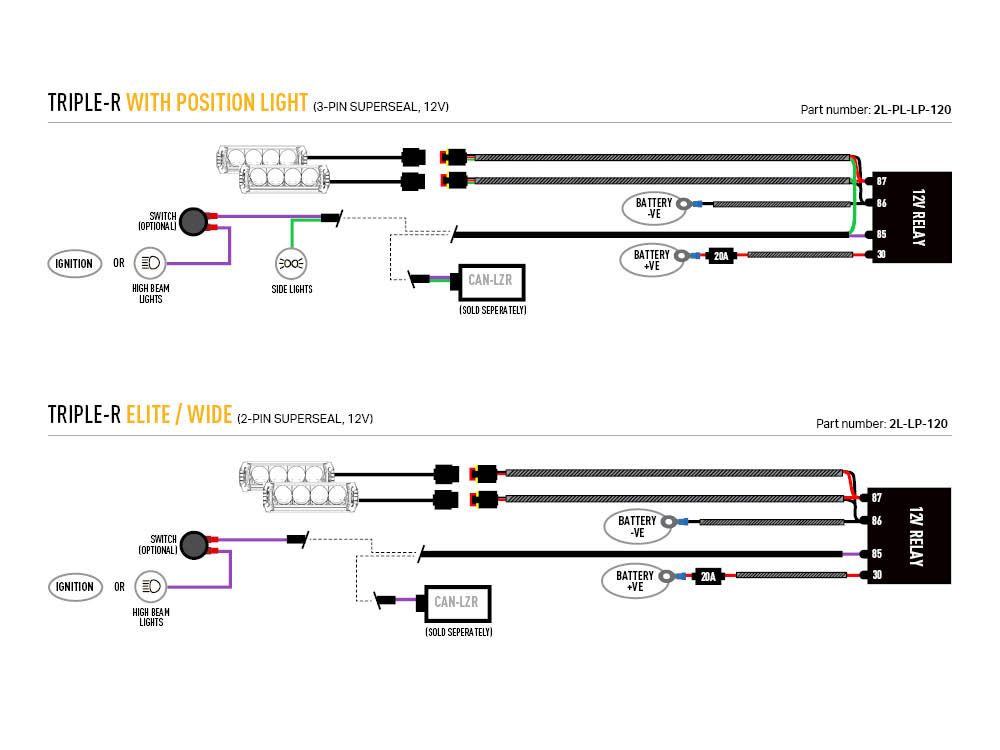

Wiring

For cars equipped with LED headlamps, the connection of the LED ramps (and position lights if desired) takes place under the dashboard on the driver's side of the car. The exact connection point can be found in the installation instructions. No additional CANBUS interpreter or similar is required.

What is included in the extra light package Lazer Volkswagen Amarok

2 x Lazer Triple-R 750 Gen2

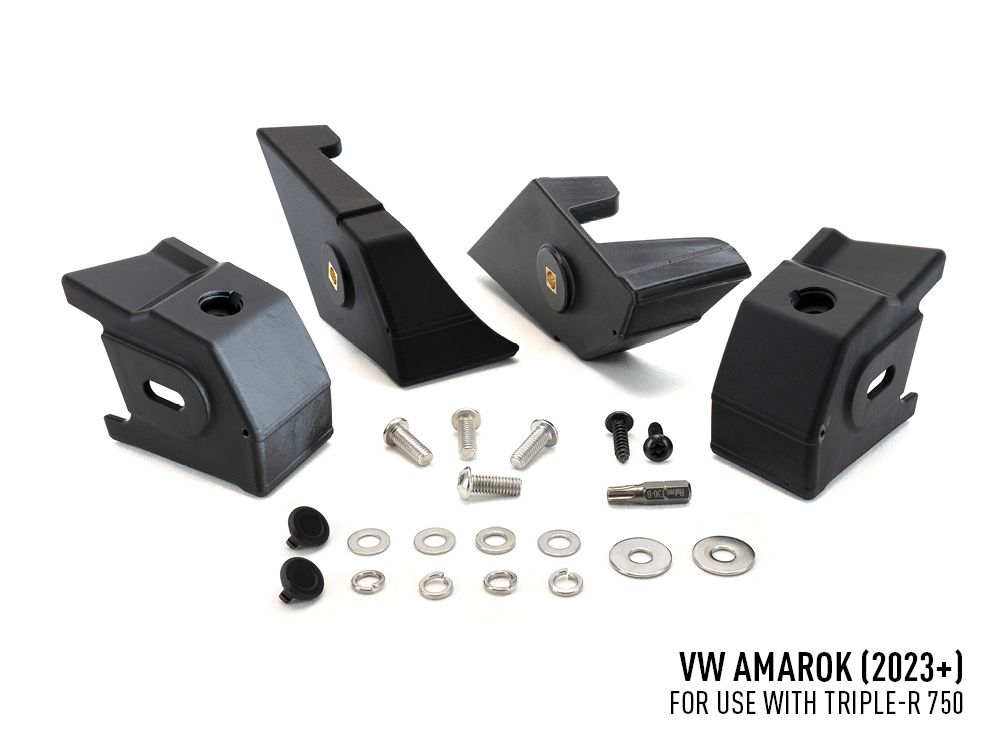

Mounting details

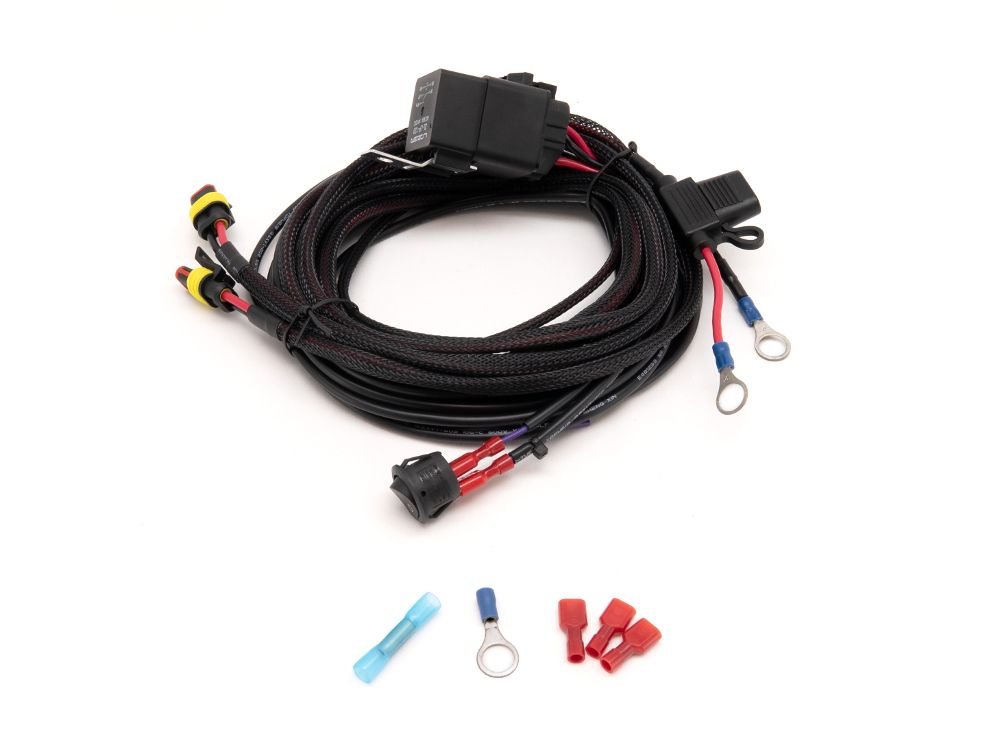

Relay kit
Mounting instructions

Lazer Volkswagen Amarok extra light kit is delivered as a complete kit

Documents:
attachment

attachment

Mounting desciption for led light bar 7569-830
