Handrail "Ymer 20"/Rigid SR20" for Volkswagen Amarok from 2017-2020

LED light bar Volkswagen Amarok from 2017-2020

Item ID: 7535-1950

Sorry - this product is currently not avaiable for purchase.

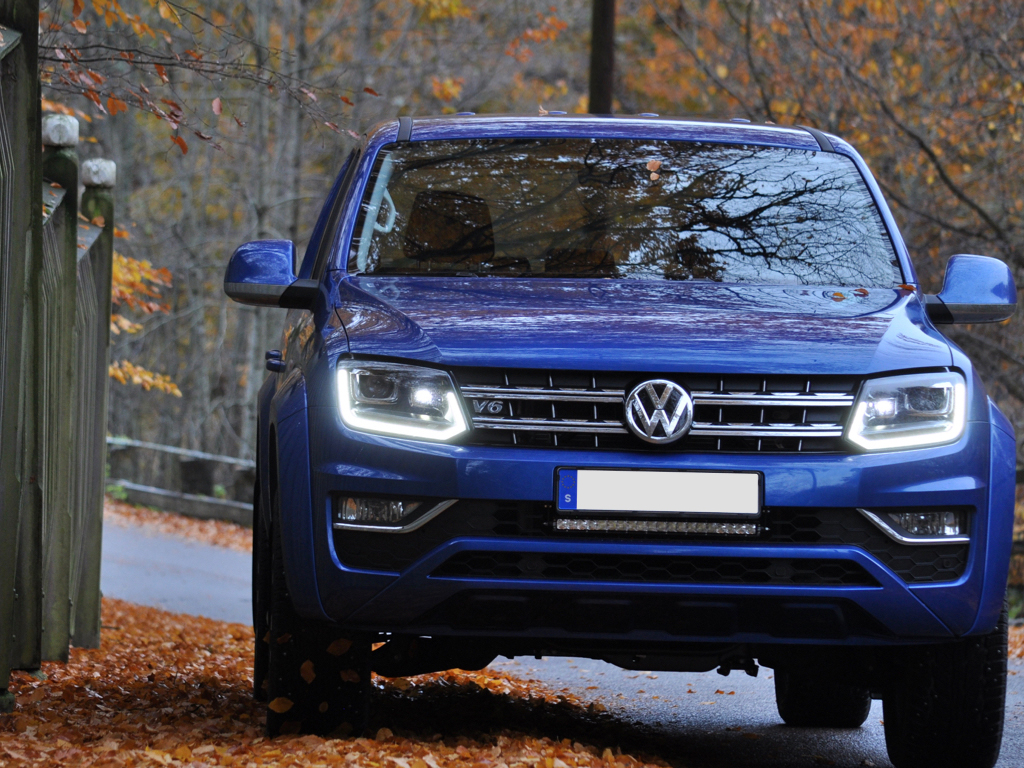

Complete kit with handrail, model-specific brackets and wiring harness for mounting in the lower grill of Volkswagen Amarok from 2017-2020.

Available in three variants:

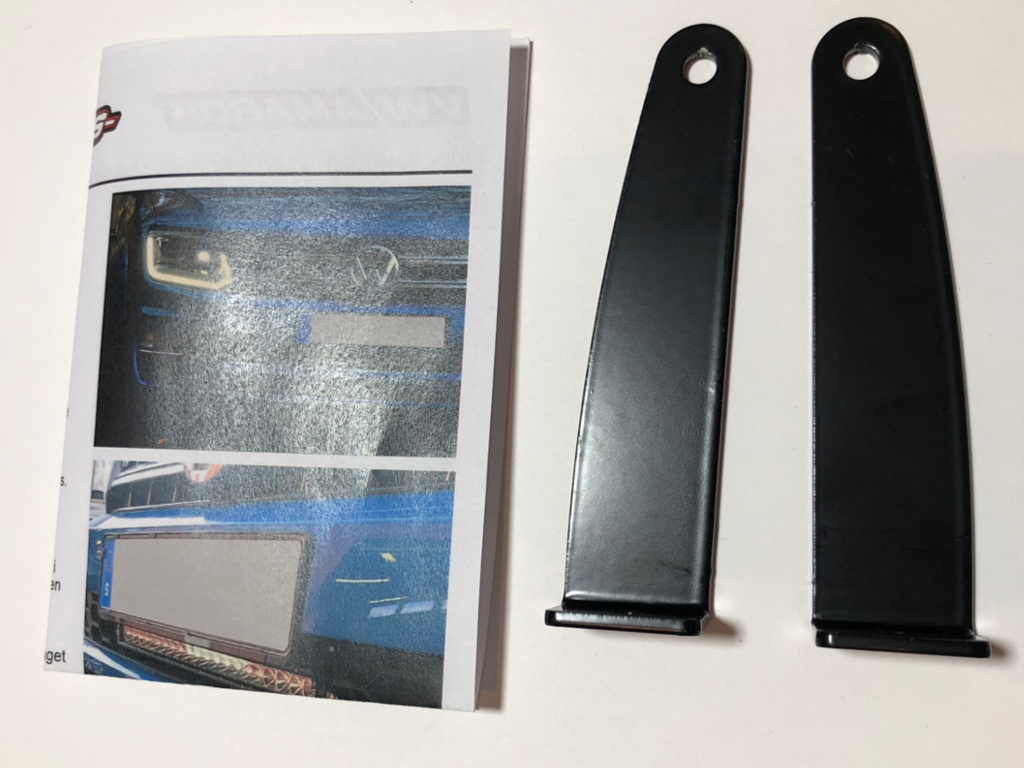

As loose brackets without handrail
With Viklight Ymer 20" articulated ramp
With Rigid SR20 articulated ramp E-marked

Both Viklight Ymer 20" and Rigid SR20 are e-marked.

Articulated ramp Volkswagen Amarok Ymer

Technical specifications:

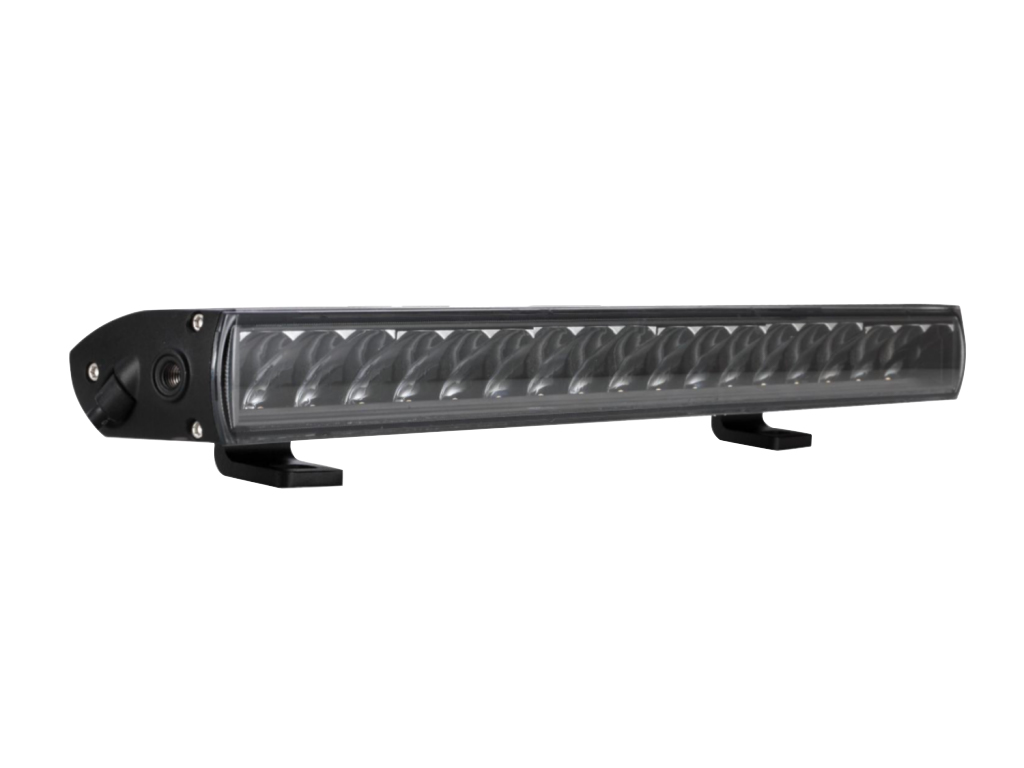

Viklight Ymer 20"

Ventilating membrane according to the Gore-Tex principle releases any condensation.
Number of LEDs: 18 5 watt LG LEDs (90W)
Number of lumens: 8100 theoretical
Light length with 1 lux: 448 meters
E-marked: Yes, E8 ECE R112 Reference number 20
Voltage: 9-30 volts DC
Power consumption: 7.5 Amp at 12 v
Color temperature: approx. 6500 K
Light pattern: Driving beam, extends the high beam
IP class: IP68, withstands weather and wind.
Warranty: 36 months

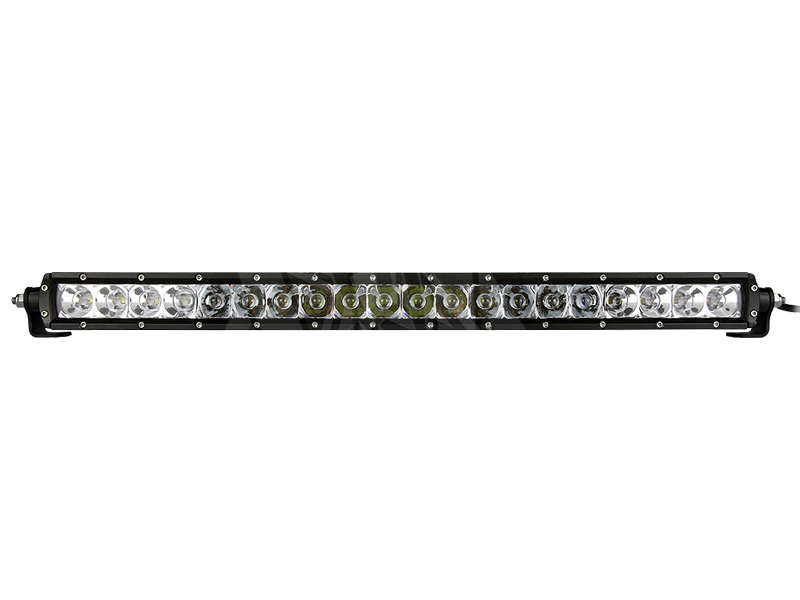

Rigid SR20 E-marked

Voltage: 9-32 V
Power consumption: 5.5 A
Over and under voltage protection, short circuit protection.
Moisture-proof cable with fuse and on/off switch included.
Withstands harsh weather conditions, extremely resistant to vibration and shock.
Protection class: IP68
Vibration rating: MIL810-STDG
Salt spray rated: ASTMB117
E-marked: Yes
Number of lumens: 7500
Wattage: 76
Lifetime: Up to 50 000 hours
Working range: -40°c to +63°c
Lens: Polycarbonate
Patented optics
5 years warranty

If you choose one of our complete packages, the bracket, lead frame, intended relay kit and possibly. CANBUS interpreter for connection to the car's electrical system.
