Roof rack Toyota Proace from 2013-2016

Item ID:  1522-986
€359
Incl. VAT

How many roof racks do you want?

€185
Available
€359
Available
€543
Available
€718
Available
Available
Made to order | ~4-6 weeks delivery time
.
Select options
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | ~4-6 weeks delivery time
Product Description:

Roof Rack with aerodynamically designed aluminum profiles, designed for professional use where high demands on strength, safety and durability are commonplace.

Aerodynamically designed aluminum profiles with top, rear and bottom fixing systems with M8 hexagonal bolts make these profiles fully adaptable to your needs. You can choose to mount accessories from us or another manufacturer, directly mount a roof box or pipe box to the profiles without having to use any clamping solution. The aluminum profile allows you to insert any M8 bolt into the top, rear and bottom of the profile for mounting accessories.

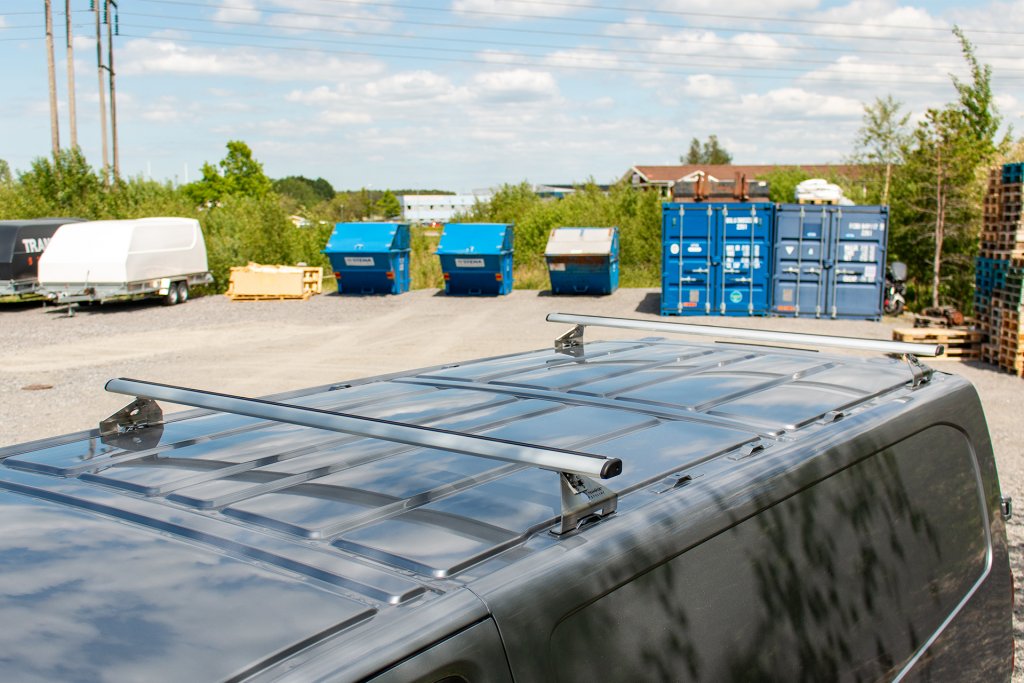

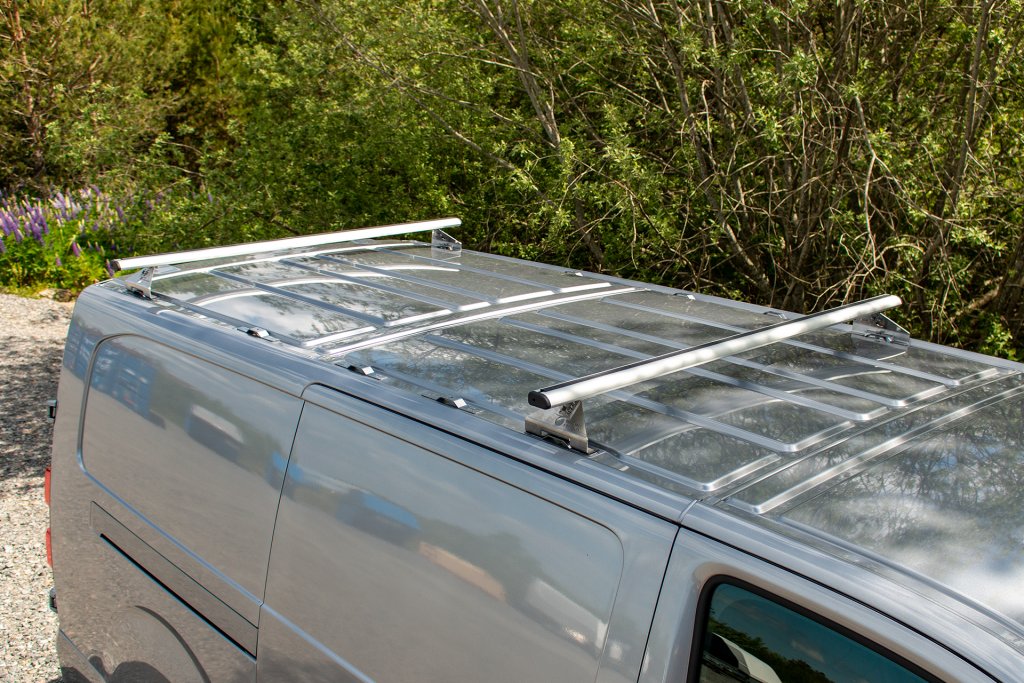

Toyota Proace roof rack

Our Roof Rack are developed by us, with local manufacturing of the foot kits and aluminum profiles within Europe.

  • Roof rack Toyota Proace from 2013-2015
  • Aerodynamic design of the aluminum profile
  • Natural anodized for durable surface and long life
  • Stable foot set made of stainless steel

What is included in the kit:

  • Aluminum profiles with matching rubber strips and end caps
  • Complete customized foot kit
  • All screws and details needed for mounting on the vehicle
  • Pre-applied rubber gaskets to protect the roof and seal

Assembly:

  • The installation is completely non-invasive, where the roof rack Toyota Proace is mounted in the car's existing attachment points on the roof (so-called fixpoints).

Technical specification:

  • Maximum load per roof rack when driving: 100 kg
  • Maximum load per roof rack when stationary: 250 kg
  • Material profile: Natural anodized aluminum
  • Footplate material: Stainless steel
  • Material mounting parts (incl. screws/bolts/ washers): Stainless steel

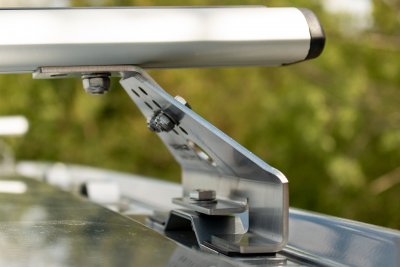

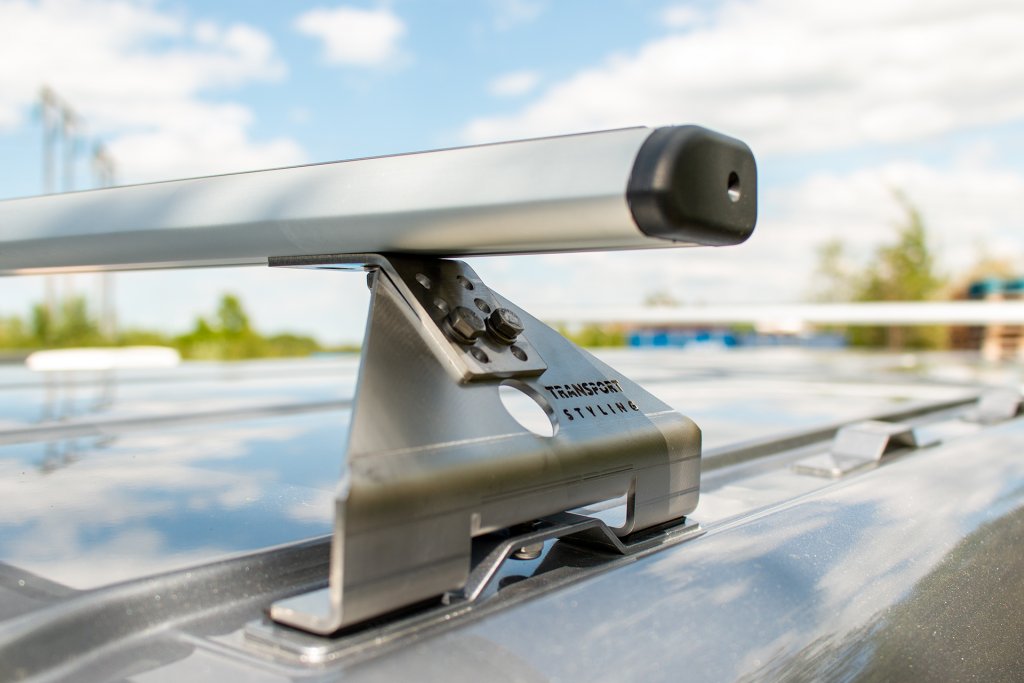

  • The pictures show foot sets where height adjustment is possible. Nowadays these foot sets are fixed in height for extra stability.

Roof rack Toyota Proace is delivered as a complete set with 1, 2, 3 or 4 aluminum profiles

This product is suitable for the following car models:

Toyota Proace from 2013-2015
2013, 2014, 2015

Toyota Proace från 2013-2015

Documents:
attachment Assembly Instruction for Roof Racks - Swedish
attachment Assembly Instruction for Roof Racks - English

Fits the following car models:

Toyota Proace from 2013-2016

Cars manufactured from 2013 to 2016

Toyota Proace 2013-2016 Toyota Proace 2016-

Body code: I

Engine:

  • Diesel

Assembly time: about 5 minutes

Warranty: 1 year warranty

Warranty: 3 year warranty

Assembly time: approx. 30 minutes

Max load per roof rail when driving: 100 kg

Max load per roof rack when stationary: 250 kg

Check the car's permitted roof load weight

Product dimensions:

  • Width (profile) - 60 mm
  • Height (profile) - 30 mm
  • Circumference (profile) - 145 mm
  • Length (load length) - 1400 mm
