  5. Lazer Grille kit Glide for Toyota Proace from 2024-
Categories

Grille kit Lazer Toyota Proace 2024-

  • Grille kit Lazer Toyota Proace from 2024 onwards
  • Grille kit Lazer Toyota Proace from 2024 onwards
  • Grille kit Lazer Toyota Proace from 2024 onwards
  • Grille kit Lazer Toyota Proace from 2024 onwards
Item ID:  70012-830
€644
Incl. VAT

Which variant would you like?

€644
Available in external warehouse | Dispatched within 1-4 working days
€683
Available in external warehouse | Dispatched within 1-4 working days
€908
Available in external warehouse | Dispatched within 1-4 working days
€947
Available in external warehouse | Dispatched within 1-4 working days
€117
Available in external warehouse | Dispatched within 1-4 working days
Available
Available in external warehouse | Dispatched within 1-4 working days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days
Product Description:

Complete auxiliary light kit containing everything you need for installation on the Toyota Proace from 2024 onwards.

Complete grille kit Lazer Toyota Proace containing model-specific 3D printed mounting parts together with relay kit and Lazer ramp Glide. You choose whether you want the Lazer Glide, or the Elite model for longer range and increased power.

Grille kit Lazer Toyota Proace

GlideStandardwith Position lightsElitewith Position lights
Voltage range10-32V10-32V10-32V10-32V
Luminous flux11500 lm11500 lm12800 lm12800 lm
Color temperature5000 K5000 K5000 K5000 K
Number of LEDs18 pcs18 pcs18 pcs18 pcs
Position lightNoYesNoYes
Power output120 W120 W130 W130 W
Load (at 14.4V)8,3 A8,3 A9,2 A9,2 A
Certification









Reference number

2 x 12,5

(2 x 12,5 E-marked mode)

2 x 12,5

(2 x 12,5 E-marked mode)

2 x 12,5

(2 x 12,5 E-marked mode)

2 x 12,5

(2 x 12,5 E-marked mode)

High beamECE R149ECE R149ECE R149ECE R149
Luminous flux

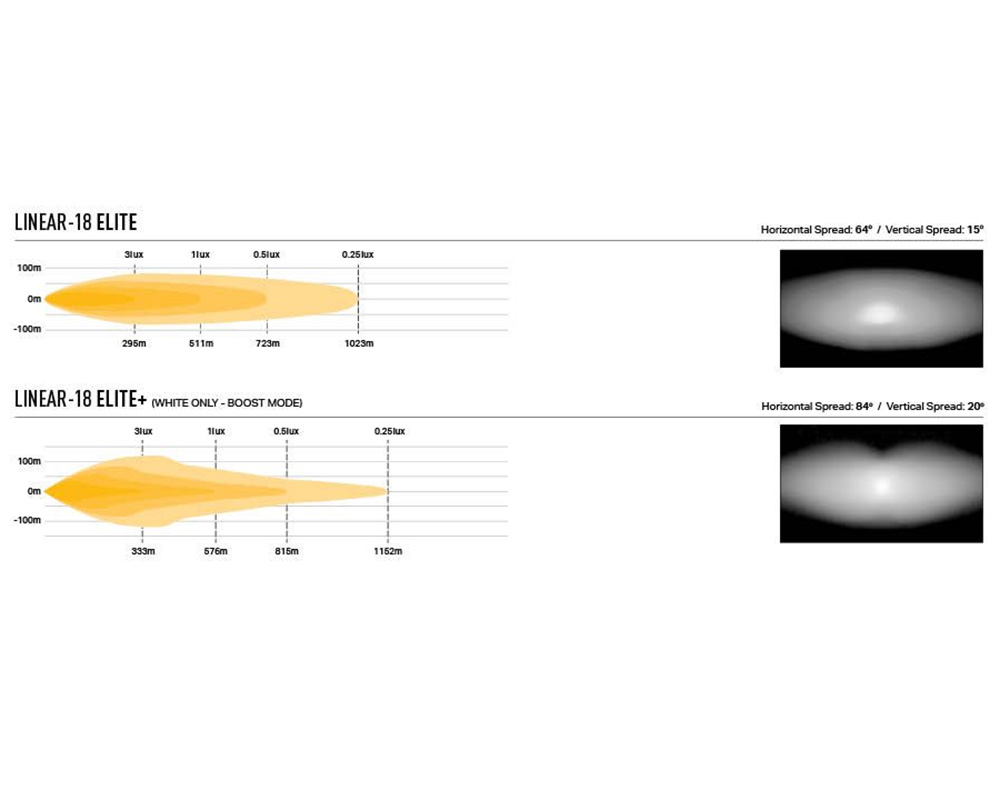

Light angle horizontal/vertical60/13 degrees60/13 degrees66/14 degrees66/14 degrees
Range (1 lux)548 meters548 meters624 meters624 meters
Range (0.25 lux)1095 meters1095 meters1249 meters1249 meters

Installation
  • Installation requires damage to the grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

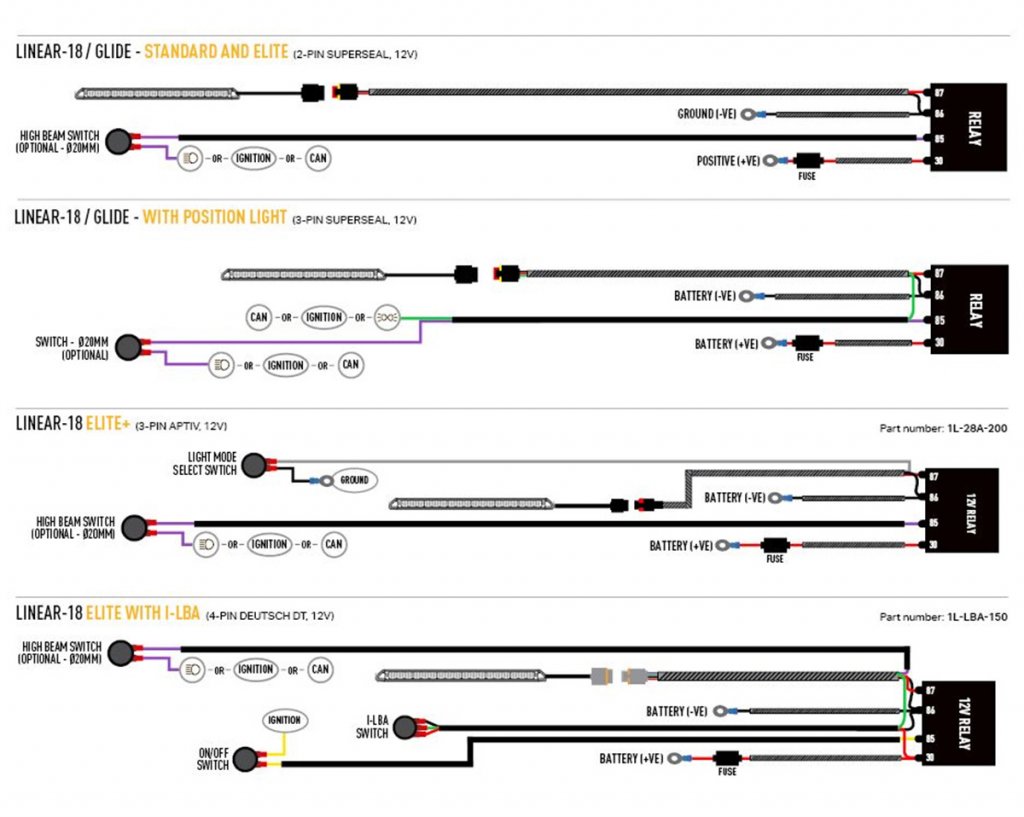

Wiring
  • Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.
What is included in the Grille kit Lazer Toyota Proace
  • 1 piece Lazer Glide

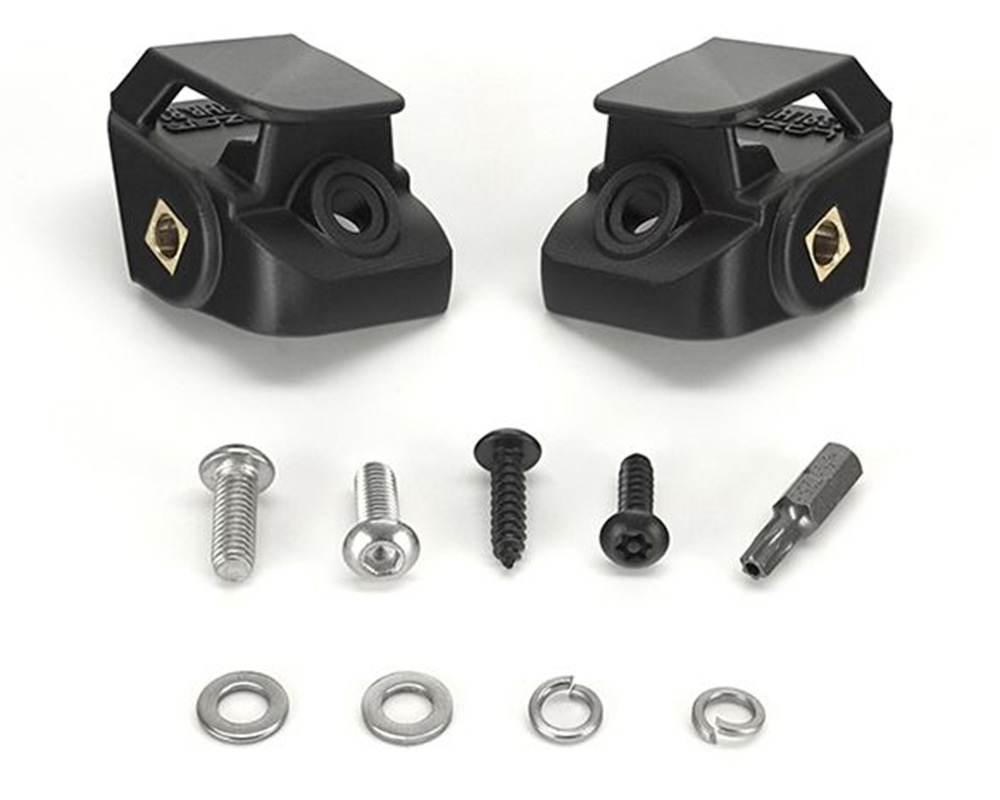

  • Mounting details
  • Relay kit
  • Mounting instructions

Grille kit Lazer Toyota Proace is supplied as a complete kit


Documents:
attachment Installation instructions for Lazer Glide Toyota Proace 2024-
attachment Product information Lazer Glide
attachment Product information Lazer Glide ELITE


Engine:

  • Diesel
  • Electric

Body Type:

  • Van

Body length:

  • L1 - Length: 4 606 mm
  • L2 - Length: 4 956 mm
  • L3 - Length: 5 308 mm
