Rearview camera that replaces the 3rd brake light on Toyota Proace from model year 2016- with split rear doors. A model-adapted rearview camera designed for our tough Nordic conditions with very clear and detailed imaging.

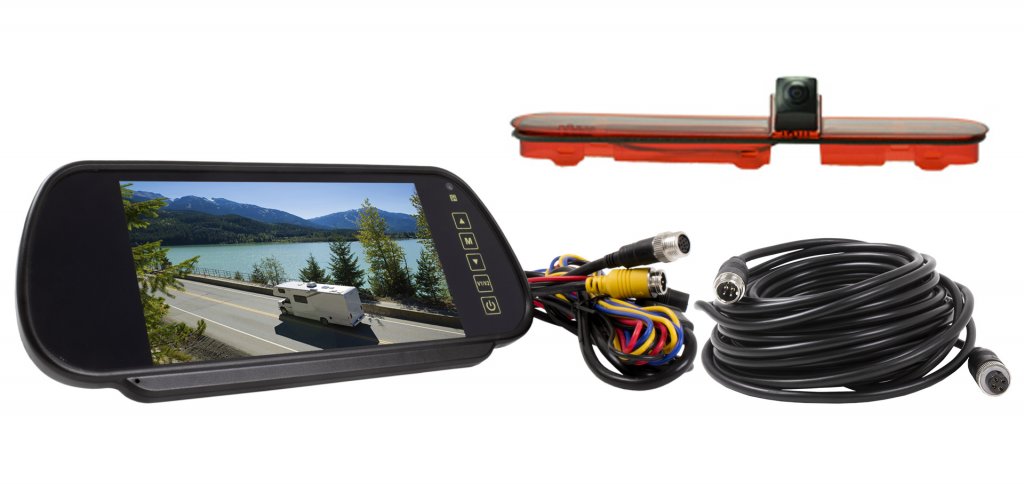

If you want to buy an external screen, there is a 7 "rearview mirror screen (hung over the existing rearview mirror) to choose from the drop-down list above.
Rear view camera Proace (Toyota) 2016-

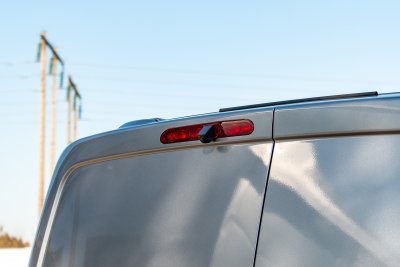

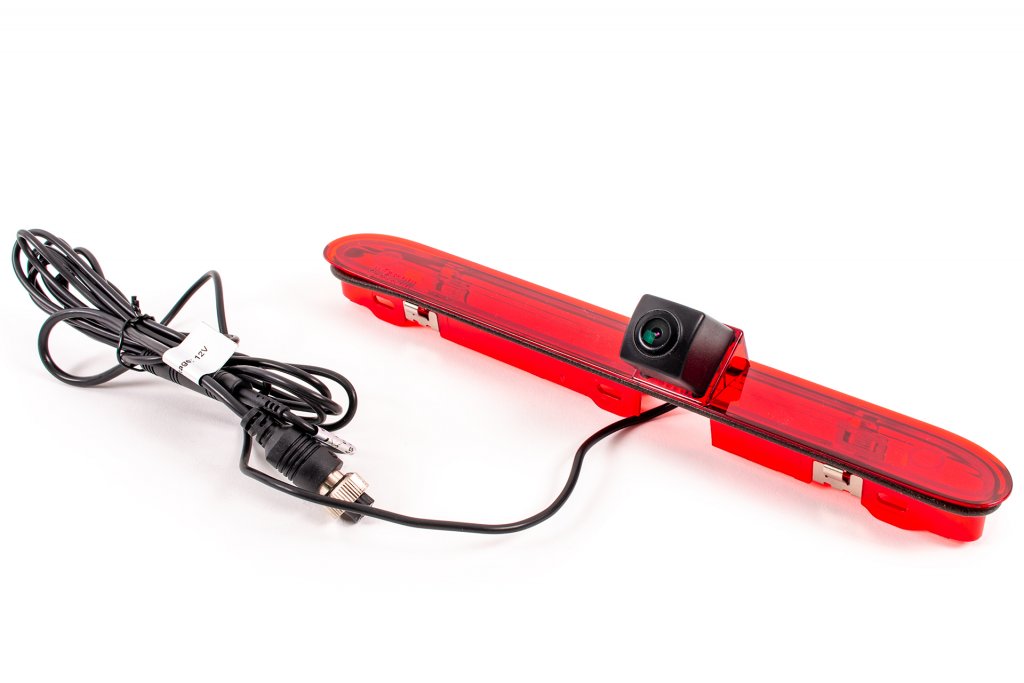

Easy and neat installation when the 3rd brake light is replaced with this module. Brake light and camera combined for installation in Toyota Proace.
Specifications reversing camera:
- Voltage range: 12 V (12-24 V when connected to monitor)
- Wide angle: 120 degrees
- Brightness: f/2.8
- Image sensor: 1/3" CMOS
- IR technology: Yes
- Protection class: IP69K
- Vibration resistance: 10 G

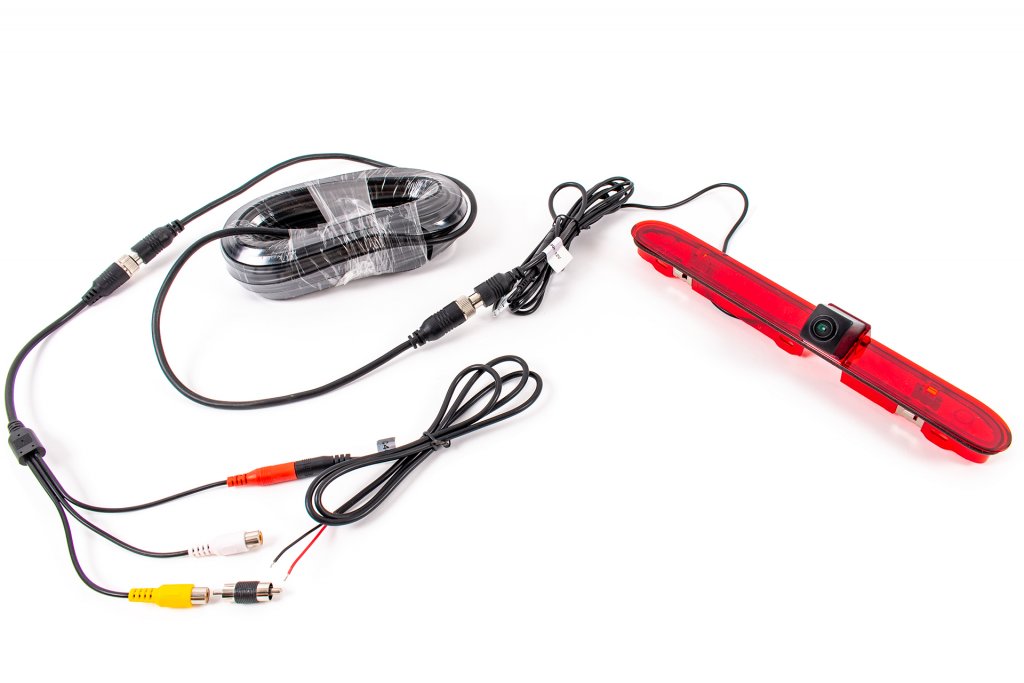

- When purchasing only the rear view camera, 10 meters of cable with 4-pin connector and a transition for RCA connection are included.
Our external monitors are very well suited for professional use. Suitable for most types of industries and is advantageously installed in transport vehicles. The LCD screen provides a detailed image and has a fast response time.
Specifications screens:
- Screen type: Digital TFT-LCD color monitor
- Connection: 4-pin/4-pin
- Voltage range: 10-32 V
- Camera connections: 2 pcs
- Dimensions incl. bracket (7" rear view mirror): W 249 mm x H 108 mm x D 39 mm
- Temperature range: -20 to +60 degrees
- Trigger control: Yes
- Remote control: Yes
Supplied as a complete kit.
This product is suitable for the following car models:
Toyota Proace from 2016-
From model year 2016 onwards
