Articulated ramp Alfa for Toyota Proace from 2016-

Alfa Led ramp package Toyota Proace 2016-2024

Item ID: 1540-3400

€451

Incl. VAT

Available

Available in external warehouse | Shipped within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 1-4 business days

Product Description:

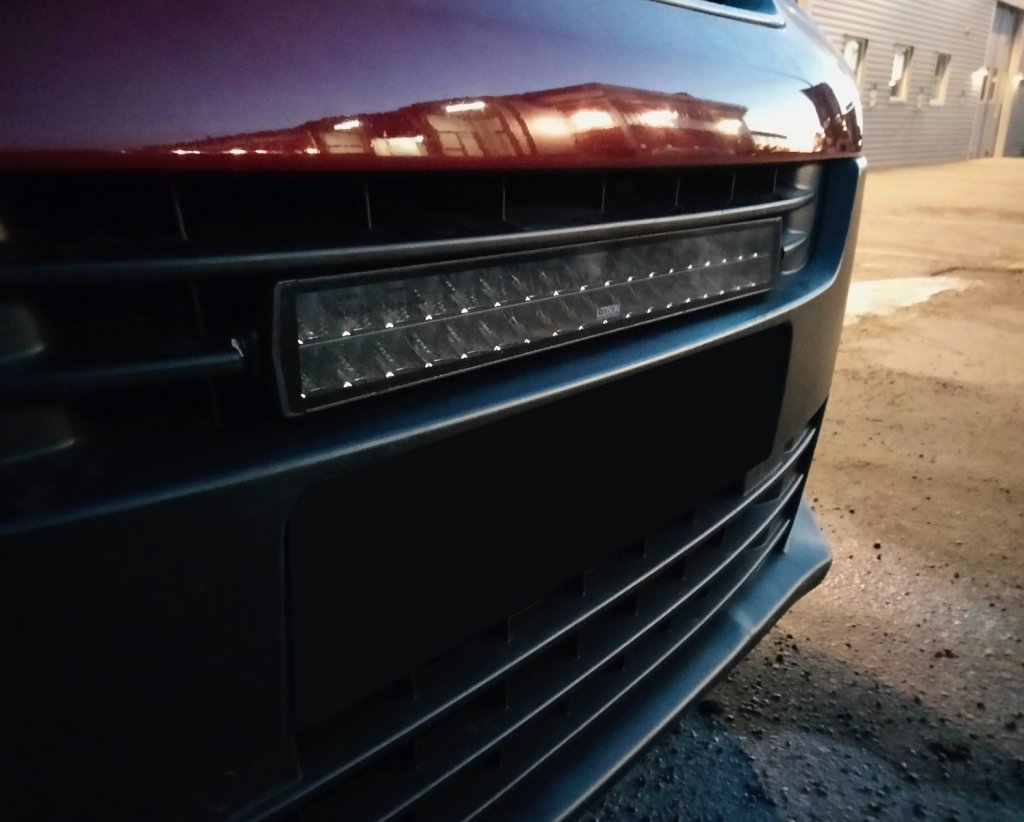

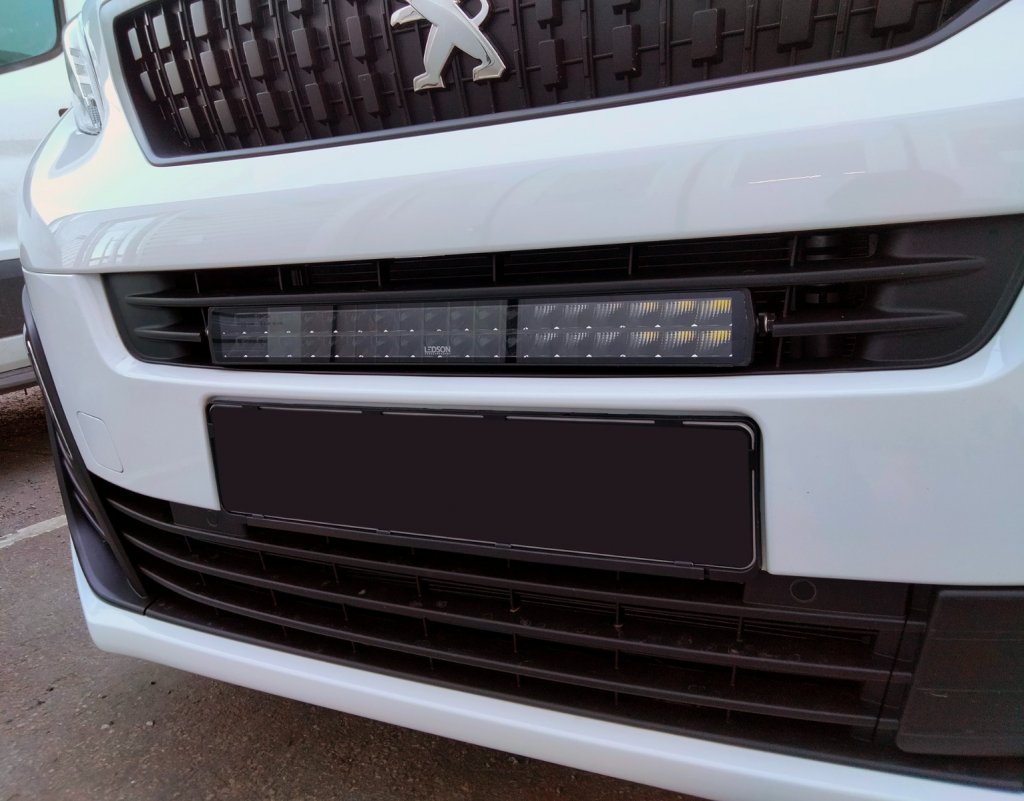

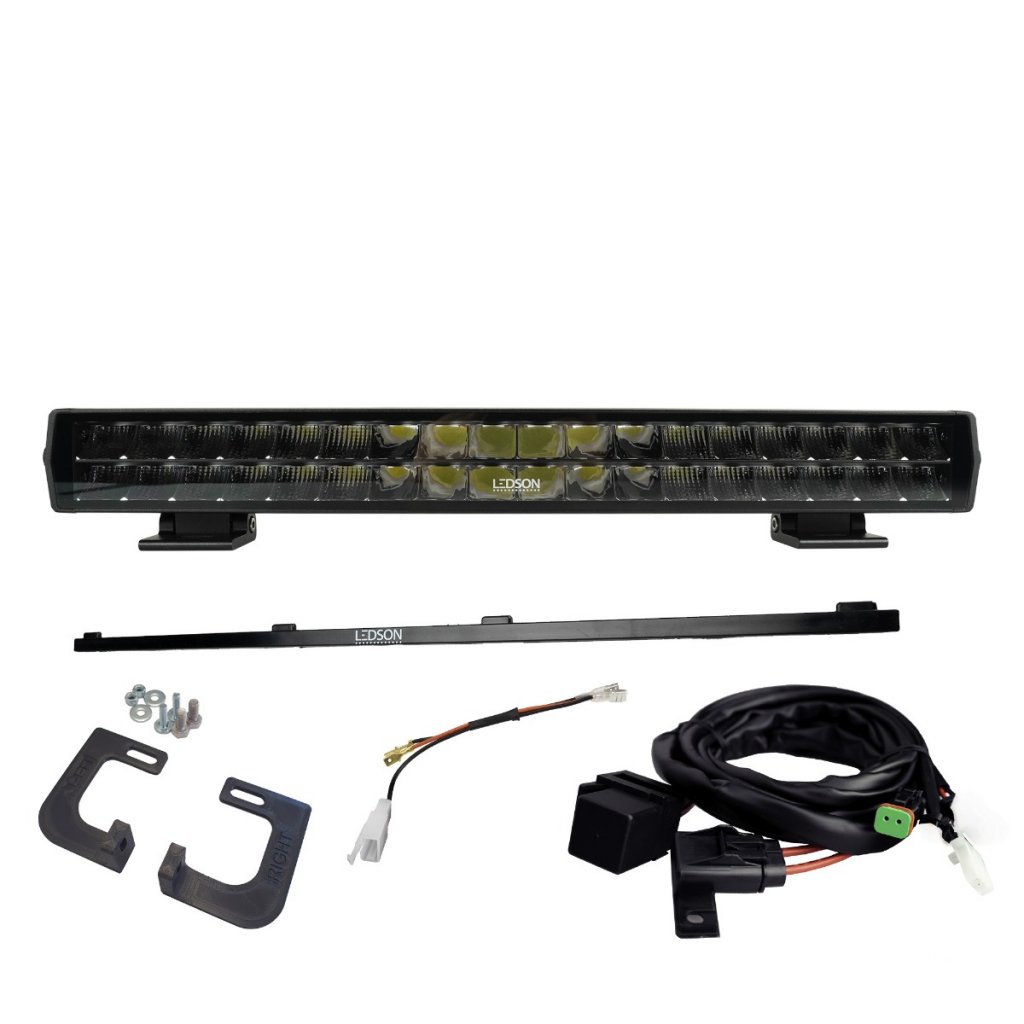

Complete kit with LEDSON Alfa led frame, model-adapted brackets and wiring harness for mounting in the grill of Toyota Proace from 2016 onwards.

Technical specifications:

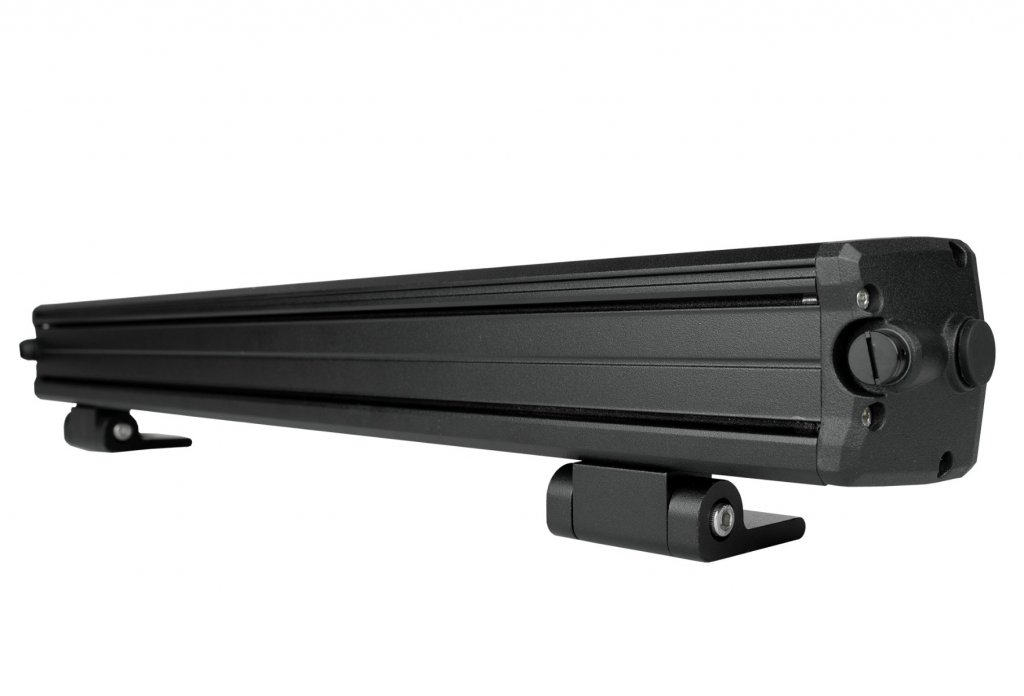

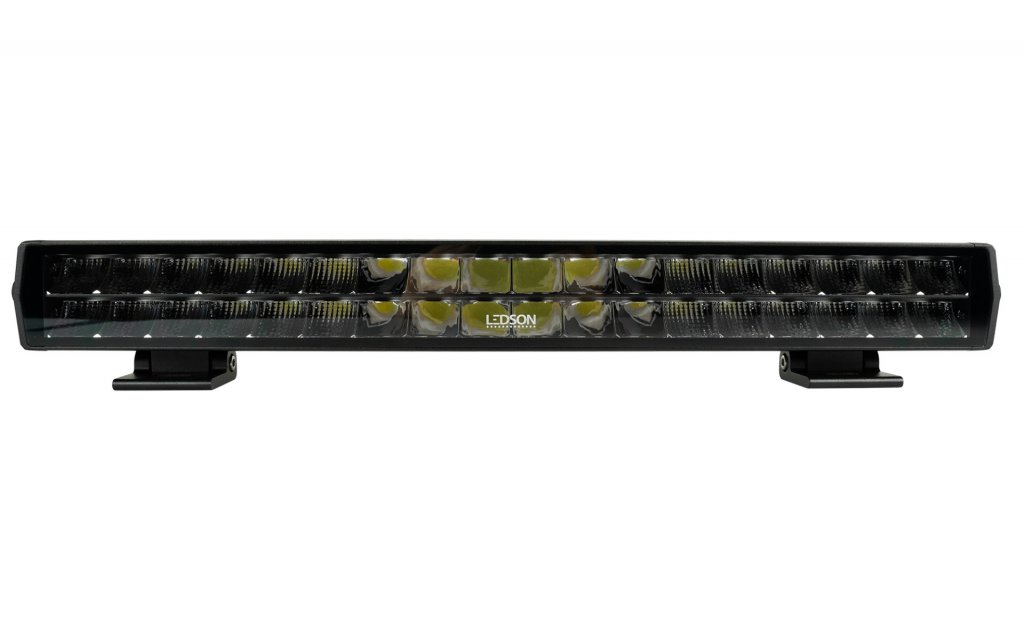

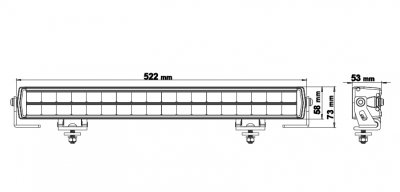

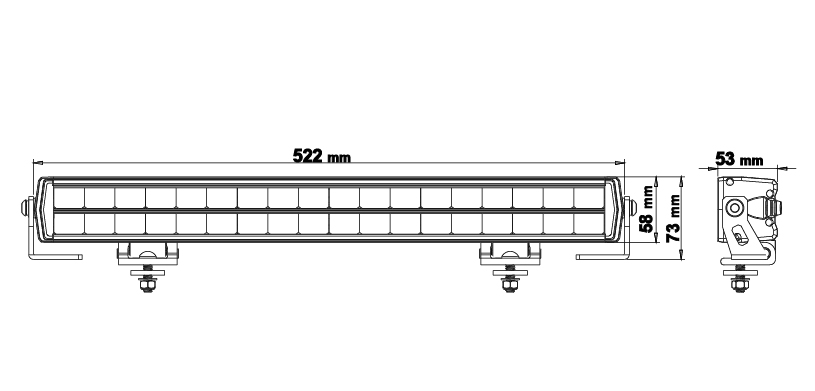

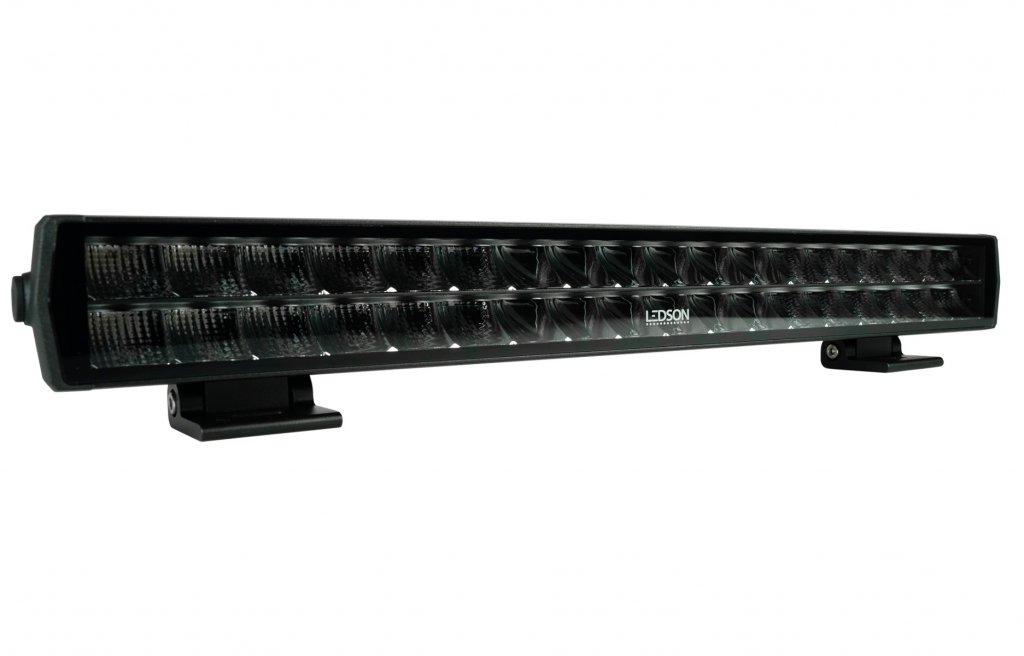

LEDSON Alfa.

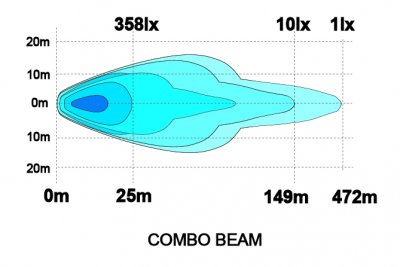

Combo Beam light pattern (wide and oblong)
E-marked ECE R112 (ref. 50)
ECE R10 (EMC-rated)
Range: 472 m (1 lux)
Lumen: 16200 lm (theoretical), 13700 lm (actual)
Color temperature 6000K (cool white)
Dual mounting options
180 W (36 x 5 W LP LED)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
DT connector (included)
Voltage: 9-36V

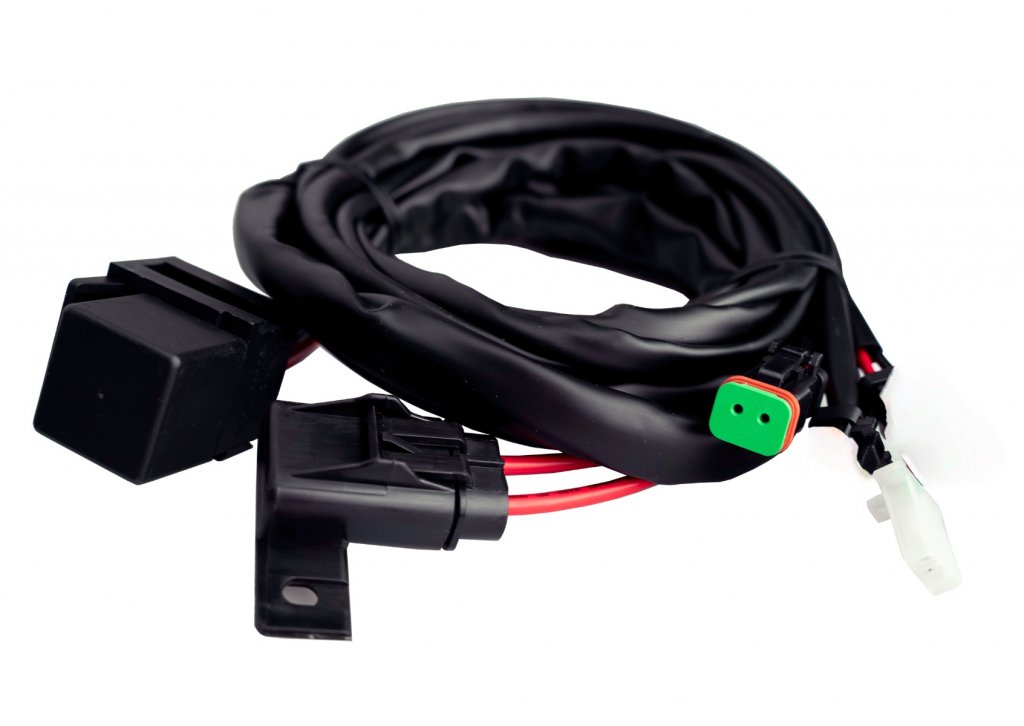

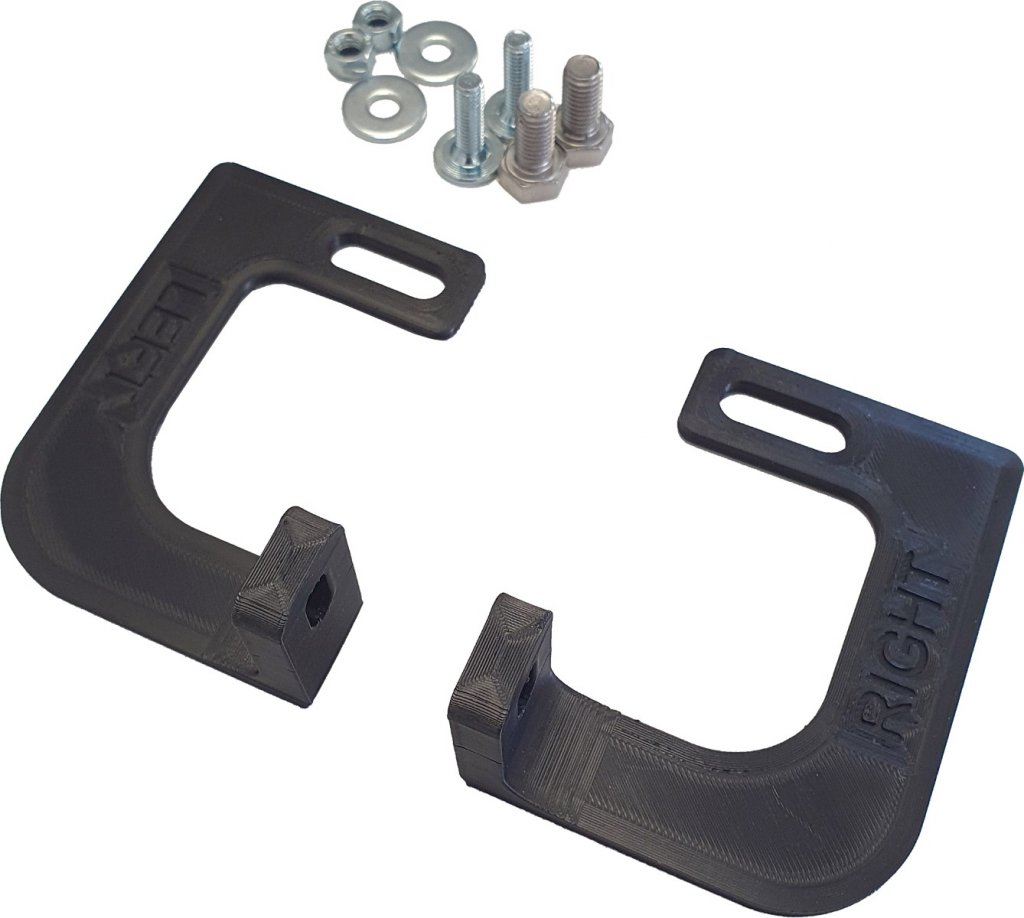

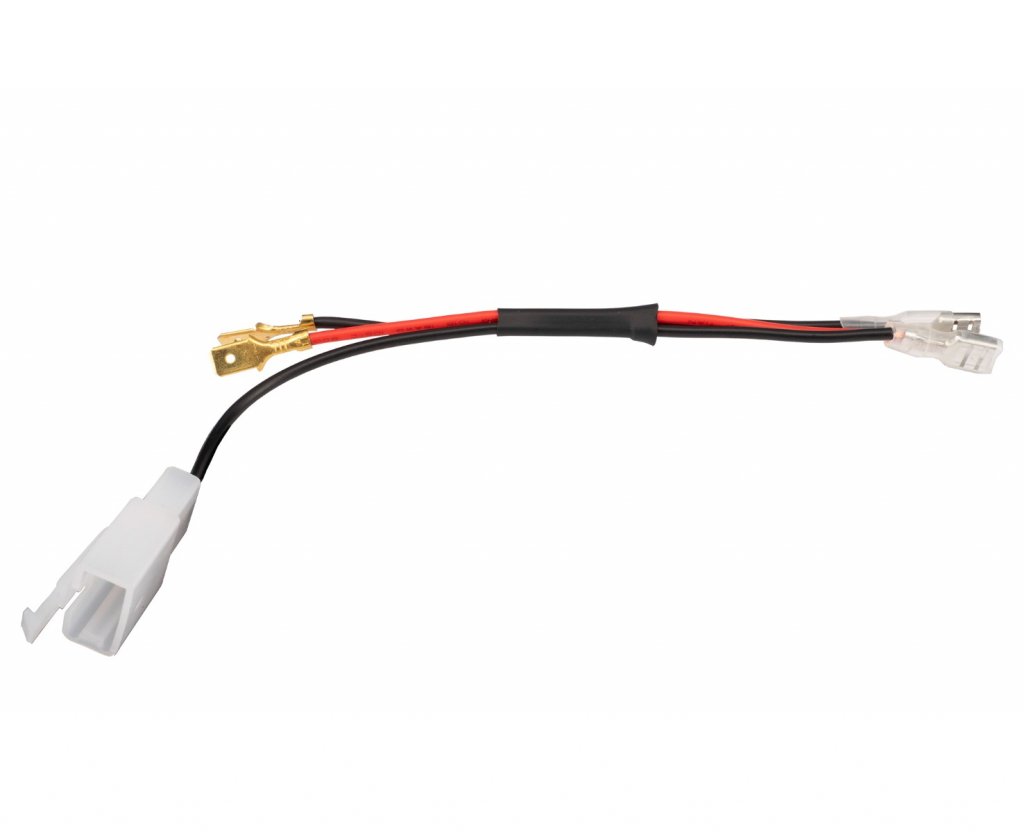

The complete package includes bracket, led frame, dedicated led frame, relay kit and connection cable for connection to the car's electrical system. NOTE! Cars equipped with xenon or LED headlights may need a CANBUS interpreter in the form of an XBB or similar to read the high beam signal. These are sold separately.

This product is suitable for the following car models:

Toyota Proace from 2016-
From model year 2016 onwards

Documents:
attachment

Mounting instructions for the LED ramp kit 1540-3400
