Extra light package Lazer Toyota Hilux 2021-

Item ID: 7032-832

€711

Incl. VAT

Which LED light bar do you want?

Lazer Linear 6 - 4500 lumen

7032-832

€711

Available in external warehouse | Shipped within 1-4 business days

Lazer Linear 6 Elite - 8100 lumen

7032-832E

€886

Available in external warehouse | Shipped within 1-4 business days

Assembly parts only

7032-831M

€175

Available in external warehouse | Shipped within 1-4 business days

Available

Available in external warehouse | Shipped within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 1-4 business days

Product Description:

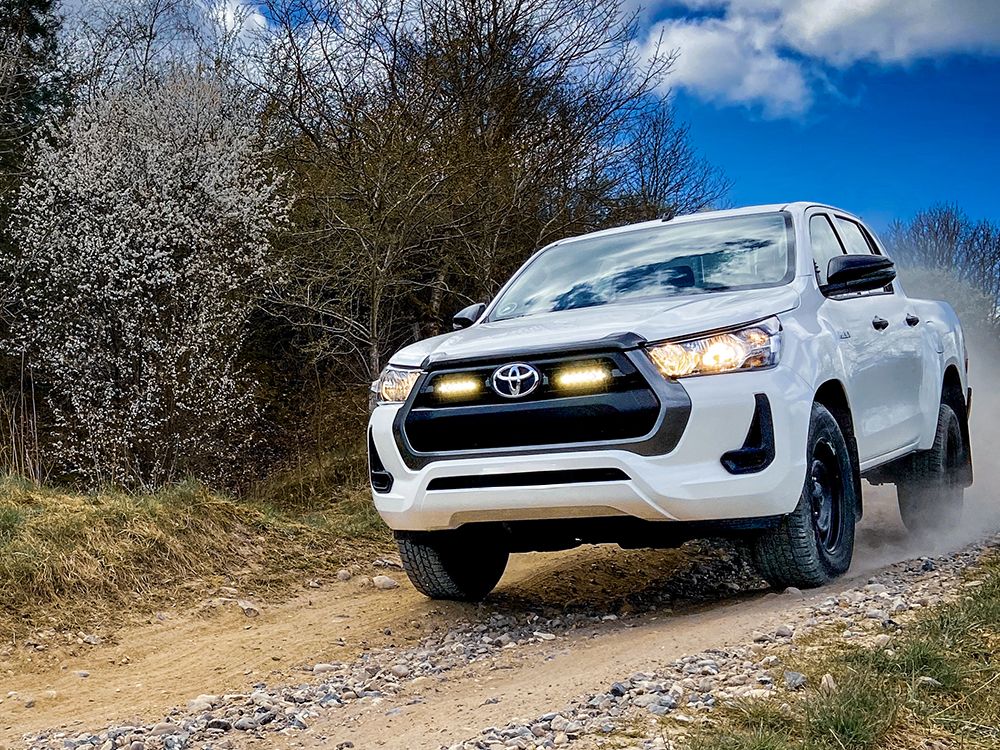

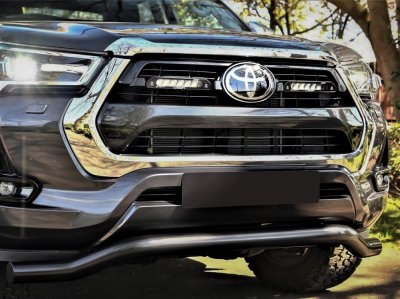

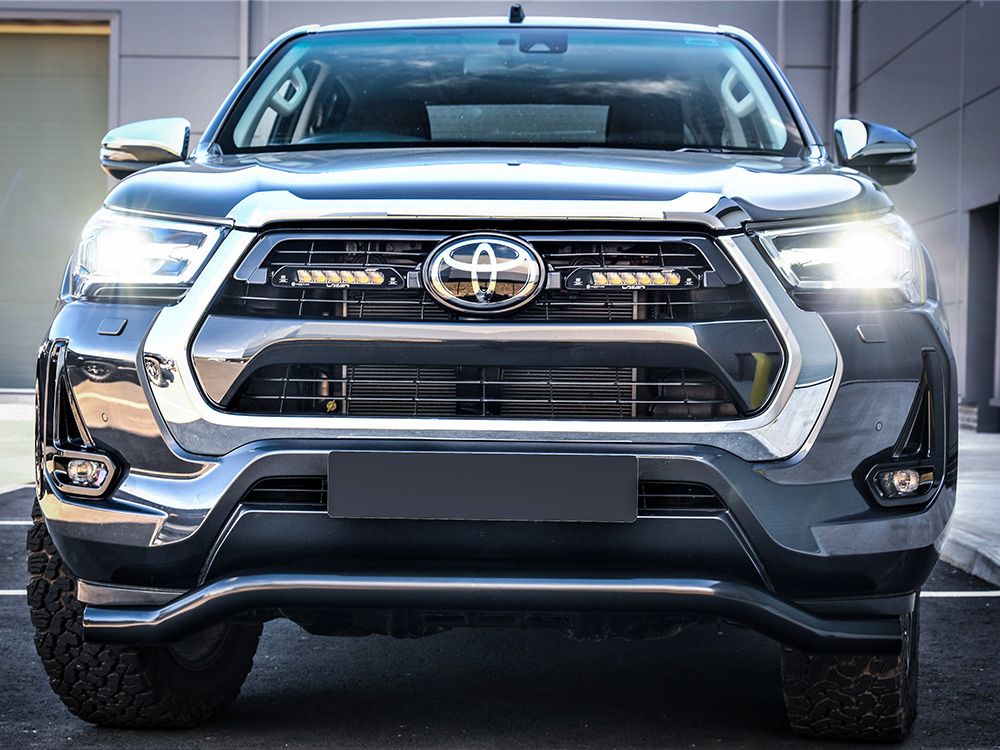

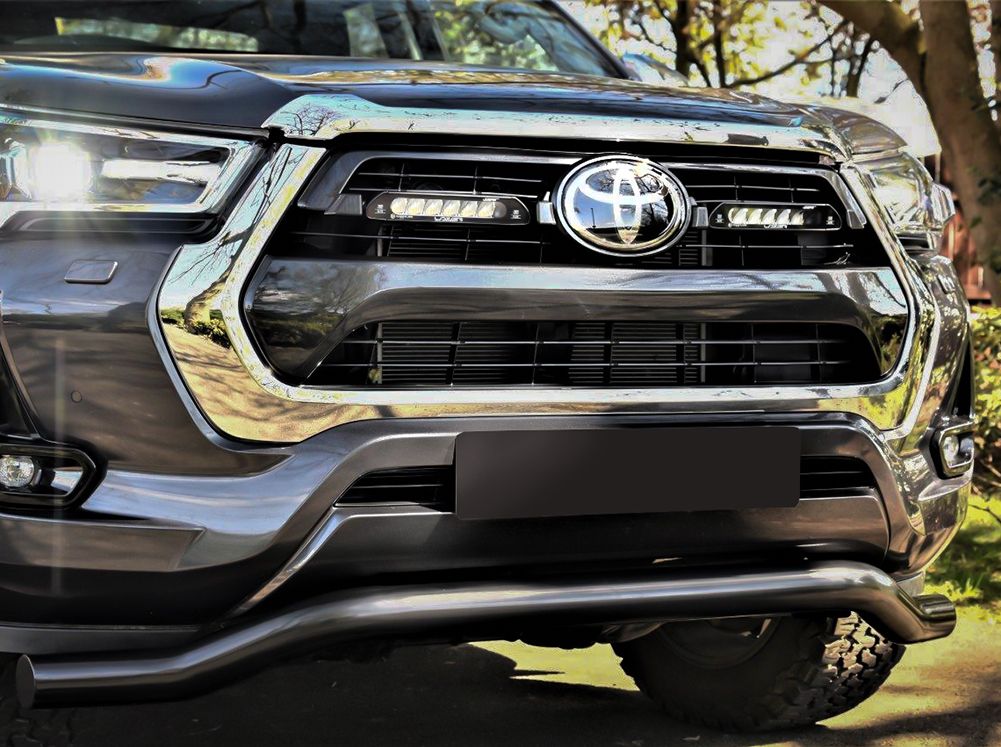

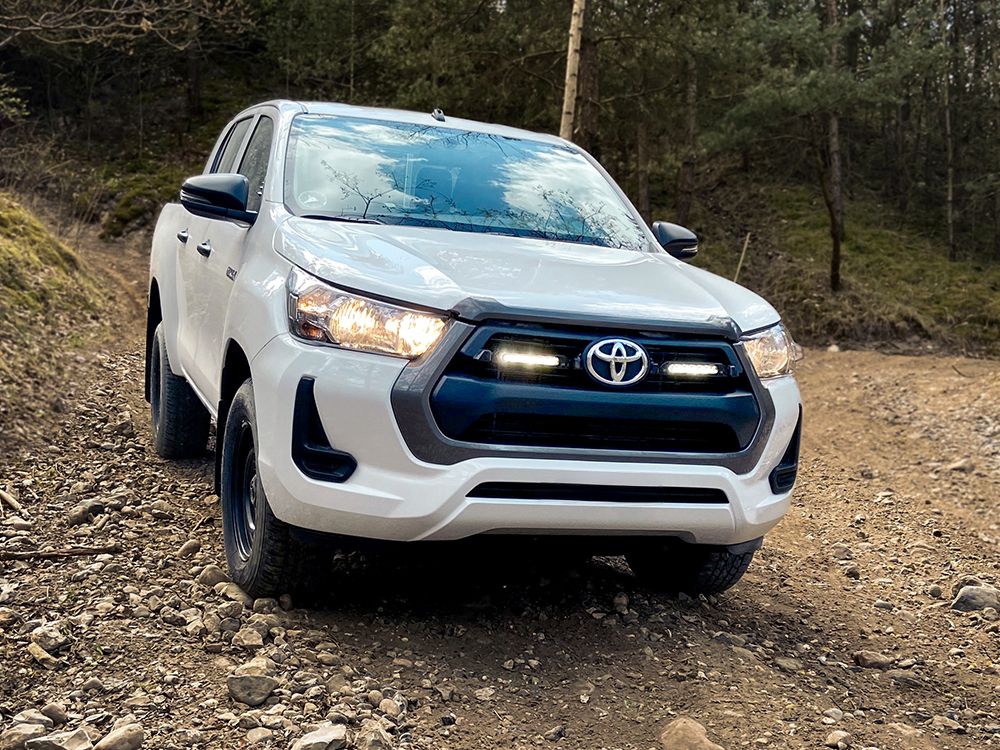

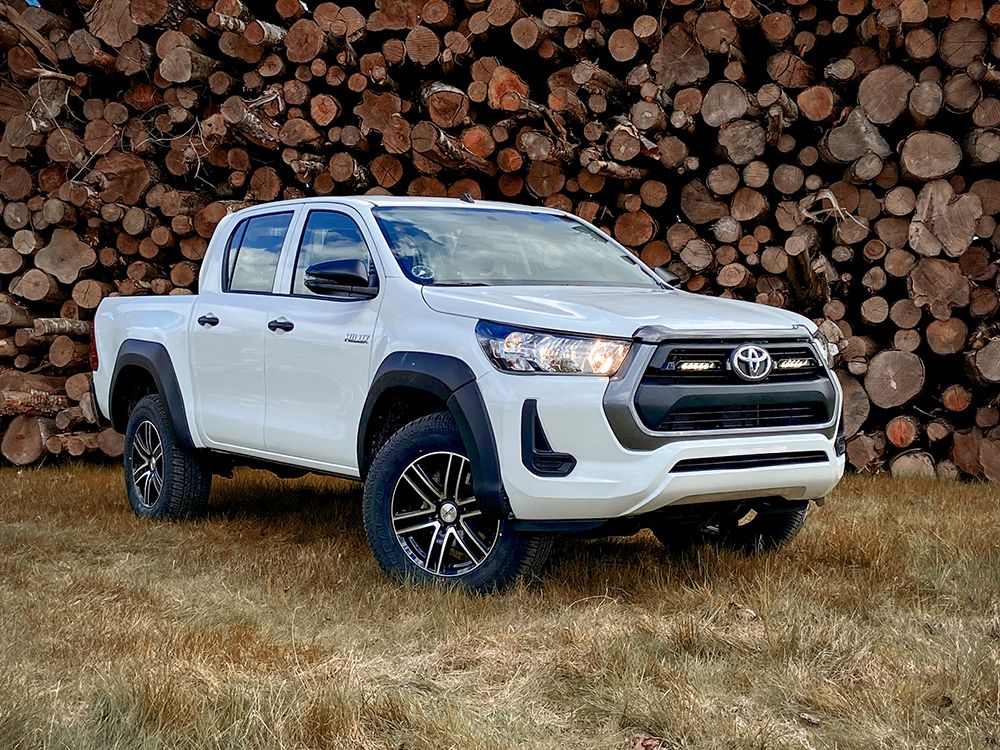

Complete auxiliary light package containing everything you need for installation in the upper grill of Toyota Hilux Legend / Hero from 2021 onwards.

Complete extra light package Lazer Toyota Hilux containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Linear 6. You choose whether you want the Lazer Linear 6, or the Elite model for longer range and increased power.

Extra light package Lazer Toyota Hilux

Linear 6	Standard	Elite
Voltage range	10-32V	10-32V
Luminous flux	4500 lm	8100 lm
Color temperature	5000 K	5000 K
Number of LEDs	2 x 6 pcs	2 x 12 pcs
Position light	No, no, no	No, no, no
Power output	42 W	84 W
Load (at 14.4V)	2,92 A	5,8 A
Certification
Reference number	2 x 12,5	2 x 17,5
Bright light	ECE R112	ECE R112
Luminous flux

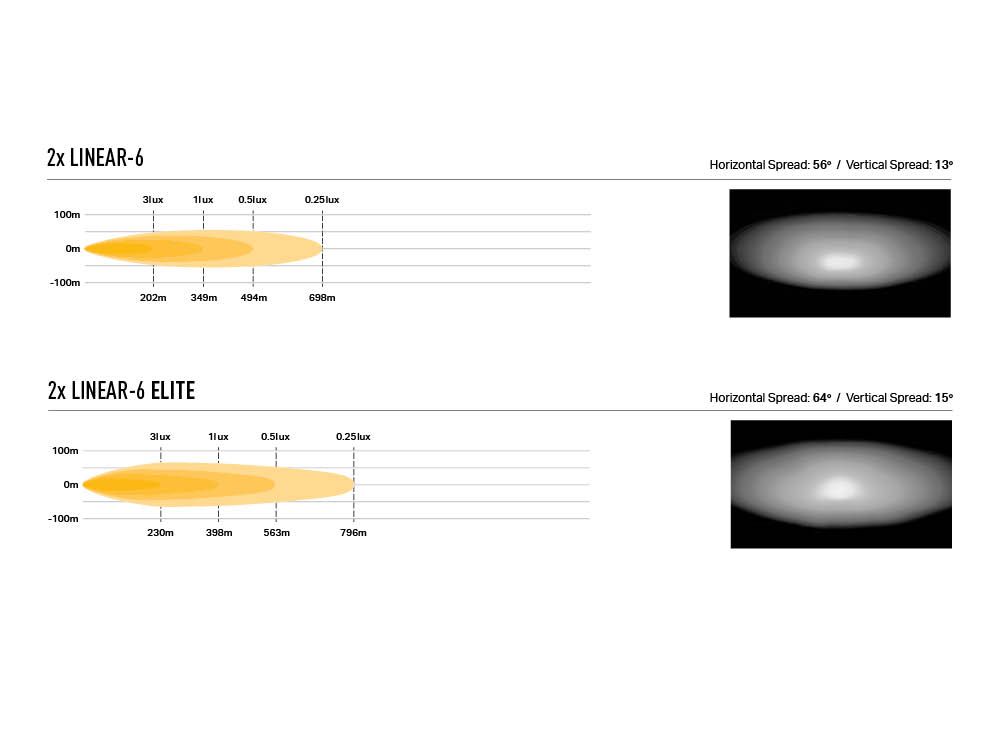

Light angle horizontal	56 degrees	64 degrees

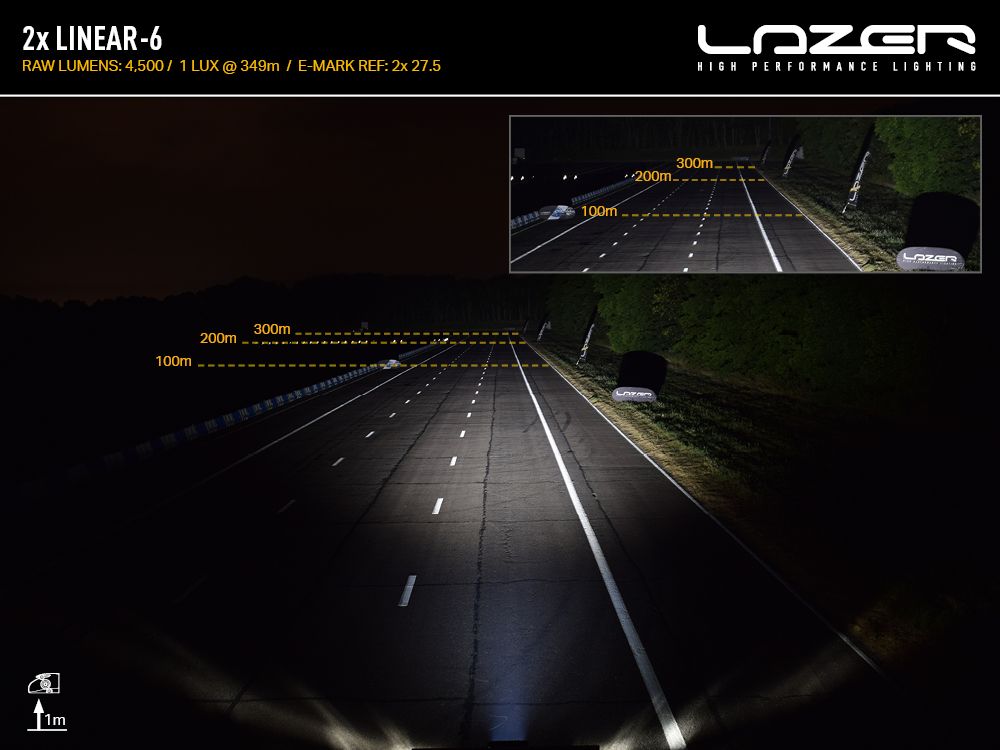

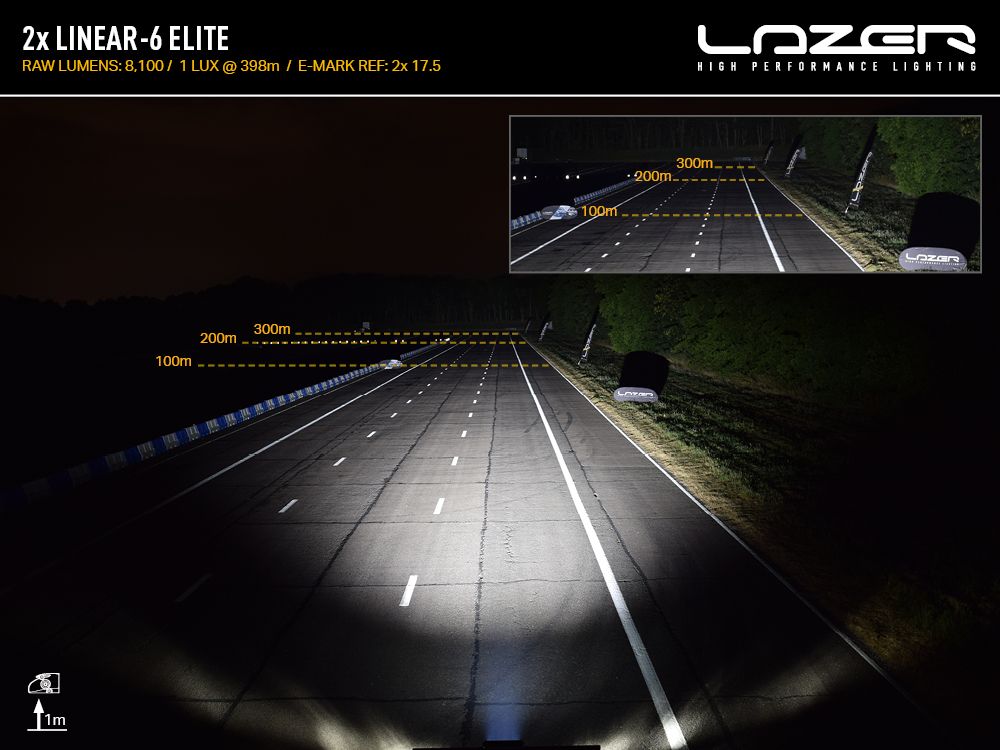

Range (1 lux)	349 meters	398 meters
Range (0.25 lux)	698 meters	796 meters

Installation

Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

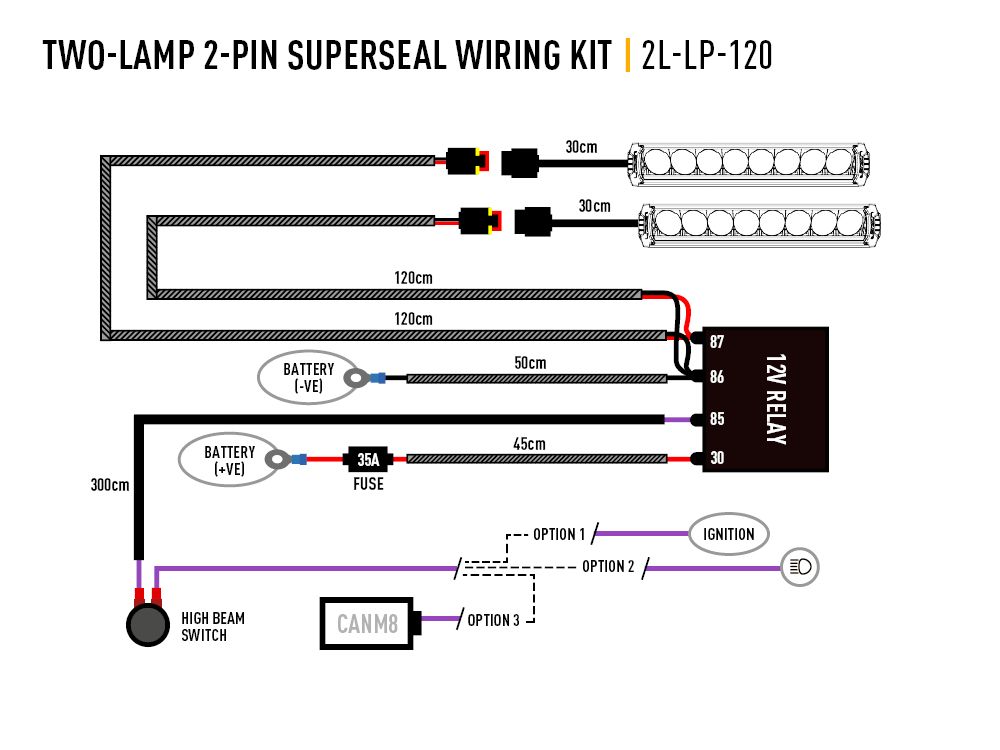

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included with the kit, but is purchased separately.

What is included in the extra light kit Lazer Toyota Hilux

2 pcs Lazer Linear 6

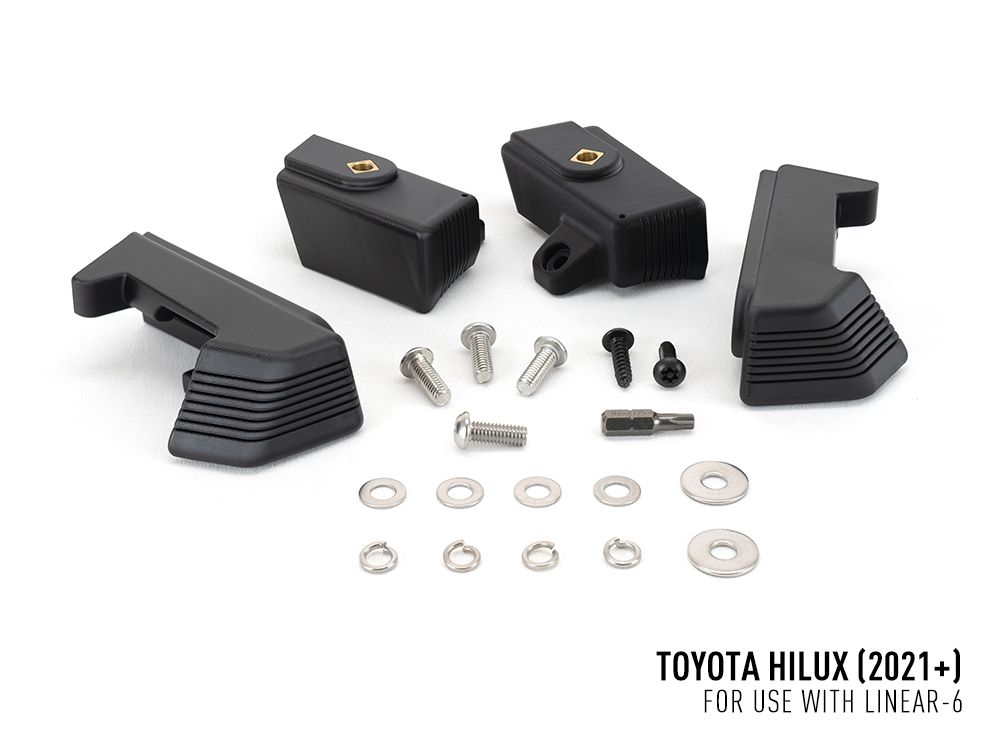

Mounting details
Relay kit
Mounting instructions

Extra light kit Lazer Toyota Hilux is delivered as a complete kit

Documents:
attachment

Mounting description for led light bar 7032-832
