Extra light package Lazer LED ramp kit for Toyota Hilux Invincible from 2016-2020

Extra light package Lazer Toyota Hilux 2016-2021

Item ID: 7023-834

€844

Incl. VAT

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

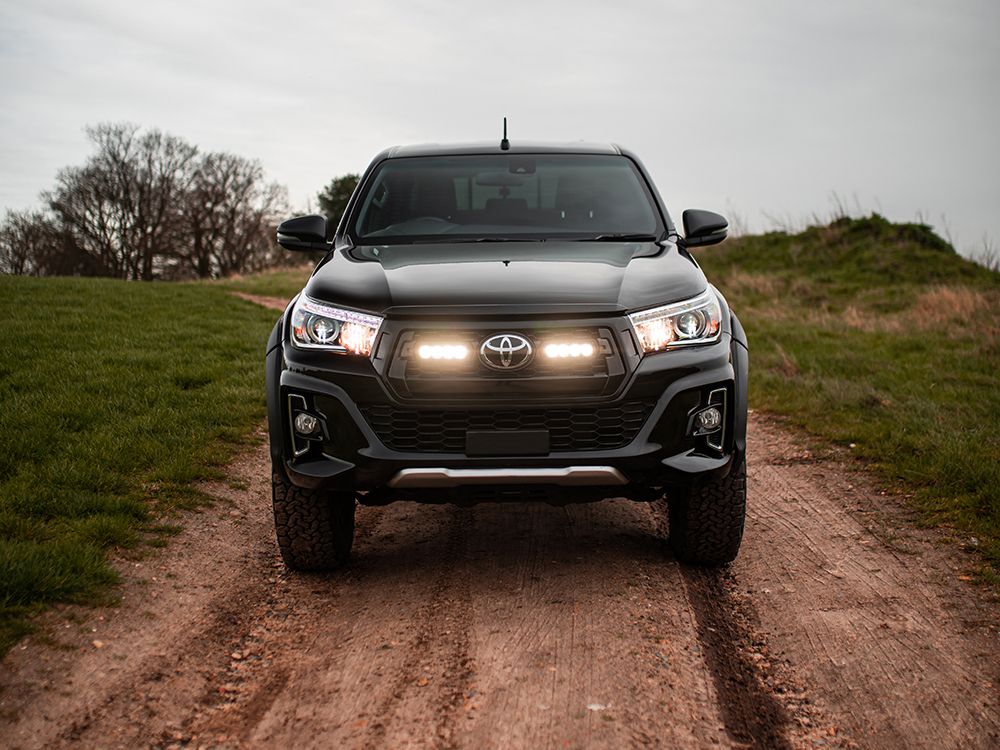

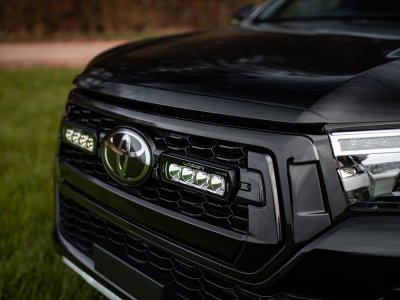

Complete auxiliary light kit containing everything you need for installation in the upper grill of Toyota Hilux Invincible from 2016-2020.

Complete extra light package Lazer Toyota Hilux containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps ST4 Evolution.

Extra light package Lazer Toyota Hilux

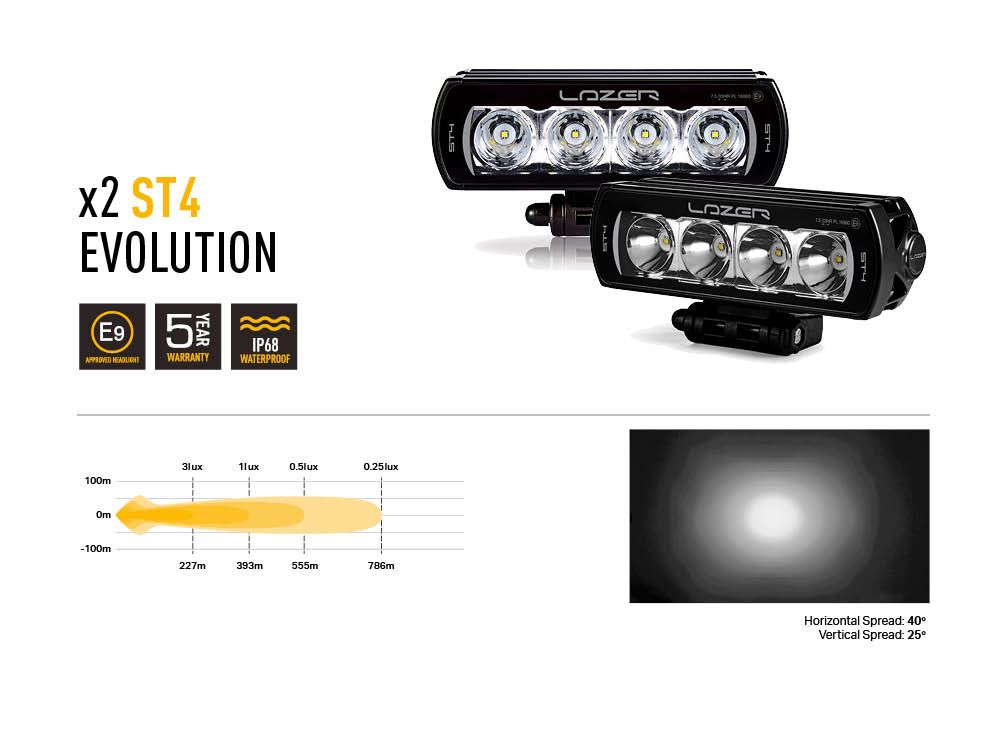

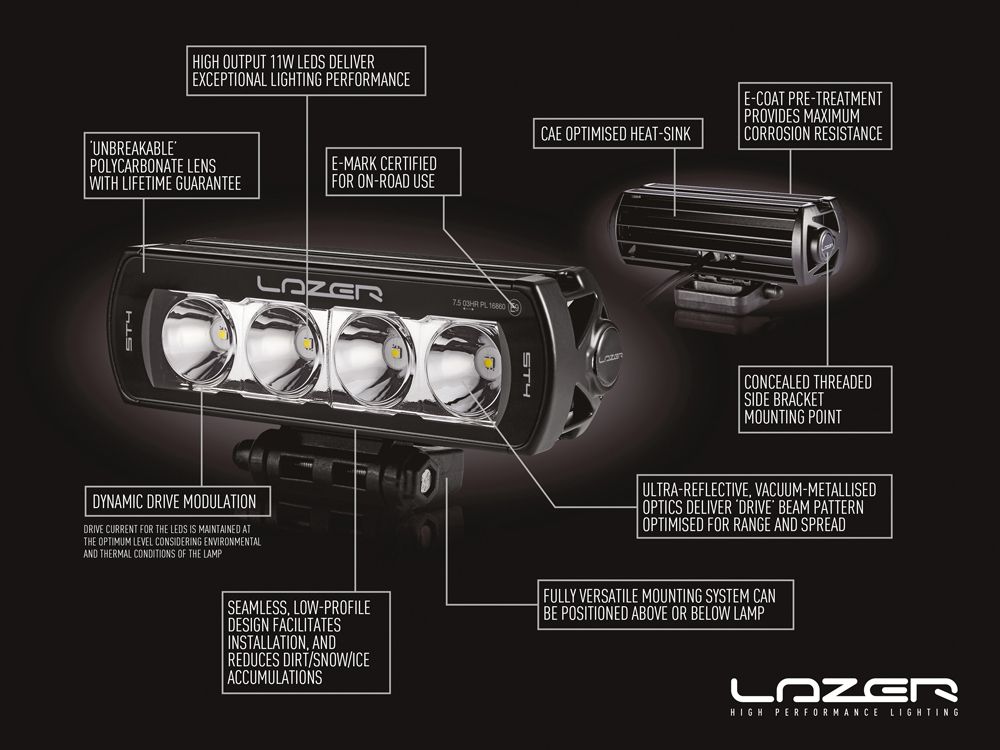

ST4 Evolution
Voltage range	10-32V
Luminous flux	8272 lm
Color temperature	5000 K
Number of LEDs	2 x 4 pcs
Position light	Not available
Power output	94 W
Load (at 14.4V)	6,6 A
Certification
High beam	ECE R112
Luminous flux
Horizontal light angle	40 degrees

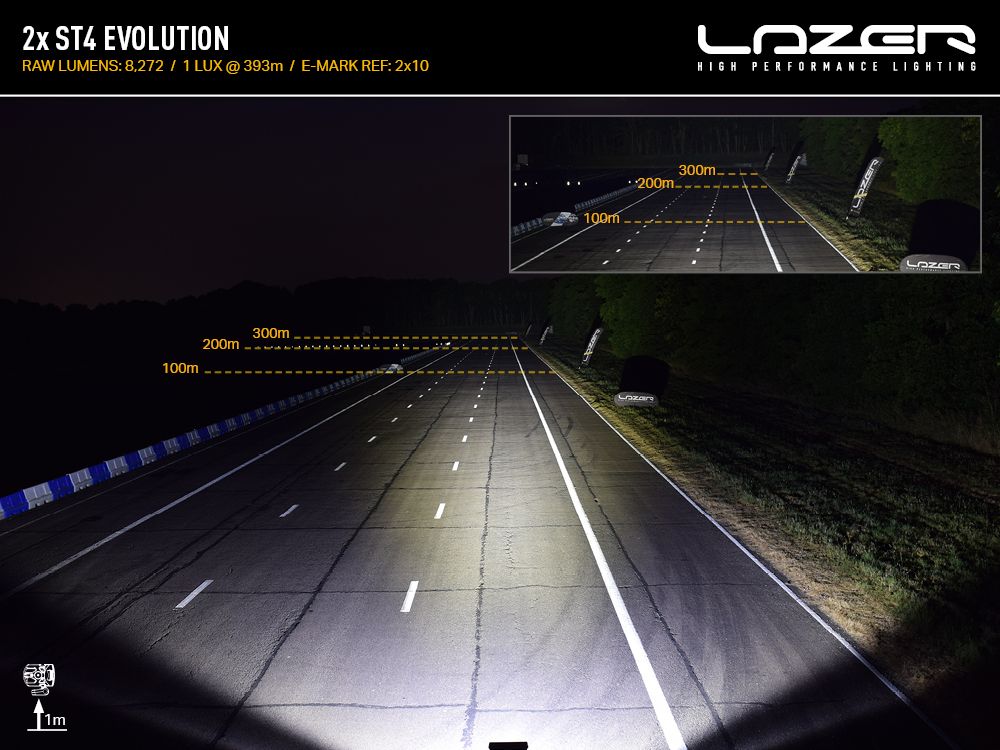

Range (1 lux)	393 meters
Range (0.25 lux)	876 meters

Installation

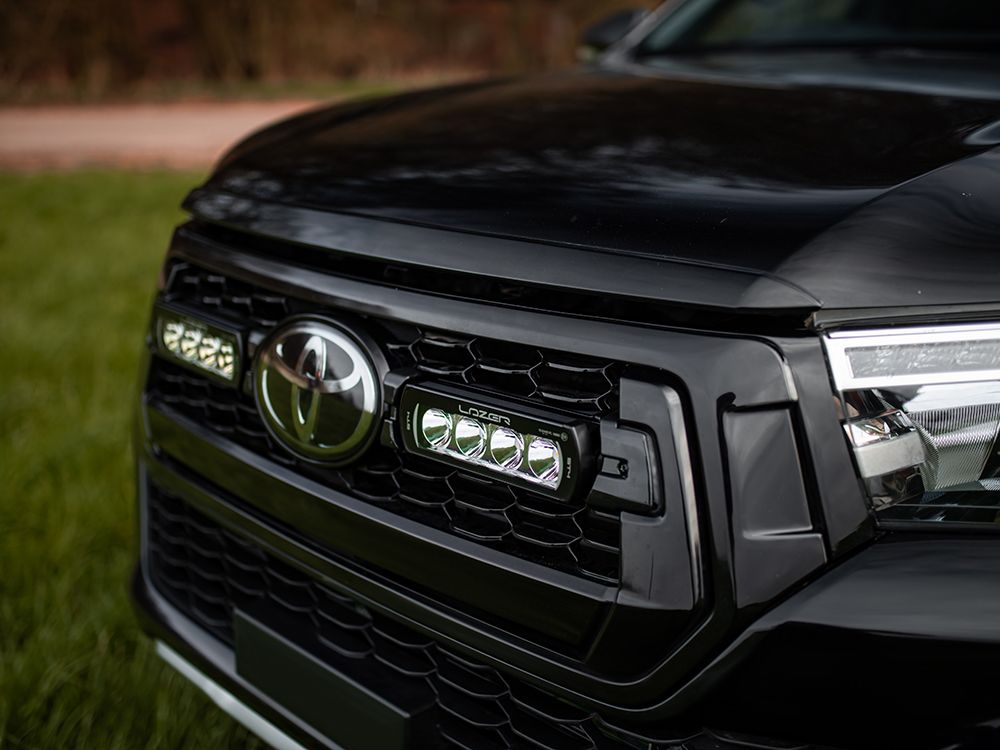

Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

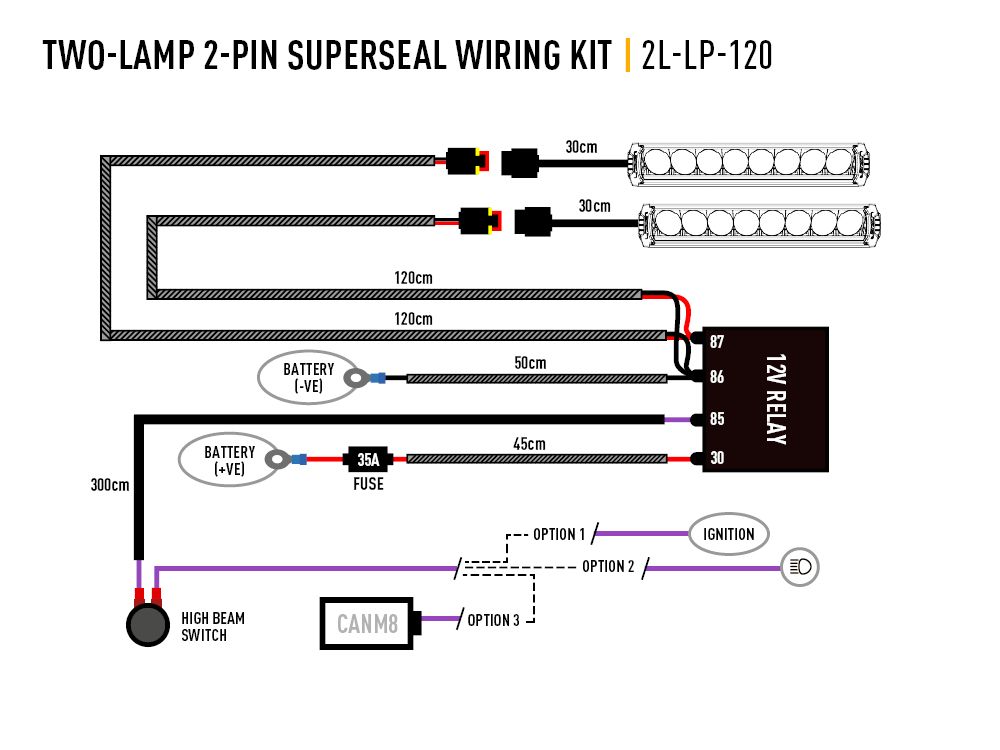

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.

What is included in the Lazer Toyota Hilux auxiliary light kit

2 pcs Lazer ST4 Evolution

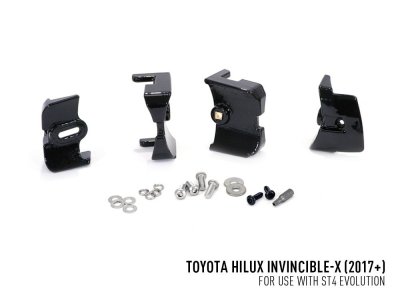

Mounting parts

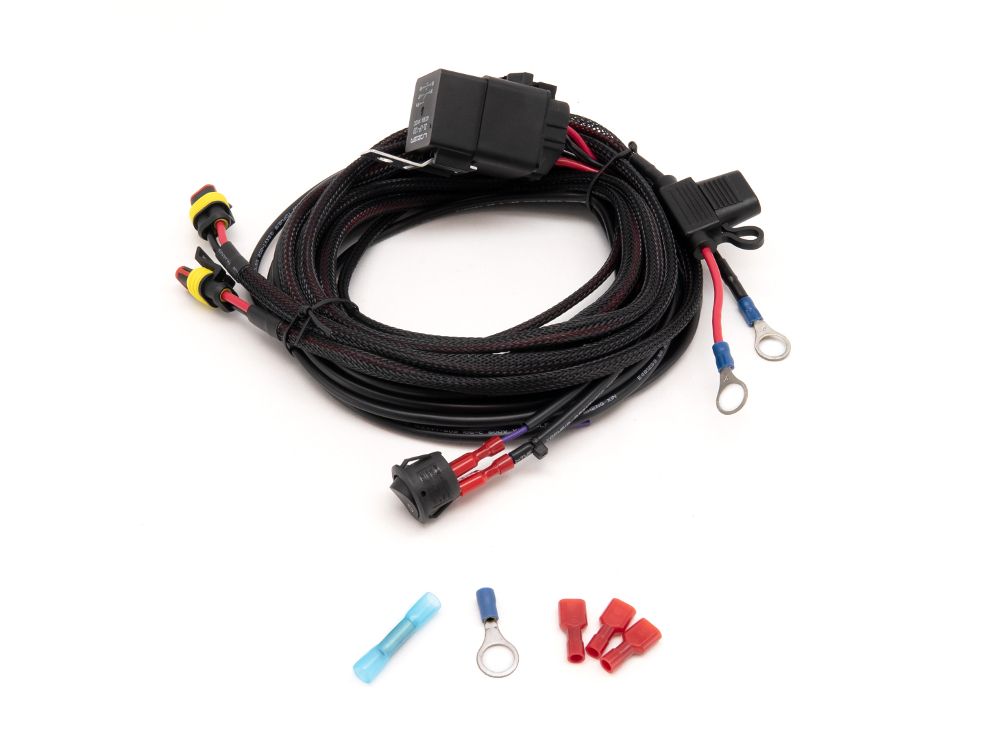

Relay kit
Mounting instructions

Extra light kit Lazer Toyota Hilux is delivered as a complete kit

Documents:
attachment

Mounting description for led light bar 7023-834
