Rearview camera that replaces the 3rd brake light on Peugeot Partner from model years 2008-2018 and 2019 onwards. A model-adapted rearview camera designed for our tough Nordic conditions with very clear and detailed image reproduction.

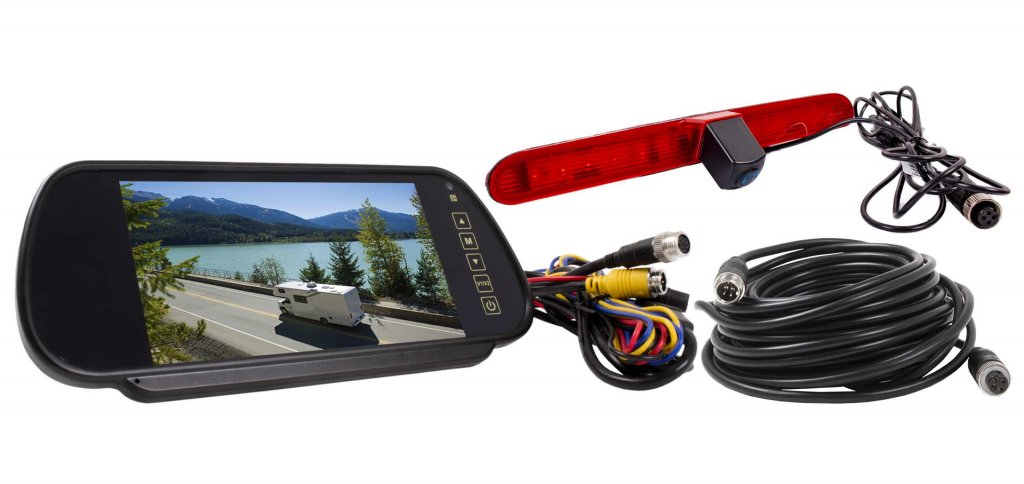

If you want to buy an external screen, there is a 7 "rearview mirror screen (hung over the existing rearview mirror) to choose from the drop-down list above.

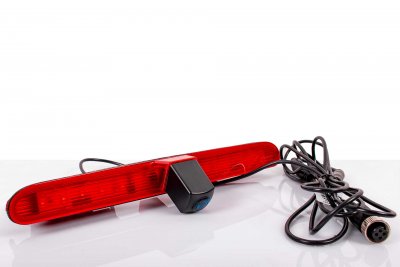

Rear view camera Partner
Simple and neat installation as the 3rd brake light is replaced with this module. Brake light and camera combined for mounting in Peugeot Partner.
Specifications rear view camera:
- Voltage range: 12 V (12-24 V when connected to monitor)
- Wide angle: 120 degrees
- Brightness: f/2.8
- Image sensor: 1/3" CMOS
- IR technology: Yes
- Protection class: IP69K
- Vibration resistance: 10 G

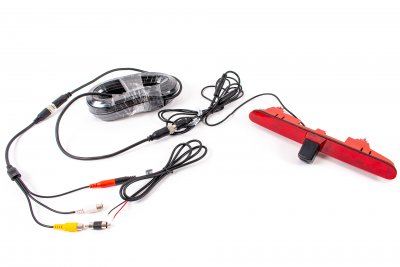

- When purchasing the rear view camera only, 10 meters of cable with 4-pin connector and a transition for RCA connection are included.
- For cars with sensitive electrical systems, a power supply may be required.
Our external monitors are very well suited for professional use. Suitable for most types of industries and installed with advantage in transportation vehicles. The LCD screen provides a detailed image and has a fast response time.
Specifications screens:
- Screen type: Digital TFT-LCD color monitor
- Connection: 4-pin/4-pin
- Voltage range: 10-32 V
- Camera connections: 2 pcs
- Dimensions incl. bracket (7" rear view mirror): W 249 mm x H 108 mm x D 39 mm
- Temperature range: -20 to +60 degrees
- Trigger control: Yes
- Remote control: Yes
Rearview mirror screen: Fastening is done using spring-loaded gripping claws around the existing rearview mirror. If there is no existing rearview mirror, there is a mounting bracket VN-162 at the bottom of the page.
Supplied as a complete kit.
This product is suitable for the following car models:
Peugeot Partner from 2019-
Model years from 2019 onwards

Peugeot Partner from 2008-2018
2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
