Extra light package Lazer LED ramp kit for Mercedes X-Class V6 from 2017-2020

Extra light package Lazer Mercedes X-Class V6

Item ID: 4740-832

€841

Incl. VAT

Available

Made to order | ~4-8 weeks delivery time

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | ~4-8 weeks delivery time

Product Description:

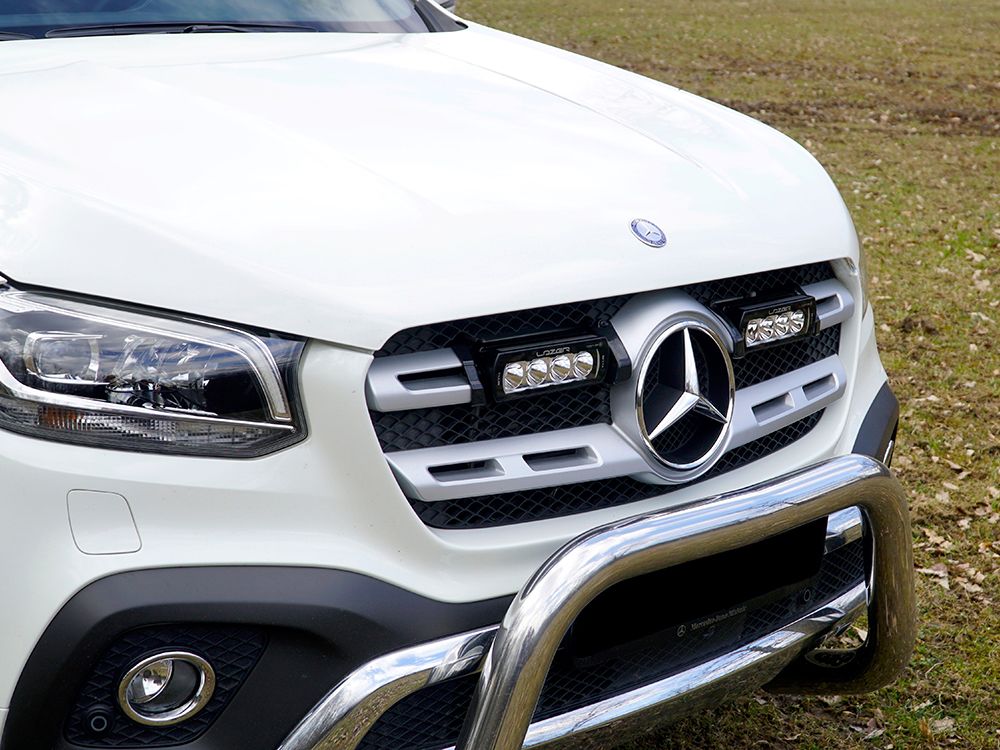

Complete auxiliary light kit containing everything you need for installation in the upper grill of the Mercedes X-Class V6 from 2017-2020.

Complete extra light kit Lazer Mercedes X-class containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps ST4 Evolution.

Extra light package Lazer Mercedes X-Class

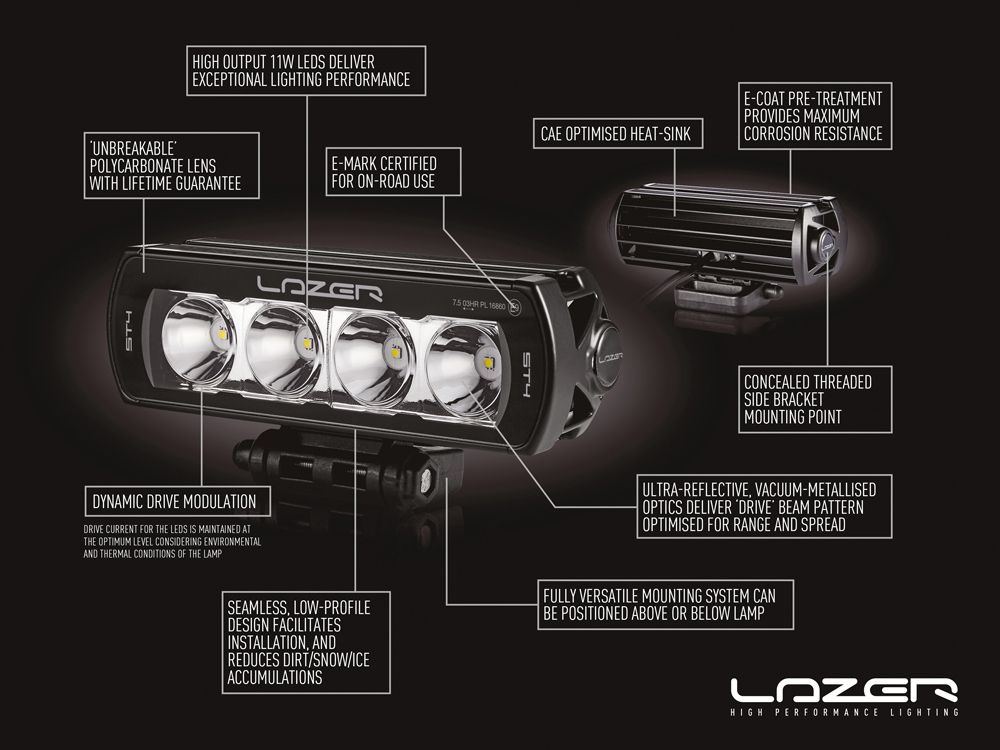

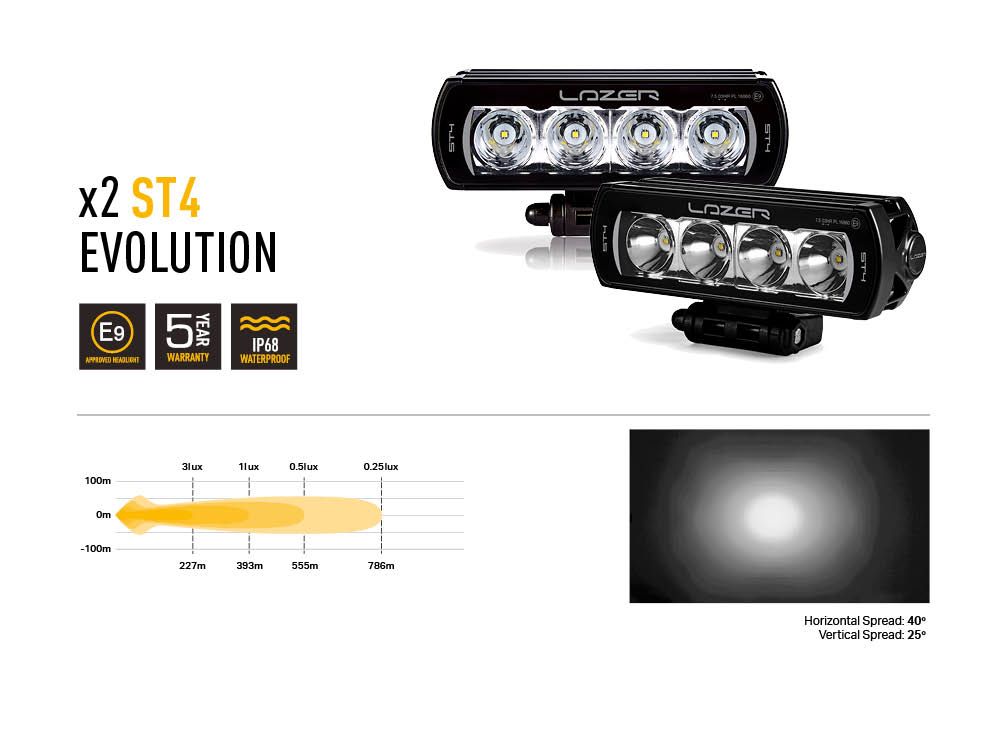

ST4 Evolution
Voltage range	10-32V
Luminous flux	8272 lm
Color temperature	5000 K
Number of LEDs	2 x 4 pcs
Position light	Not available
Power output	94 W
Load (at 14.4V)	6,6 A
Certification
High beam	ECE R112
Luminous flux
Horizontal light angle	40 degrees
Range (1 lux)	393 meters
Range (0.25 lux)	876 meters

Installation

Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

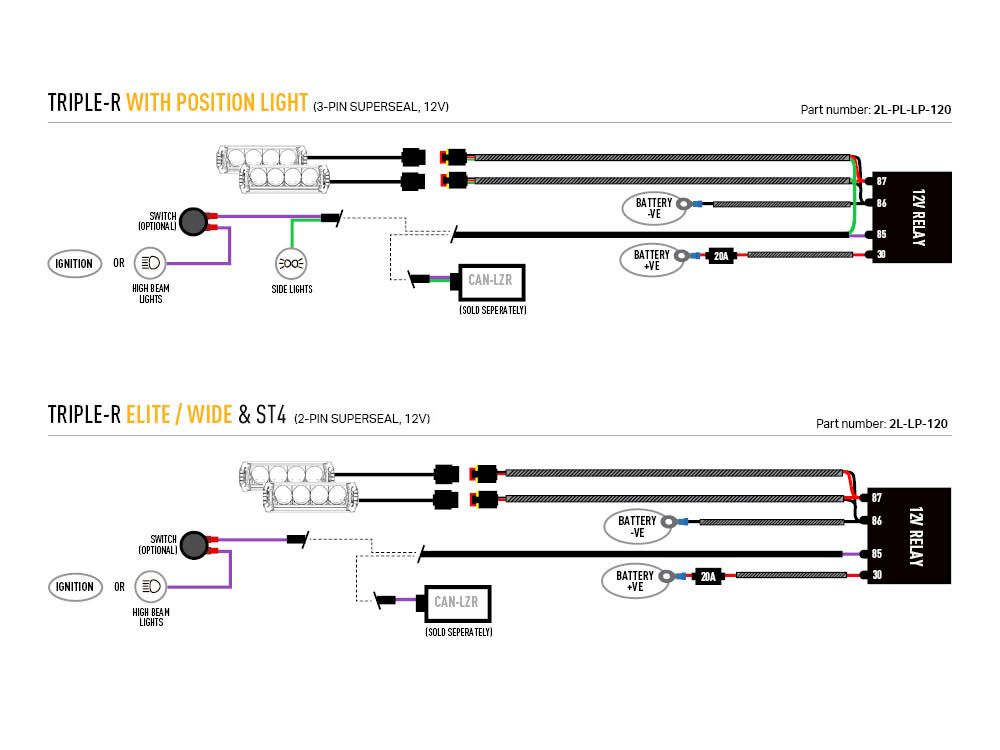

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included with the kit, but is purchased separately.

What is included in the Lazer Mercedes X-Class auxiliary light kit

2 pcs Lazer ST4 Evolution
Mounting details
Relay kit
Mounting instructions

The Lazer Mercedes X-Class extra light kit is delivered as a complete set

Documents:
attachment

Mounting description for led light bar 4740-832
