Product Description:

Complete auxiliary light kit containing everything you need for installation on Mercedes Vito from 2024 onwards.

Complete grille kit Lazer Mercedes Vito containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Triple-R 750. You choose whether you want the Lazer Triple-R 750, or the Elite model for longer range and increased power.

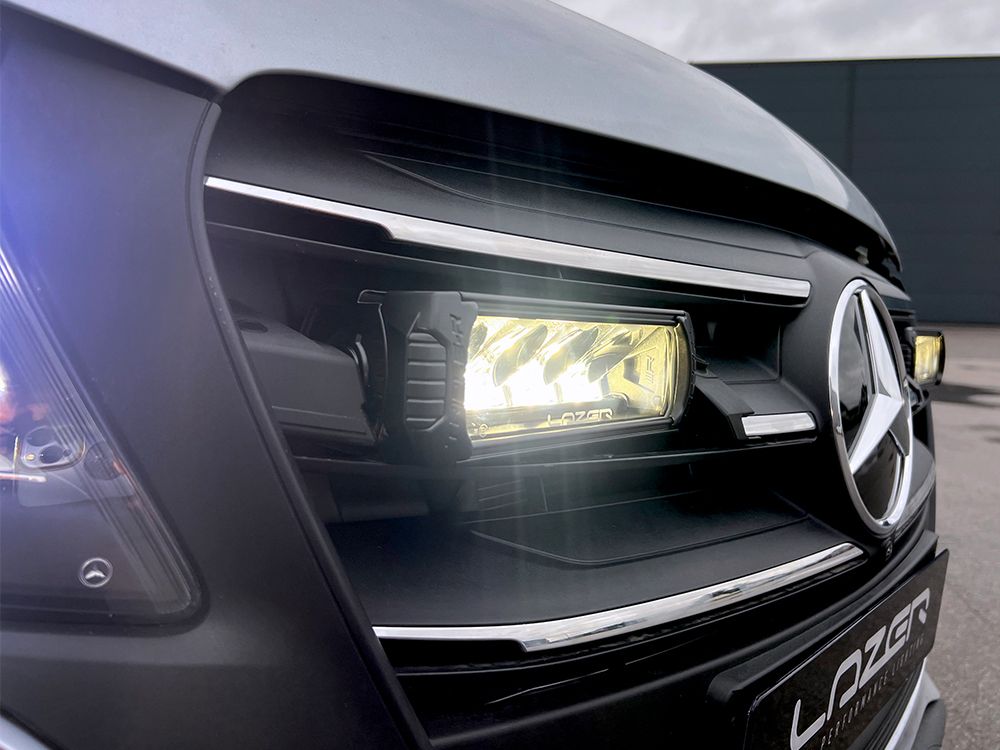

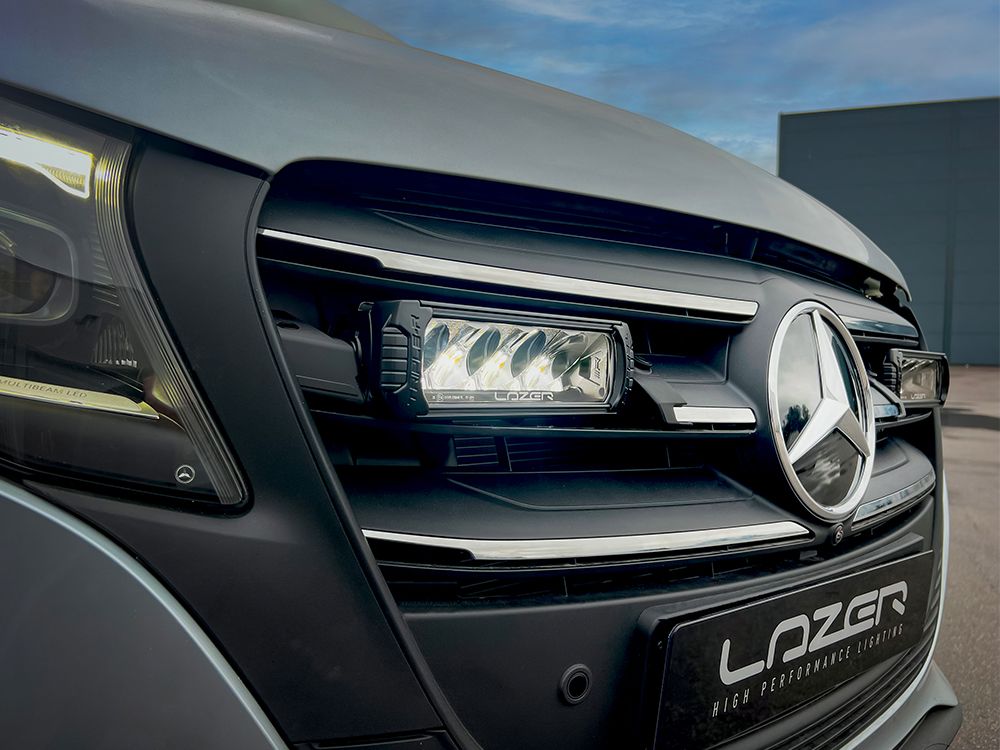

Grille kit Lazer Mercedes Vito

Triple-R 750 Gen2 Elite Gen2
Voltage range 10-32V 10-32V
Luminous flux 9240 lm 10136 lm
Color temperature 5000 K 5000 K
Number of LEDs 2 x 4 pcs 2 x 4 pcs
Position light Yes, White/Orange No
Power output 88 W 104 W
Load (at 14.4V) 6,2 A 7,2 A
Certification
Reference number 2 x 35

N/A

(2 x 12.5 E-marked mode)
High beam ECE R112 ECE R112
Position light (White) ECE R7 N/A
Luminous flux

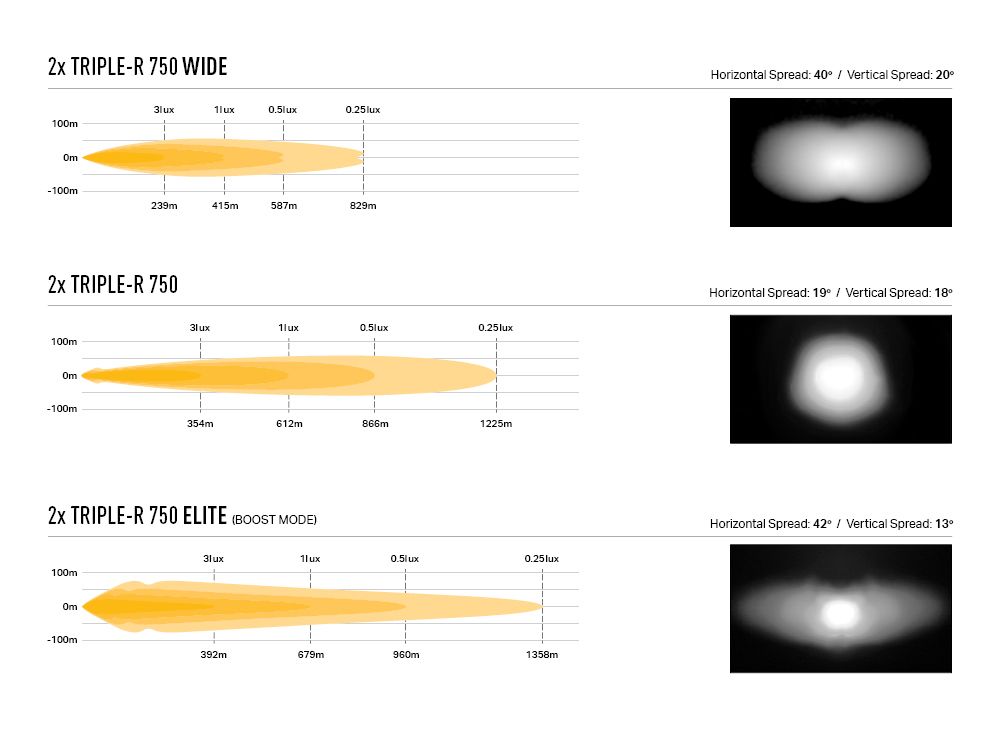

Horizontal light angle 19 degrees 42 degrees

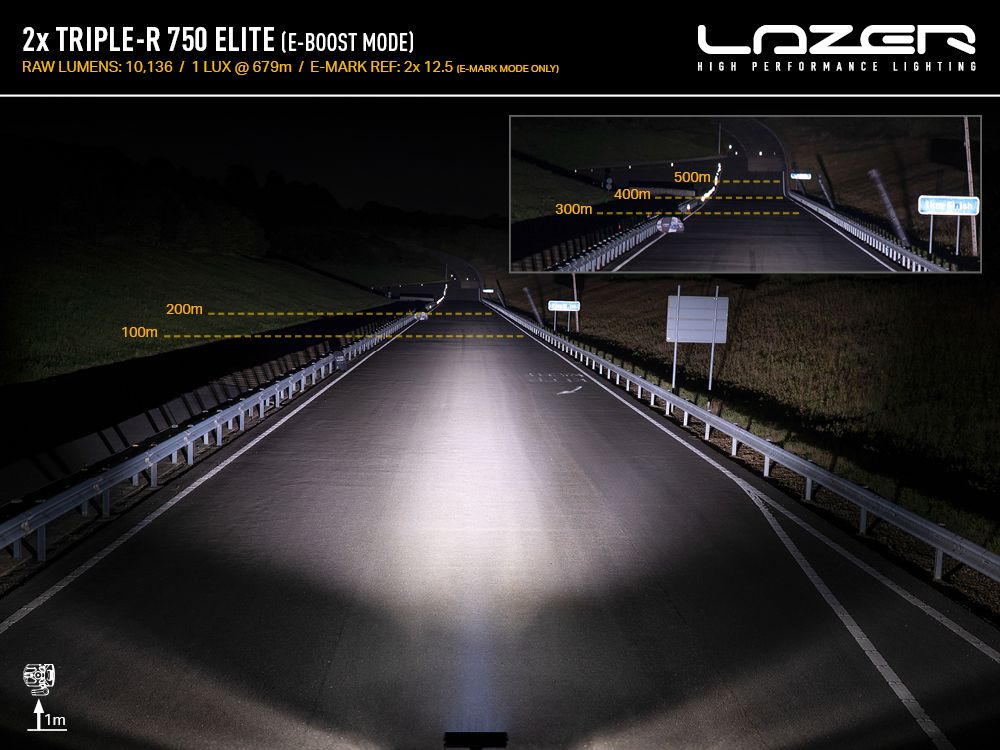

Range (1 lux) 612 meters 679 meters
Range (0.25 lux) 1225 meters 1358 meters

Installation
  • Installation requires damage to the grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

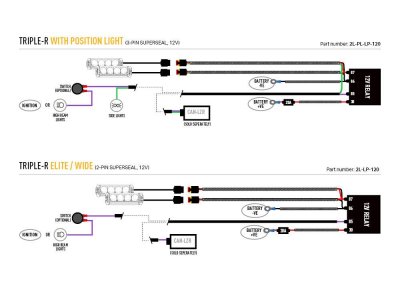

Wiring
  • Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included with the kit, but is purchased separately.
What is included in the Grill kit Lazer Mercedes Vito
  • 2 pcs Lazer Triple-R 750 Gen2

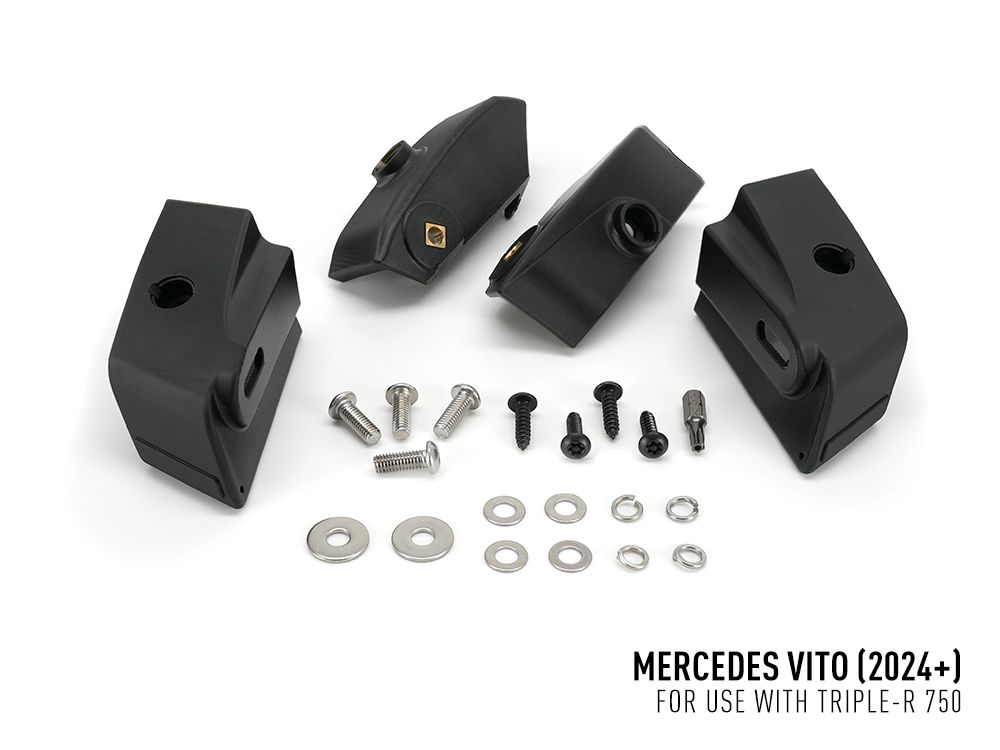

  • Mounting details
  • Relay kit
  • Mounting instructions

Grille kit Lazer Mercedes Vito is delivered as a complete kit


Documents:
attachment Assembly instructions for the Lazer 47023-830 auxiliary light kit


Engine:

  • Diesel
  • Electric

Body Type:

  • Van
