Lazer Grille kit Linear 6 for Isuzu D-Max from 2024-

Grille kit Lazer Isuzu D-Max 2024-

Item ID: 37006-830

€709

Incl. VAT

Which variant do you want?

Linear 6

37006-830

€709

Available in external warehouse | Dispatched within 1-4 working days

Linear 6 Elite

37006-830E

€884

Available in external warehouse | Dispatched within 1-4 working days

Linear 6 Elite+

37006-830EP

€1 117

Available in external warehouse | Dispatched within 1-4 working days

Available

Available in external warehouse | Dispatched within 1-4 working days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days

Product Description:

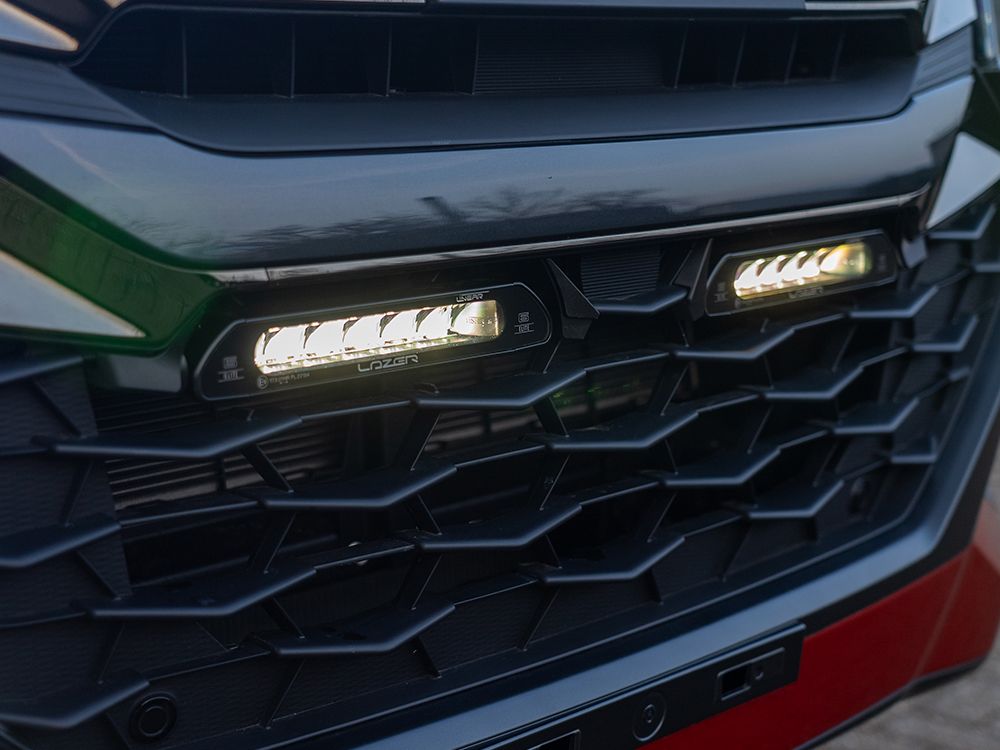

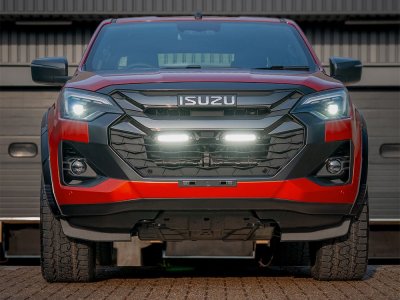

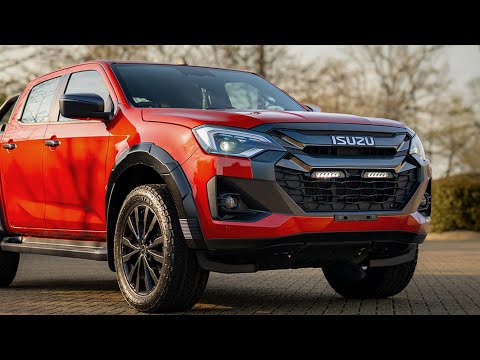

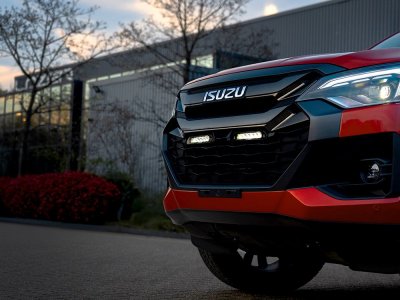

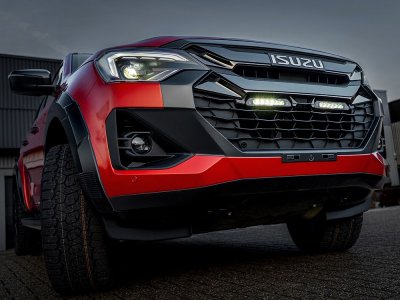

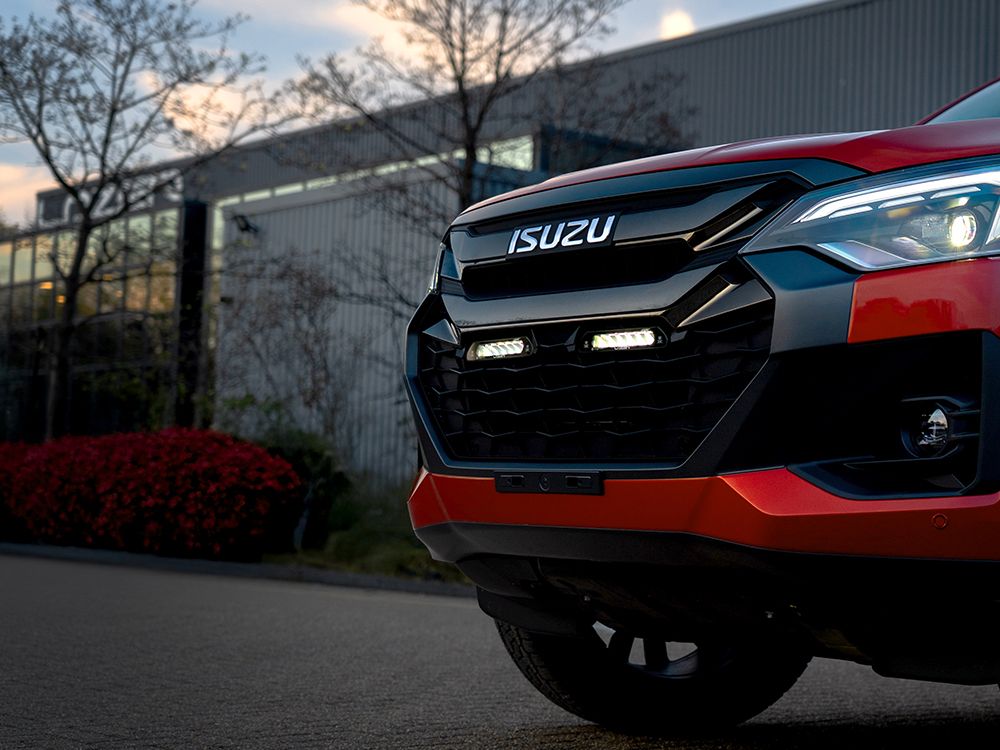

Complete grille kit for Isuzu D-Max from 2024 onwards - designed to fit directly into the car's grill and give a stylish, factory-fitted look.

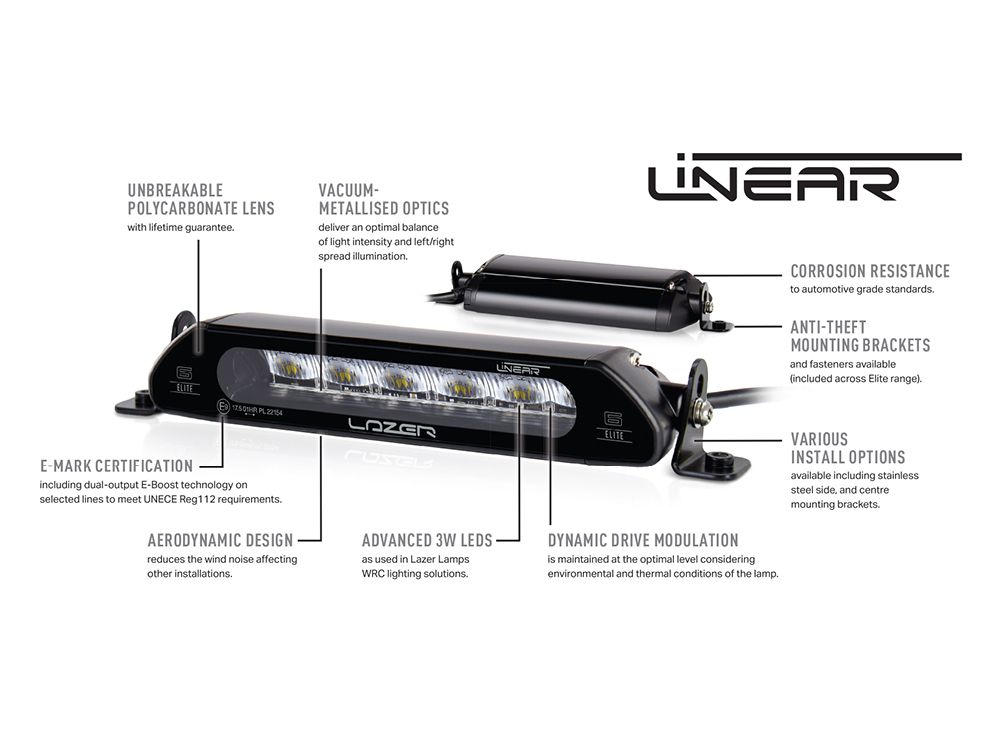

Grille kit Lazer Isuzu D-Max: The kit includes 2 pcs of Lazer Linear 6 (standard or Elite version depending on the model chosen) as well as all necessary mounting parts such as 3D printed bracket, relay kit, wiring harness and clear instructions. Installation takes approximately 60 minutes and requires some machining of the grill with the included cutting templates for an accurate and quality installation.

Grille kit Lazer Isuzu D-Max

Linear 6	Standard	Elite
Voltage range (DC)	10-32V	10-32V
Total Luminous Flux	4500 lm	8100 lm
Colour Temperature	5000 K	5000 K
LEDs	2 x 6 st	2 x 12 st
Position light	No	No
Power Consumption	42 W	84 W
Current Draw (14,4V)	2,92 A	5,8 A
Certification
High Beam (E9 approval)	2 x 12,5	2 x 17,5
Helljus	ECE R112	ECE R112

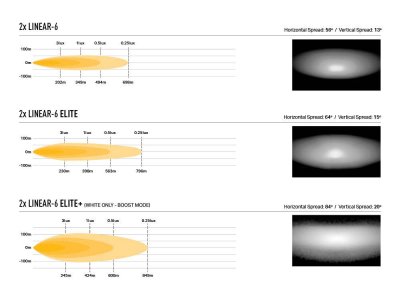

Photometric Data
Horizontal/Vertical Beam Angle	56°	64°
1 lux	349 meters	398 meters
0,25 lux	698 meters	796 meters

Assembly

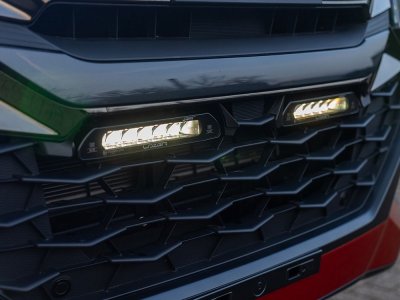

The installation requires an impact on the car grill. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are mounted afterwards with the corresponding 3D printed mounting brackets.

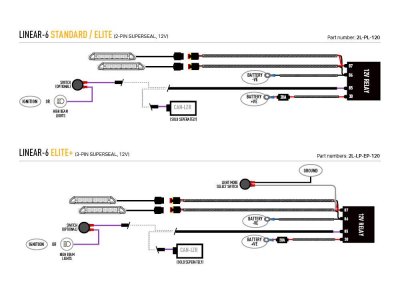

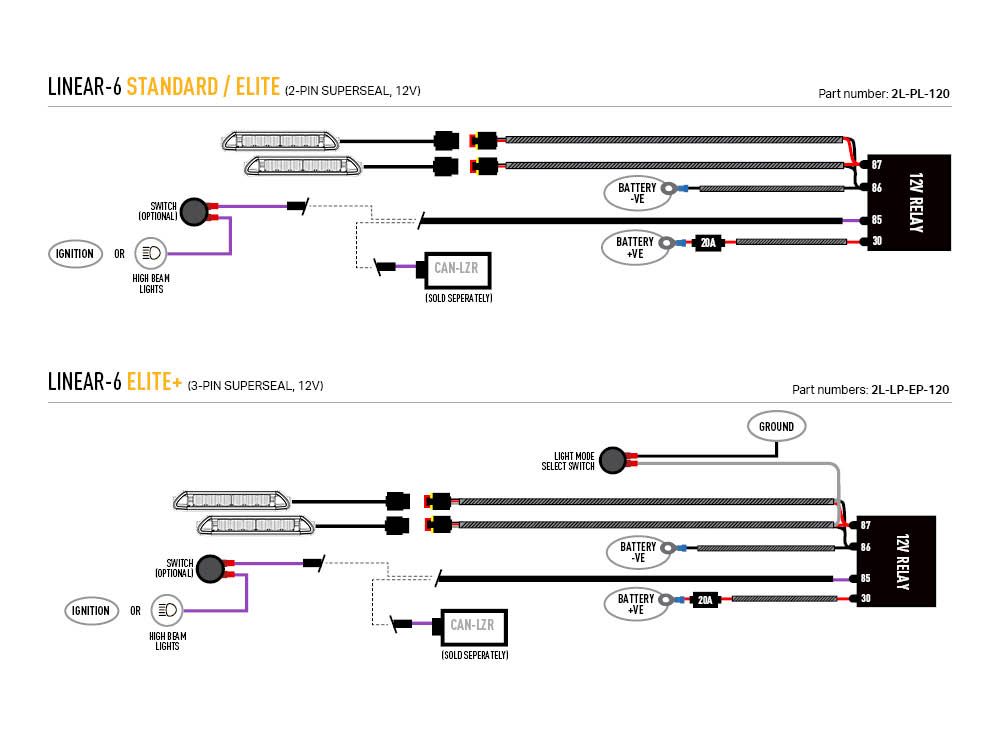

Connection

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to output the high beam signal to the relay. This is not included in the kit, but is purchased separately.

Grille kit Lazer Isuzu D-Max

What is included in the Grille kit Lazer Isuzu D-Max

2 pcs Lazer Linear 6

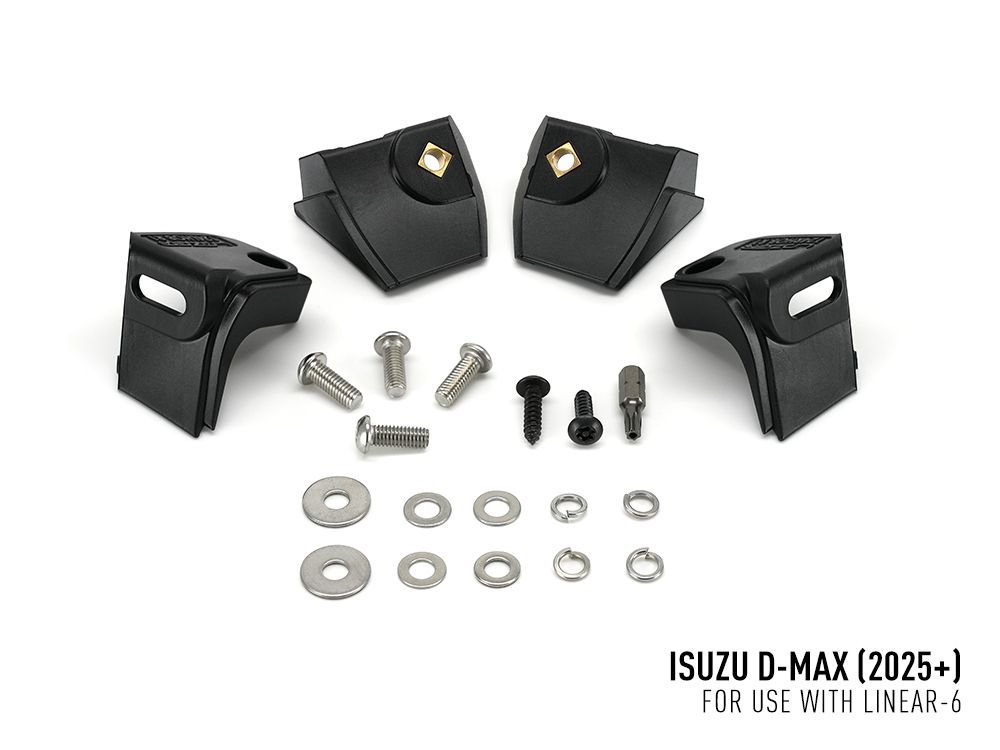

Mounting details
Relay kit
Sssembly instructions

Grille kit Lazer Isuzu D-Max is supplied as a complete kit
