Auxiliary Light Bracket for 4 Driving Lights Isuzu D-Max from 2024-2025

Item ID: 37006-4340

€897

Incl. VAT

Which variant would you like?

Matte Silver

37006-4340

€897

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

37006-4340-O

€897

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

37006-4340-S

€897

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

37006-4340-S80

€897

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

37006-4340-V

€897

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

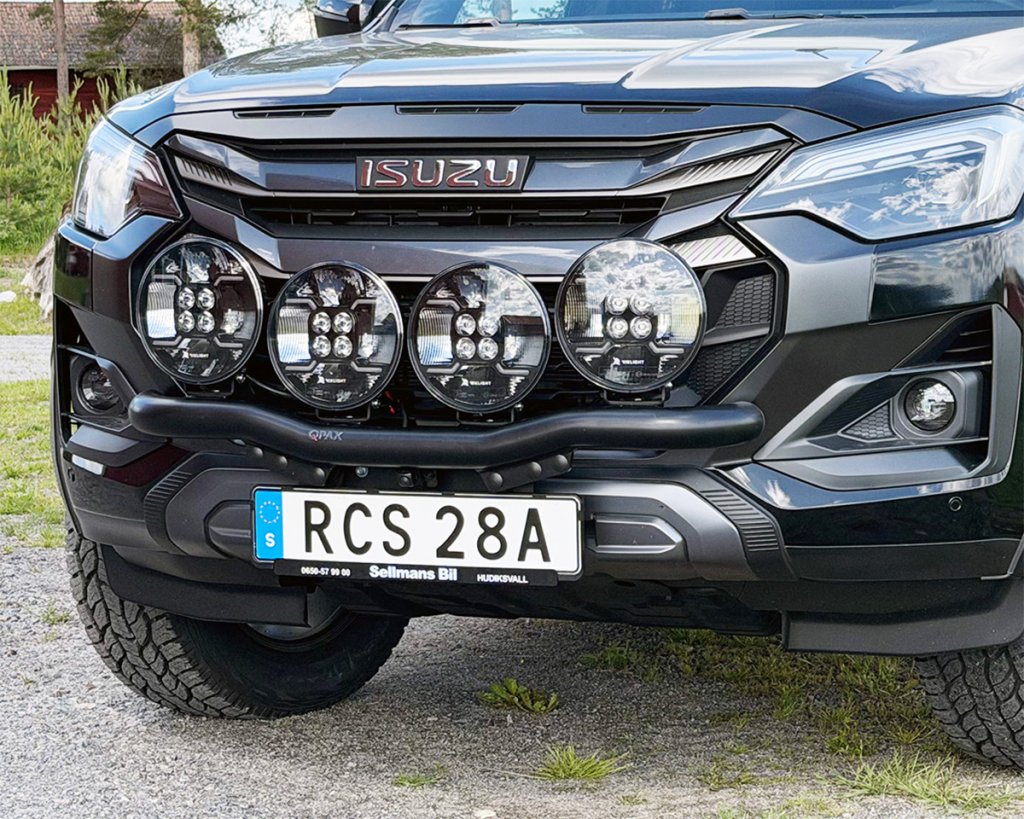

This custom-fit driving light bracket for the Isuzu D-Max from 2024-2025 provides a stable platform when mounting auxiliary lights to the front of your vehicle. The light bar is equipped with four fixed, welded mounting tabs accommodating a total of four driving lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminum tubing and features a durable powder-coated finish that withstands stone chips, road salt, and harsh Nordic climates. Specifically engineered for your Isuzu D-Max, the bar is securely anchored to the vehicle's load-bearing structure for optimal strength.

Auxiliary Light Bracket - Model-Specific and Stable Mounting

The auxiliary light bracket is installed using custom-fit brackets where mounting is done via brackets directly onto the vehicle's crash beam for maximum torsional rigidity and load capacity. Detailed step-by-step instructions for the installation on your Isuzu D-Max are provided in the mounting manual attached as a PDF on this product page. To ensure a stable and vibration-free beam pattern on uneven roads, the driving lights must be stabilized at the top using the included support stays.

Installation and procedure: Mounted with custom-fit brackets directly onto the vehicle's crash beam. Please note that the front bumper/fascia needs to be removed during installation.
Handling parking sensors: Any parking sensors blocked by installed auxiliary lights must be deactivated using Nonsens masking covers (included in the delivery).
Stabilization requirements and maximum weight: Recommended maximum weight is 2.5 kg per driving light. The included stabilization stays must always be used.

Choose Your Variant for Isuzu D-Max

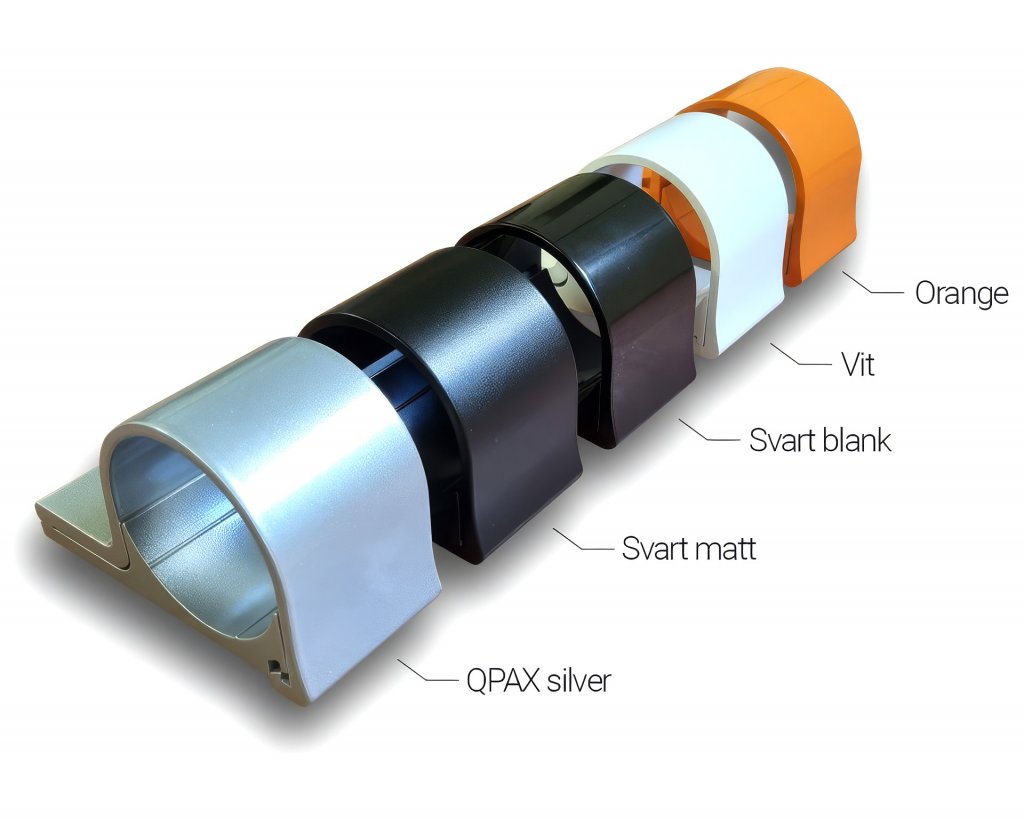

Five available colors (powder coating)

The auxiliary light bracket can be ordered in five different colors to match the paintwork or other details on your Isuzu D-Max:

Silver: Classic powder-coated silver finish.
Satin Black (matte): Subtle matte black finish.
Black (gloss 80): Gloss black finish with a gloss level of 80.
White (RAL9016): Powder coating in white RAL 9016.
Orange (RAL2008): Powder coating in orange RAL 2008.

Technical Specifications

Product variant: E63-1
Material: Aluminum
Tube diameter: 60 mm
Total width: 1019 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max light weight: 2.5 kg/pc
Installation: Bracket mounting to crash beam – front bumper is removed during installation (see PDF installation guide)

What is Included in the Delivery?

Delivered as a complete kit tailored for the Isuzu D-Max, containing:

Auxiliary light bracket in 60 mm powder-coated aluminum
Model-specific mounting kit with brackets for the crash beam
Stabilization stays for auxiliary lights
Nonsens masking covers for parking sensors
Installation instructions (included and available as a downloadable PDF)

A durable and model-specific solution for the Isuzu D-Max from 2024-2025, providing a stable mount and optimal light pattern for four driving lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Isuzu D-Max 2024–2025
