Auxiliary light bracket for 4 lights GMC Sierra from 2022-

Item ID: 30007-4340

€746

Incl. VAT

Which variant would you like?

Matte Silver

30007-4340

€746

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

30007-4340-O

€746

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

30007-4340-S

€746

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

30007-4340-S80

€746

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

30007-4340-V

€746

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

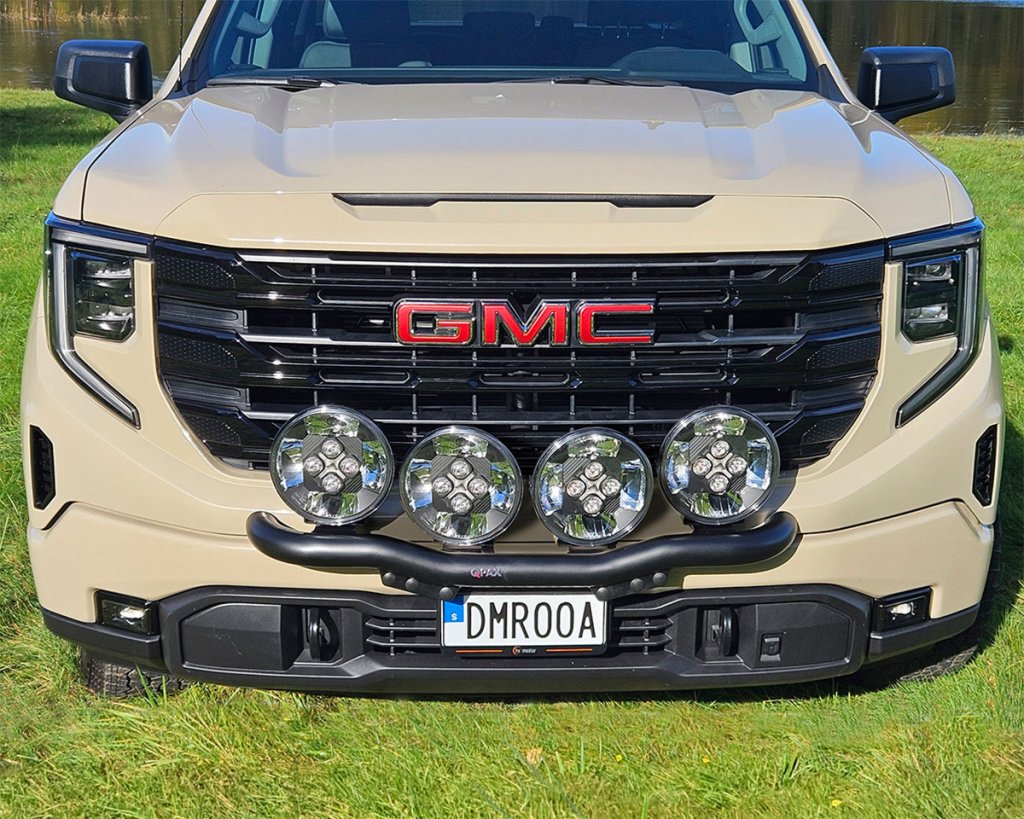

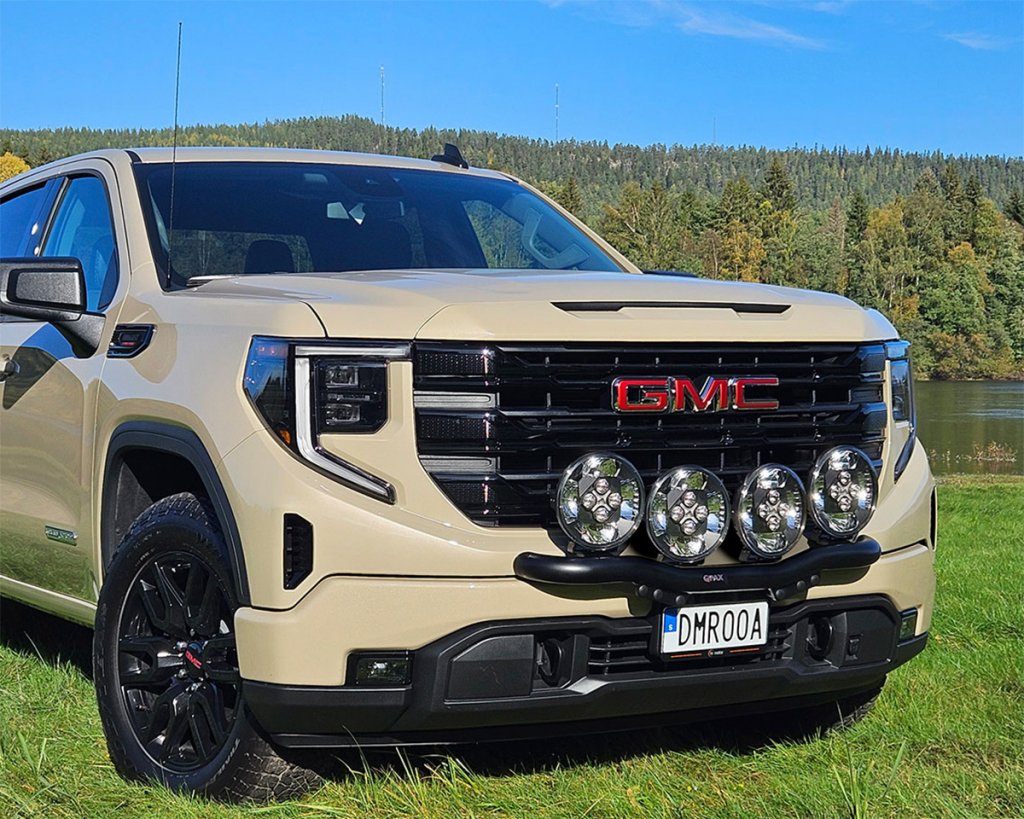

This model-specific auxiliary light bracket for the GMC Sierra from 2022- provides a stable platform when you want to mount auxiliary lights on the front. The bar is equipped with four fixed, welded mounting points that accommodate a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminium tube and features a durable powder-coated finish that withstands stone chips, road salt, and harsh Nordic climates. The bar is specifically engineered for your GMC Sierra and is securely anchored to the vehicle's load-bearing structure for optimal strength.

Auxiliary light bracket - Model-specific and stable mounting

The auxiliary light bracket mounts using custom-fit brackets directly to the vehicle's structural frame at the front, providing a stable installation tailored to the vehicle's specific design. Installation requires drilling holes in the lower part of the front bumper, and the vehicle's upper front section is removed during installation. Detailed step-by-step instructions for the installation on your GMC Sierra can be found in the mounting instructions attached as a PDF here on the product page. To ensure a stable and vibration-free beam pattern on rough roads, the auxiliary lights should be stabilized at the top using the included stay bars.

Mounting and drilling: Installation requires drilling holes in the lower section of the front. The vehicle's upper front section needs to be disassembled during installation.
Front camera impact: On models equipped with a front camera, the camera's field of view will be partially obstructed by the auxiliary lights.
Stabilization requirement and max weight: Recommended maximum weight is 2 kg per auxiliary light. The included stabilization stays must always be used.

Choose your variant for GMC Sierra

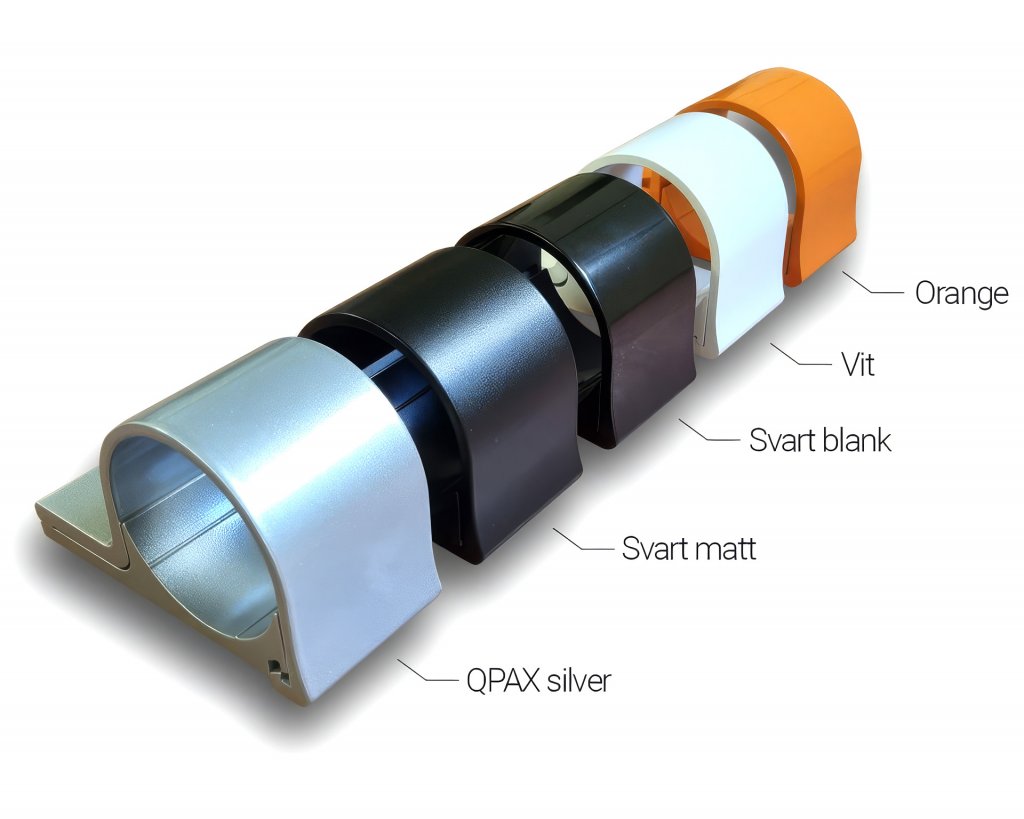

Five available colors (powder coating)

The auxiliary light bracket can be ordered in five different colors to match your GMC Sierra's paintwork or trim details:

Silver: Classic powder-coated silver finish.
Velvet black (matte): Subtle matte black surface.
Black (gloss 80): Gloss black finish with an 80 gloss rating.
White (RAL9016): Powder coating in white RAL 9016.
Orange (RAL2008): Powder coating in orange RAL 2008.

Technical specifications

Product variant: E63-1
Material: Aluminium
Tube diameter: 60 mm
Total width: 1019 mm
Surface treatment: Powder coating
Number of mounting points for auxiliary lights: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max weight per auxiliary light: 2 kg/pc
Mounting: Hole drilling in lower front section – upper front section is disassembled during installation (see PDF installation guide)

What is included in the package?

Supplied as a complete kit tailored for the GMC Sierra containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Model-specific mounting kit
Stabilization stays for auxiliary lights
Mounting instructions (included and available as a downloadable PDF)

A durable and model-specific solution for the GMC Sierra from 2022- that provides a rigid mount and optimal light output for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for GMC Sierra 2022-
