Lazer Grille kit Triple-R for Ford Ranger Platinum from 2023-

Grille kit Lazer Ford Ranger Platinum 2023-

Item ID: 26004-831E

€965

Incl. VAT

Which variant do you want?

2x Triple-R 750

26004-831

€941

Available in external warehouse | Dispatched within 1-4 working days

2x Triple-R 750 Elite

26004-831E

€1 135 €965

Available

2x Triple-R 750 Blixt

26004-831B

€1 368

Available in external warehouse | Dispatched within 1-4 working days

Available

Available in external warehouse | Dispatched within 1-4 working days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days

Product Description:

Complete auxiliary light kit containing everything you need for installation on Ford Ranger Platinum from 2023 onwards.

Complete grille kit Lazer Ford Ranger containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Triple-R 750. You choose whether you want the Lazer Triple-R 750, or the Elite model for longer range and increased power.

Grille kit Lazer Ford Ranger Platinum

Triple-R 750	Gen2	Elite Gen2
Voltage range	10-32V	10-32V
Luminous flux	9240 lm	10136 lm
Color temperature	5000 K	5000 K
Number of LEDs	2 x 4 pcs	2 x 4 pcs
Position light	Yes, White/Orange	No
Power output	88 W	104 W
Load (at 14.4V)	6,2 A	7,2 A
Certification
Reference number	2 x 35	N/A (2 x 12.5 E-marked mode)
High beam	ECE R112	ECE R112
Position light (White)	ECE R7	N/A
Luminous flux
Horizontal light angle	19 degrees	42 degrees
Range (1 lux)	612 meters	679 meters
Range (0.25 lux)	1225 meters	1358 meters

Installation

Installation requires damage to the grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

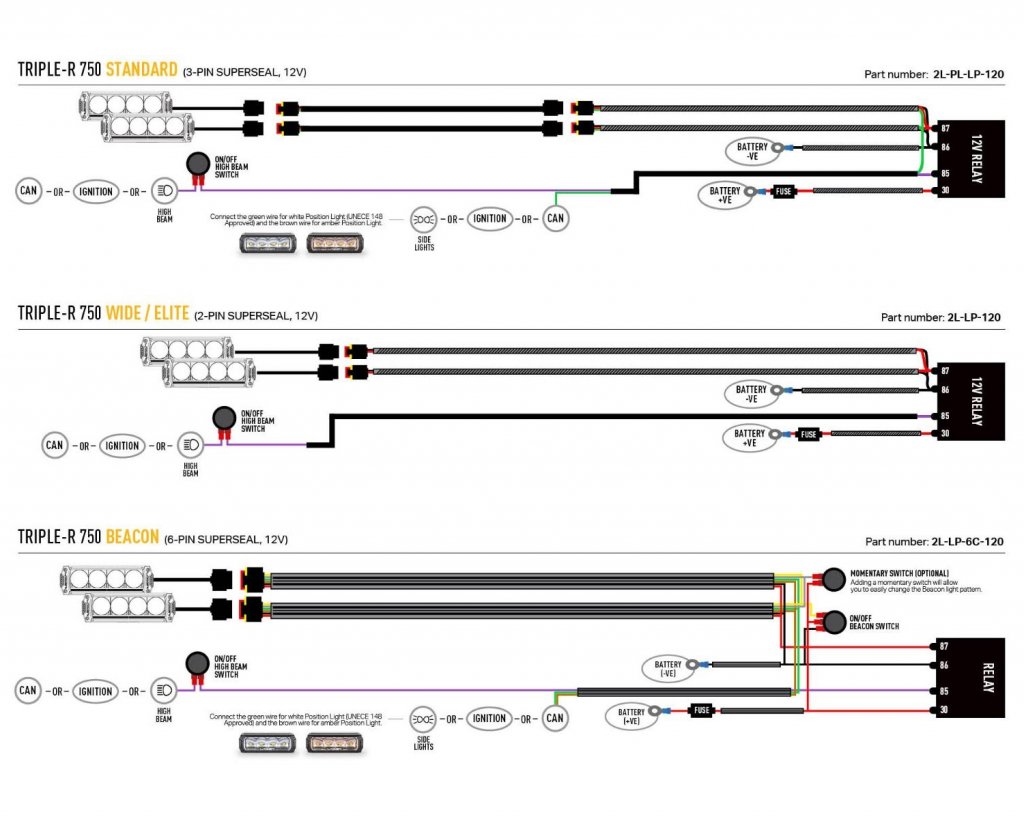

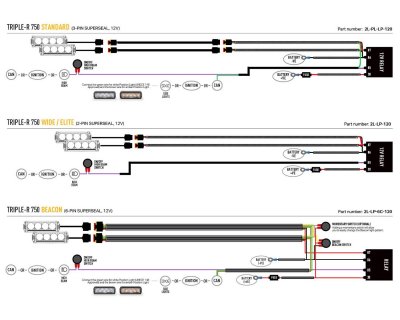

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included with the kit, but is purchased separately.

What is included in the Grill kit Lazer Ford Ranger Platinum

2 pcs Lazer Triple-R 750 Gen2
Mounting details
Relay kit
Mounting instructions

Grille kit Lazer Ford Ranger is delivered as a complete kit

Documents:
attachment

Assembly instructions for article 26004-831
attachment

Information sheet article 26004-831E
attachment

Information sheet article 26004-831B
attachment

Information sheet article 26004-831
