Extra light package Lazer Ford Ranger Limited 2023-

Item ID: 26004-830

€1 149

Incl. VAT

Which LED light bars do you want?

Lazer Triple-R 850 - 13860 lumen

26004-830

€1 149

Available in external warehouse | Shipped within 1-4 working days

Lazer Triple-R 850 Elite - 16136 lumens

26004-830E

€1 402

Available in external warehouse | Shipped within 1-4 working days

Available

Available in external warehouse | Shipped within 1-4 working days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 1-4 working days

Product Description:

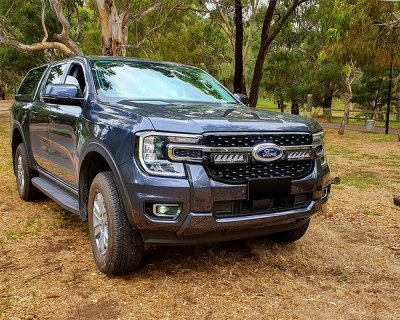

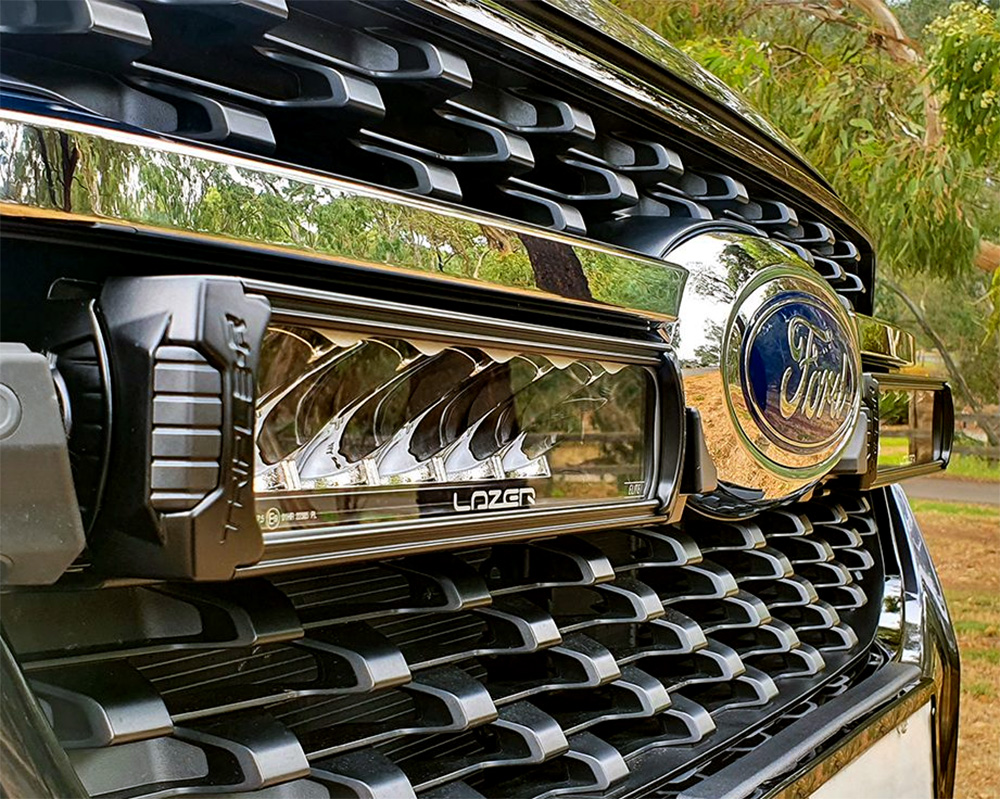

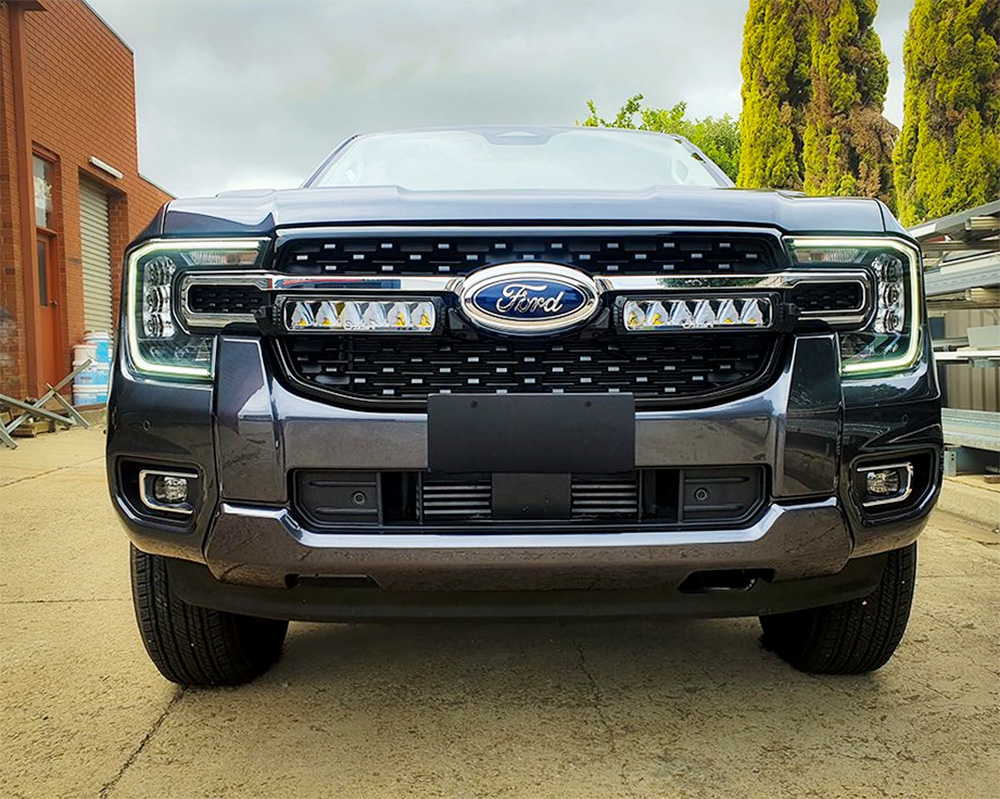

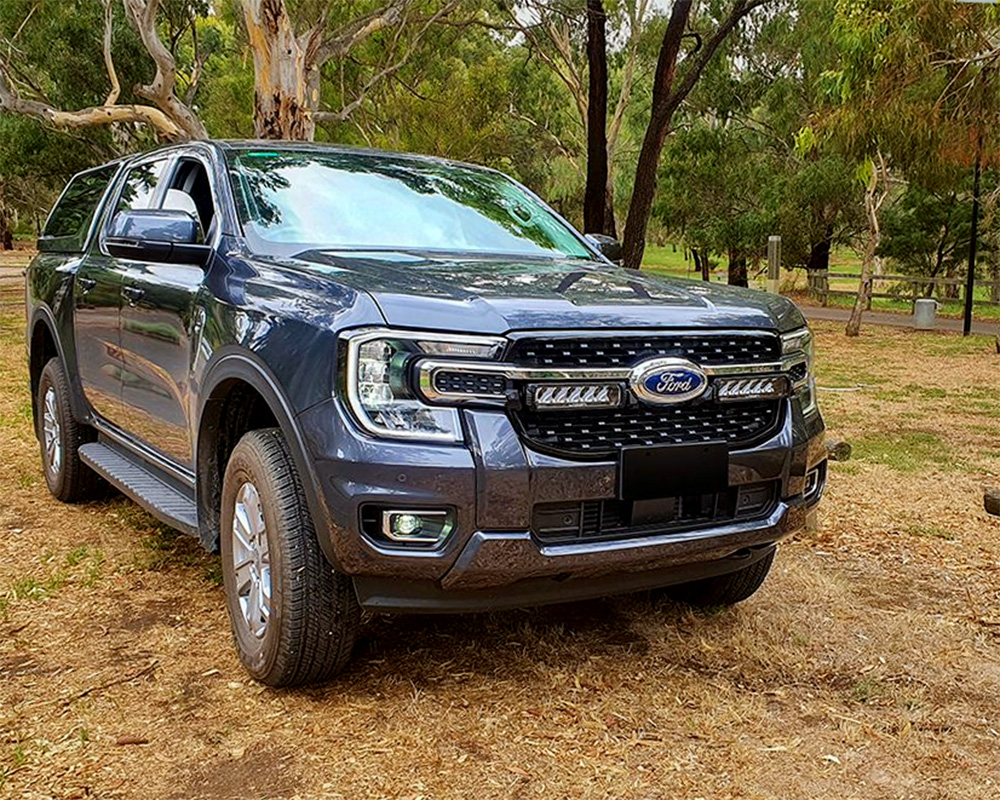

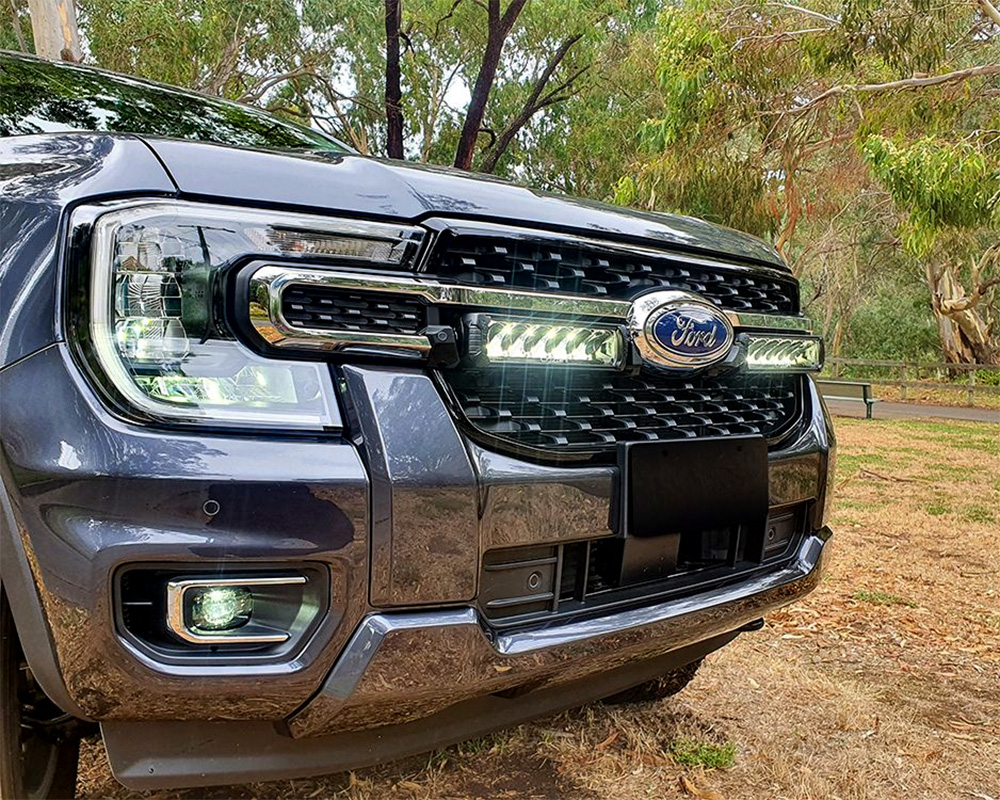

Complete auxiliary light kit containing everything you need for installation in the upper grill of the Ford Ranger Limited from 2023 onwards.

Complete extra light package Lazer Ford Ranger containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Triple-R 850. You choose whether you want the Lazer Triple-R 850, or the Elite model for longer range and increased power.

Lazer Ford Ranger extra light package Limited

Triple-R 850	Gen2	Elite Gen2
Voltage range	10-32V	10-32V
Luminous flux	13860 lm	16136 lm
Color temperature	5000 K	5000 K
Number of LEDs	2 x 6 pcs	2 x 6 pcs
Position light	Yes, White/Orange	No, no, no
Power output	132 W	146 W
Load (at 14.4V)	9,2 A	10,2 A
Certification
Reference number	2 x 45	N/A (2 x 17.5 E-marked mode)
High beam	ECE R112	ECE R112
Position light (White)	ECE R7	N/A
Luminous flux
Horizontal light angle	19 degrees	42 degrees
Range (1 lux)	750 meters	822 meters
Range (0.25 lux)	1500 meters	1643 meters

Installation

Installation requires damage to the upper grill of the car. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

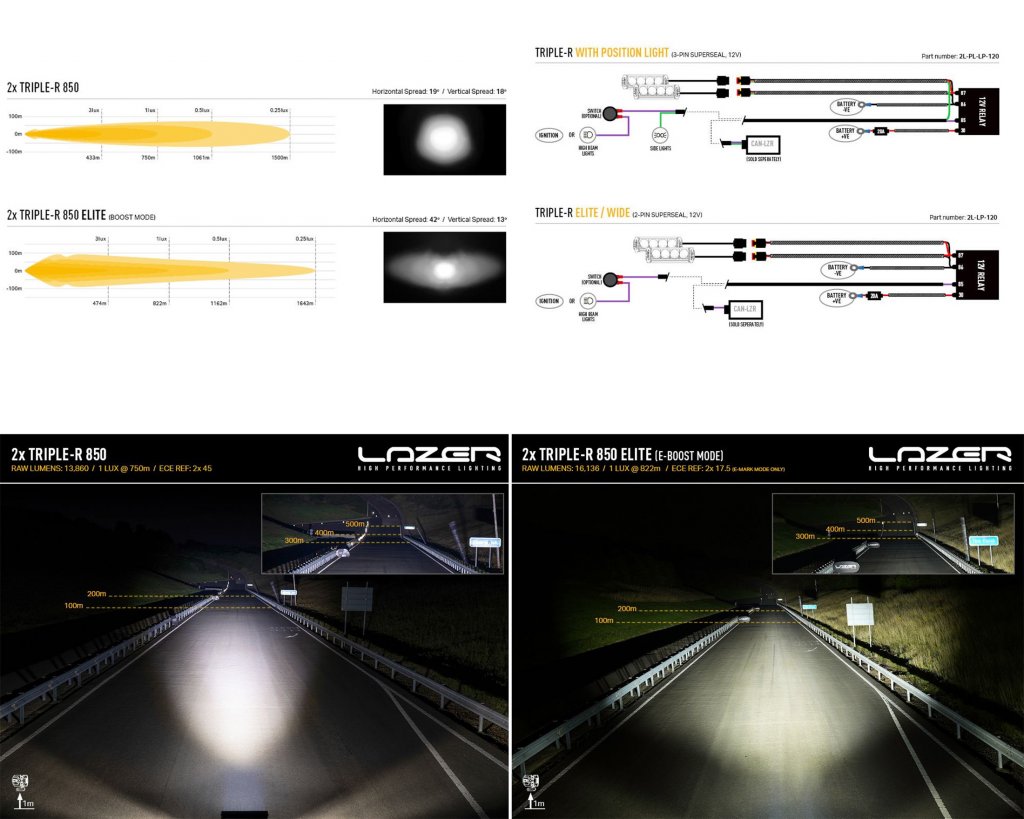

Wiring

For cars equipped with LED headlamps, the connection of the LED ramps (and position lights if desired) takes place under the dashboard on the driver's side of the car. The exact connection point can be found in the installation instructions. No additional CANBUS interpreter or similar is required.

What is included in the Lazer Ford Ranger auxiliary light kit

2 pcs Lazer Triple-R 850 Gen2

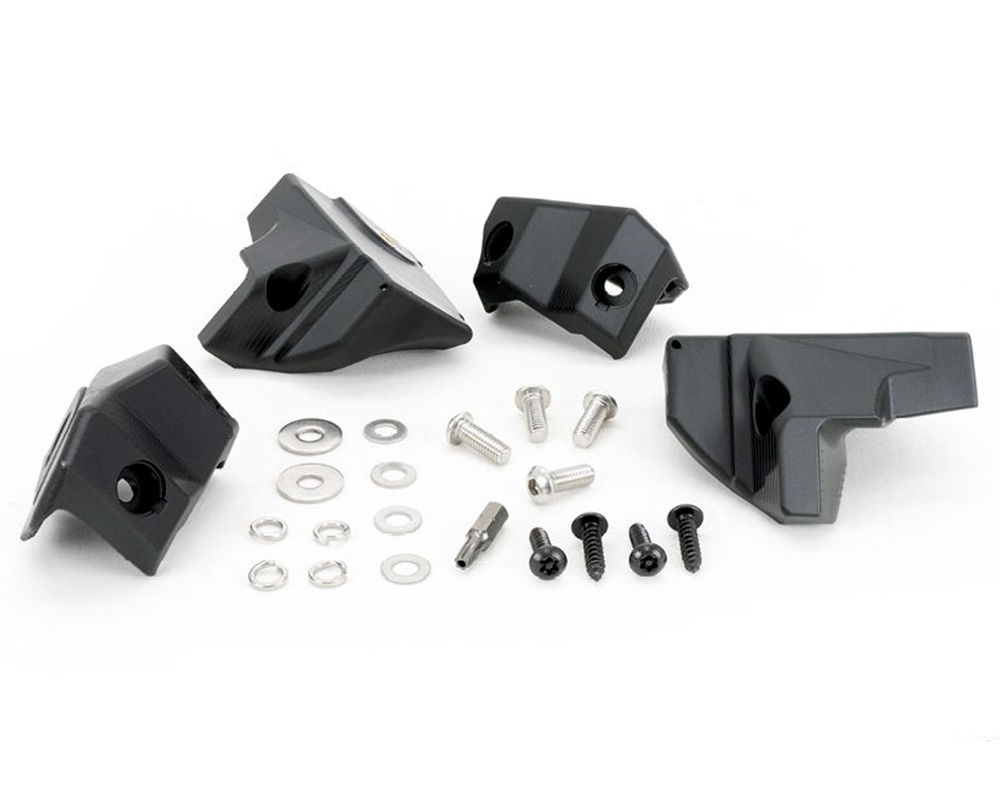

Mounting details
Relay kit
Mounting instructions

Lazer Ford Ranger extra light kit is delivered as a complete kit

Documents:
attachment

Assembly instructions for article 26004-830(E)
