Grille kit Lazer Ford Transit Courier 2023-

Item ID: 26020-830

€644

Incl. VAT

Which variant would you like?

Glide

26020-830

€644

Available in external warehouse | Dispatched within 1-4 working days

Glide with position light

26020-830P

€683

Available in external warehouse | Dispatched within 1-4 working days

Elite

26020-830E

€908

Available in external warehouse | Dispatched within 1-4 working days

Elite with position light

26020-830EP

€947

Available in external warehouse | Dispatched within 1-4 working days

Assembly parts only

26020-830M

€102

Available in external warehouse | Dispatched within 1-4 working days

Available

Available in external warehouse | Dispatched within 1-4 working days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days

Product Description:

Complete auxiliary light kit containing everything you need for installation on the Ford Transit Courier from 2023- onwards.

Complete grille kit Lazer Ford Transit Courier containing model-specific 3D printed mounting parts together with relay kit and Lazer ramp Glide. You choose whether you want the Lazer Glide, or the Elite model for longer range and increased power.

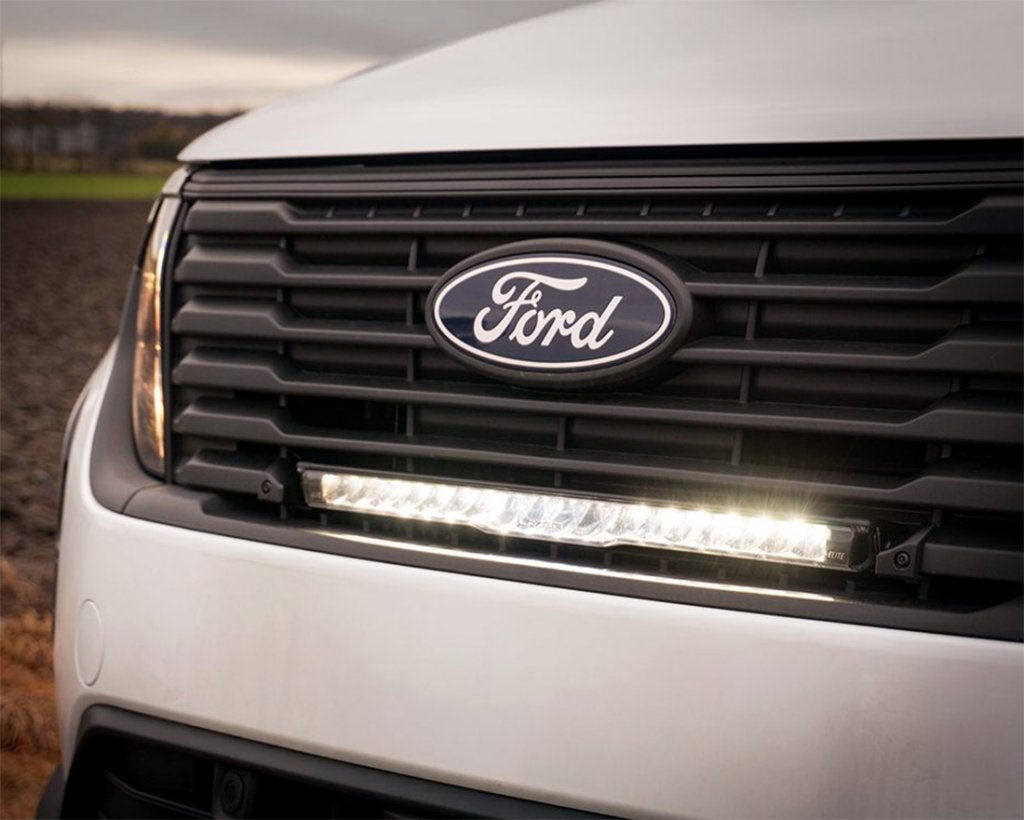

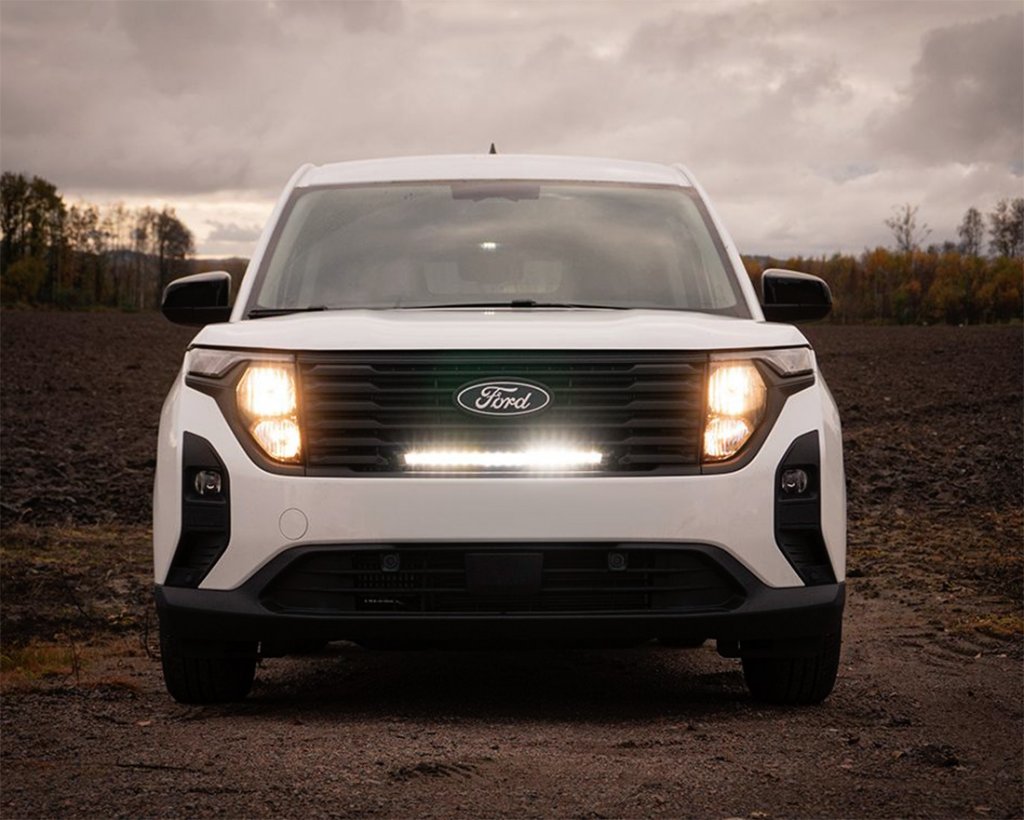

Grille kit Lazer Ford Transit Courier

Glide	Standard	with Position lights	Elite	with Position lights
Voltage range	10-32V	10-32V	10-32V	10-32V
Luminous flux	11500 lm	11500 lm	12800 lm	12800 lm
Color temperature	5000 K	5000 K	5000 K	5000 K
Number of LEDs	18 pcs	18 pcs	18 pcs	18 pcs
Position light	No	Yes	No	Yes
Power output	120 W	120 W	130 W	130 W
Load (at 14.4V)	8,3 A	8,3 A	9,2 A	9,2 A
Certification
Reference number	2 x 12,5 (2 x 12,5 E-marked mode)	2 x 12,5 (2 x 12,5 E-marked mode)	2 x 12,5 (2 x 12,5 E-marked mode)	2 x 12,5 (2 x 12,5 E-marked mode)
High beam	ECE R149	ECE R149	ECE R149	ECE R149

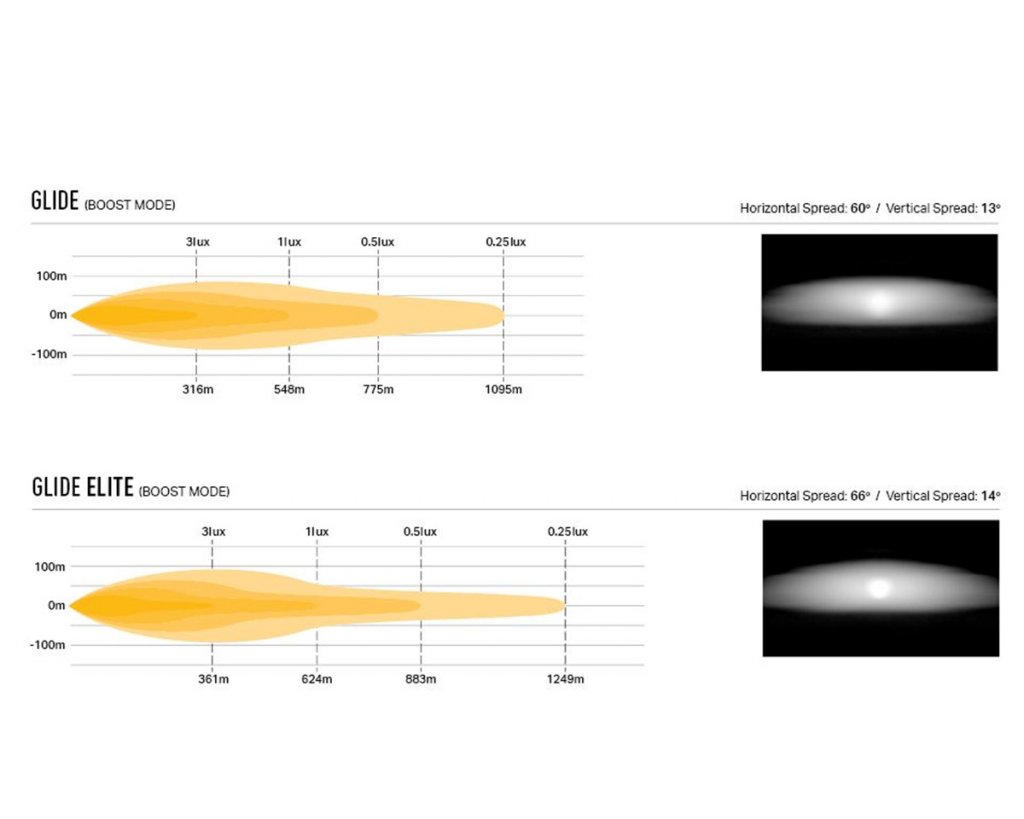

Luminous flux
Light angle horizontal/vertical	60/13 degrees	60/13 degrees	66/14 degrees	66/14 degrees
Range (1 lux)	548 meters	548 meters	624 meters	624 meters
Range (0.25 lux)	1095 meters	1095 meters	1249 meters	1249 meters

Installation

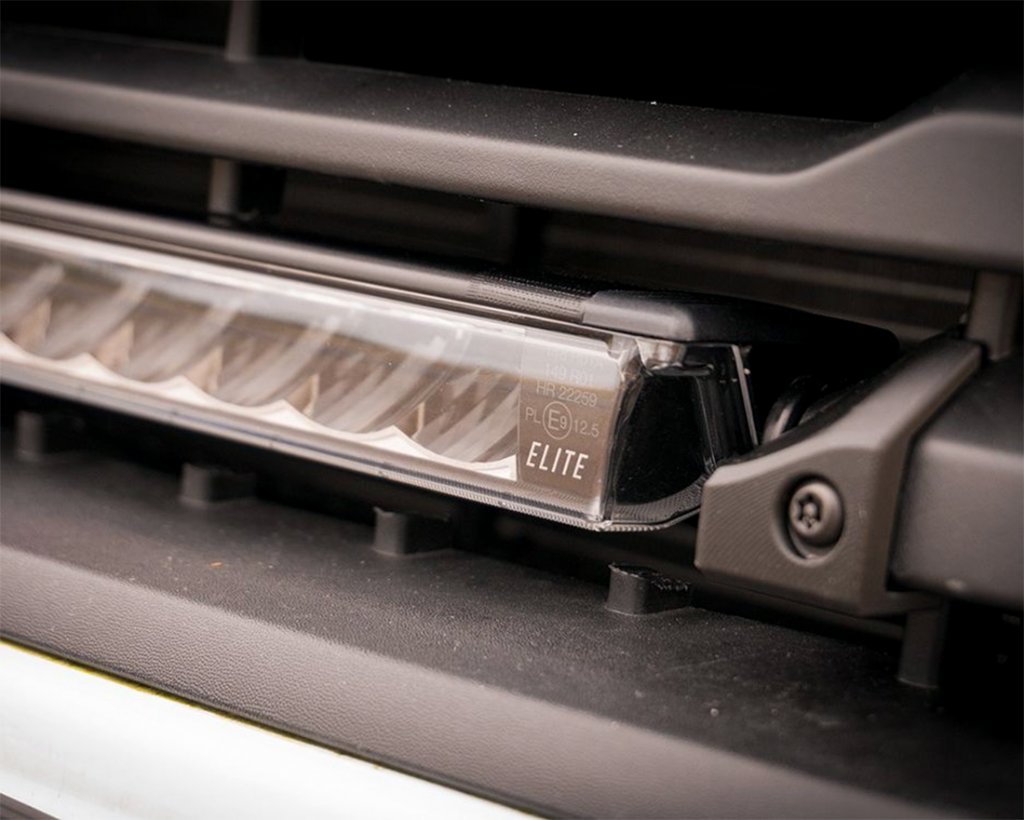

Installation requires damage to the grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

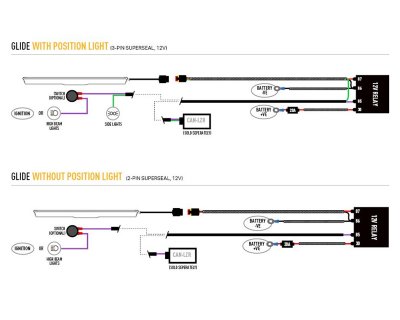

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.

What is included in the Grille kit Lazer Ford Transit Courier

1 piece Lazer Glide

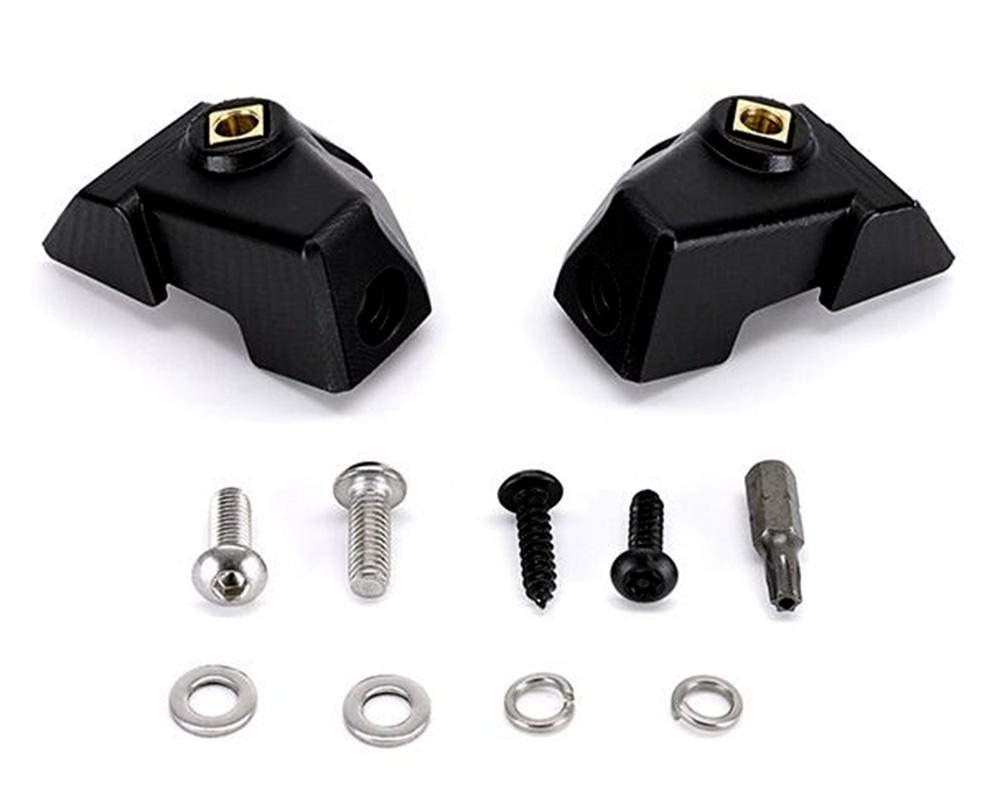

Mounting details
Relay kit
Mounting instructions

Grille kit Lazer Ford Transit Courier is supplied as a complete kit
