Product Description:

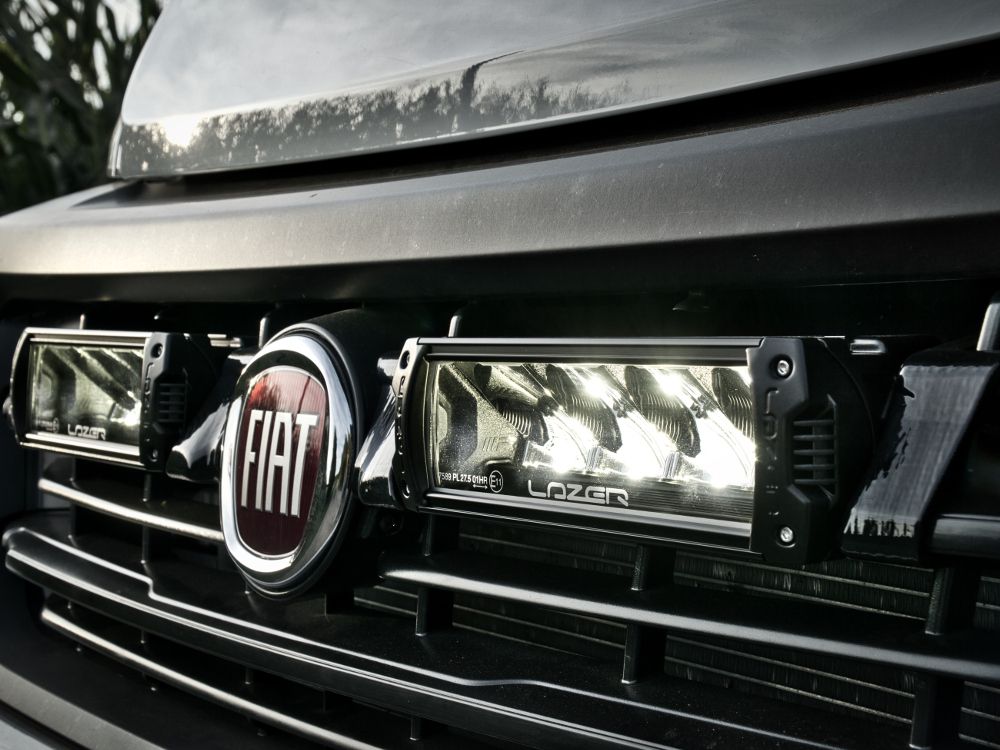

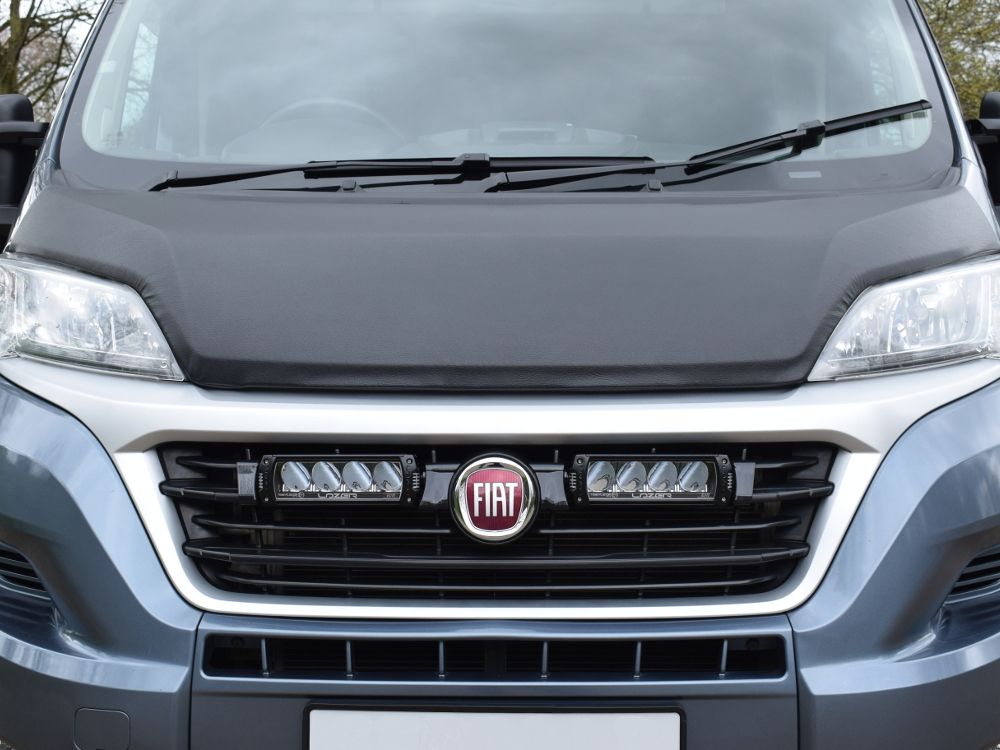

Complete auxiliary light kit containing everything you need for installation in the upper grill of Fiat Ducato from 2014-2022.

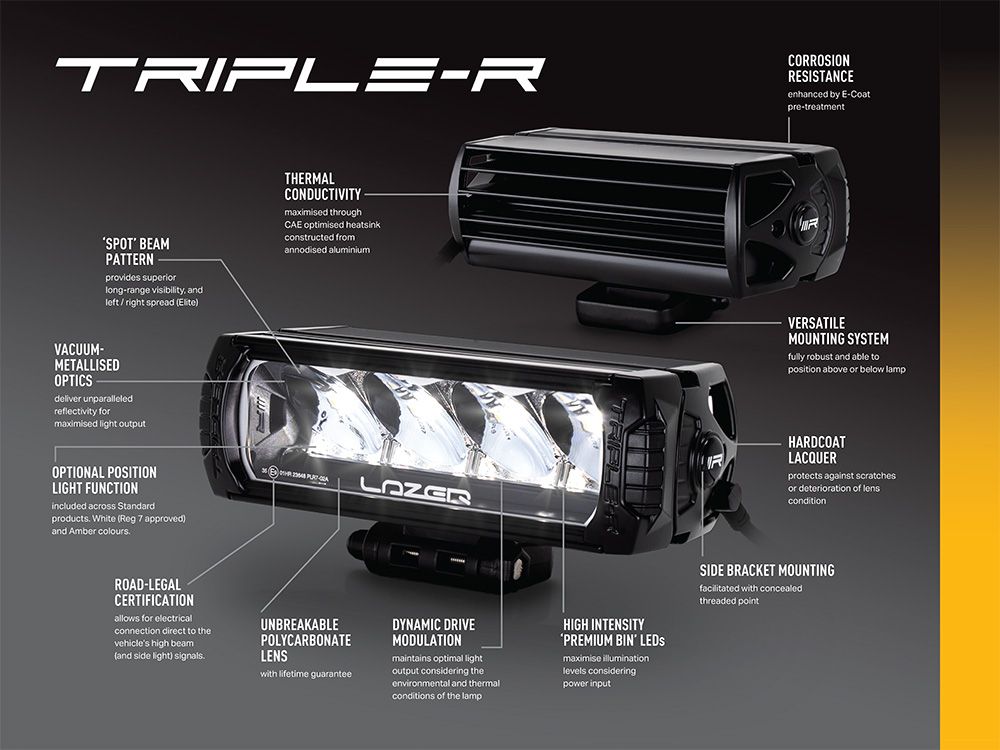

Complete extra light package Lazer Fiat Ducato containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Triple-R 750. You choose whether you want the Lazer Triple-R 750, or the Elite model for longer range and increased power.

Lazer Fiat Ducato extra light package

Triple-R 750Gen2Elite Gen2
Voltage range10-32V10-32V
Luminous flux9240 lm10136 lm
Color temperature5000 K5000 K
Number of LEDs2 x 4 pcs2 x 4 pcs
Position lightYes, White/OrangeNo, no, no
Power output88 W104 W
Load (at 14.4V)6,2 A7,2 A
Certification

Reference number2 x 35

N/A

(2 x 12.5 E-marked mode)

High beamECE R112ECE R112
Position light (White)ECE R7N/A
Luminous flux

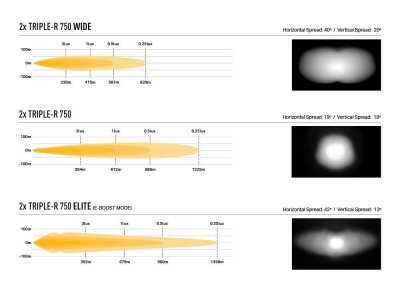

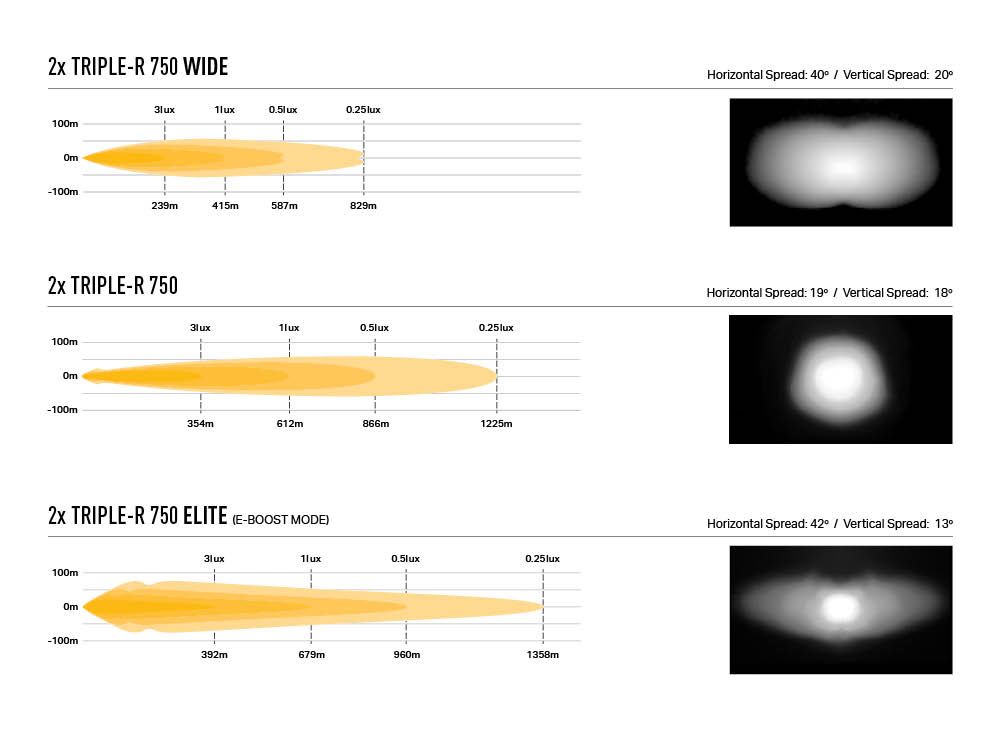

Horizontal light angle19 degrees42 degrees

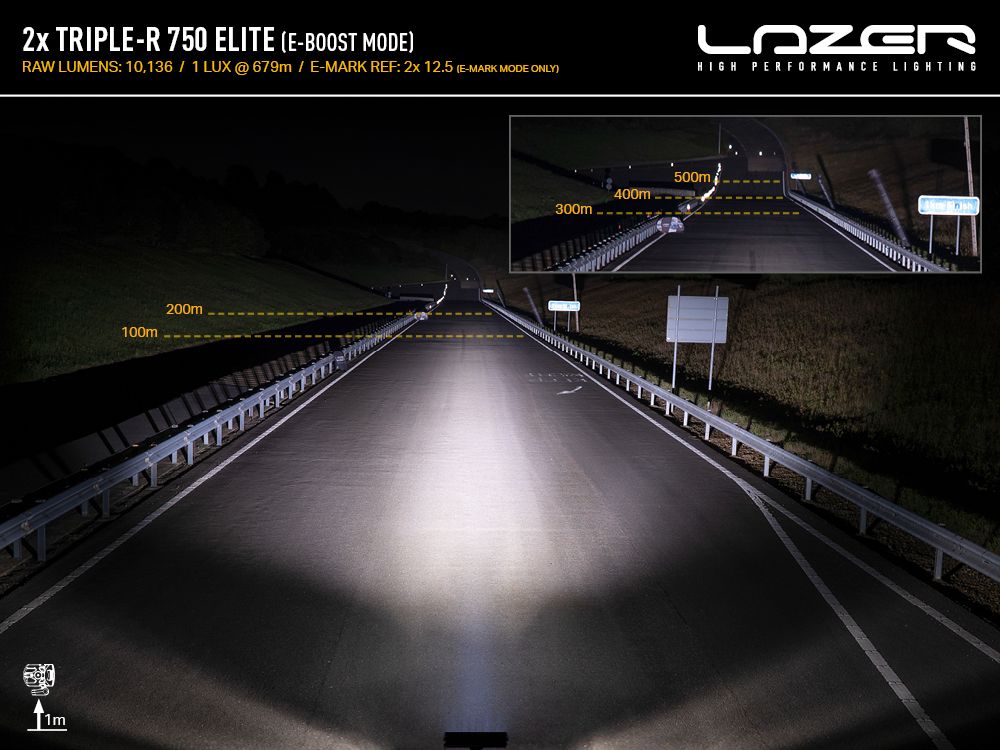

Range (1 lux)612 meters679 meters
Range (0.25 lux)1225 meters1358 meters
Installation
  • Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

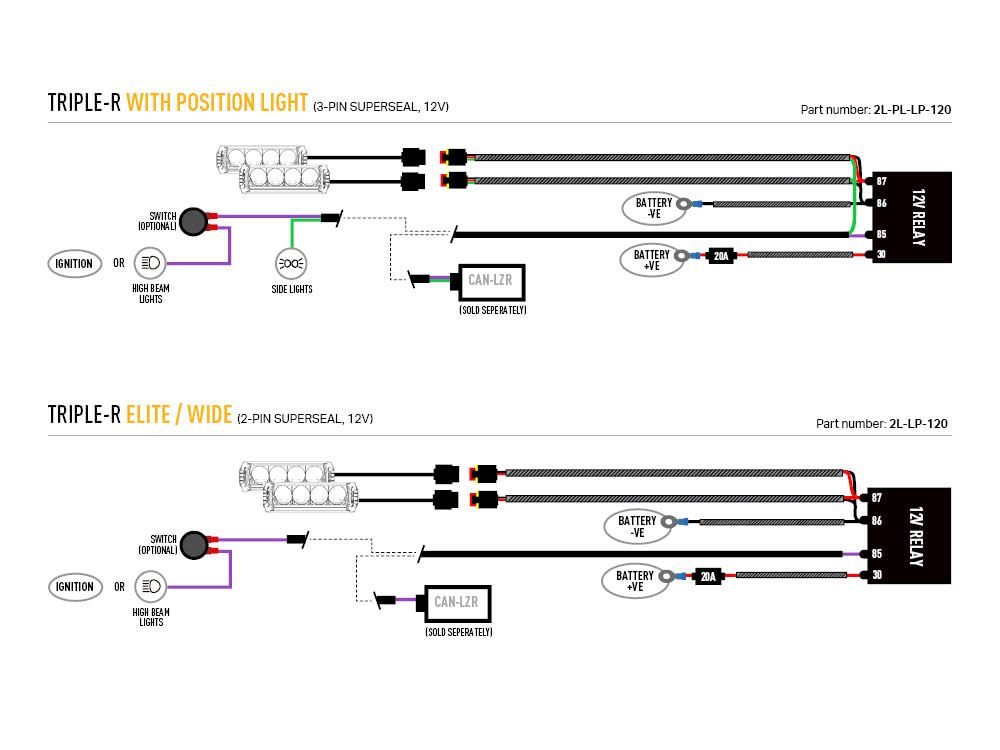

Wiring
  • Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.
What is included in the Lazer Fiat Ducato auxiliary light kit
  • 2 pcs Lazer Triple-R 750 Gen2

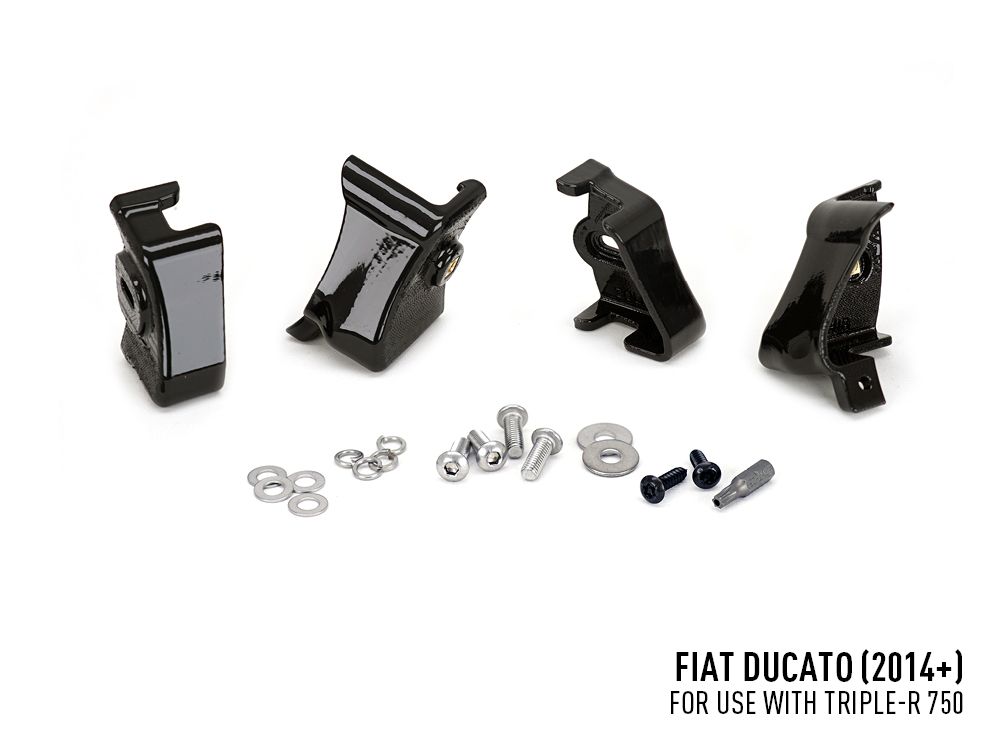

  • Mounting details
  • Relay kit
  • Mounting instructions

Lazer Fiat Ducato extra light kit is delivered as a complete kit


Documents:
attachment Mounting description for led light bar 1527-831

Manufacturer:

Assembly time: approx. 60 minutes

Warranty: 5 year warranty
