Auxiliary Light Bracket for 4 Lights Dodge RAM 1500 Diesel from 2019-2024

Auxiliary Light Bracket for 4 Lights Dodge RAM 1500 2019-2024 | Qpax
Item ID:  24001-4340
€765
Incl. VAT

What type of coating would you like?

€765
In stock at external warehouse | Ships within 2-7 business days
€765
In stock at external warehouse | Ships within 2-7 business days
€765
In stock at external warehouse | Ships within 2-7 business days
€765
In stock at external warehouse | Ships within 2-7 business days
€765
In stock at external warehouse | Ships within 2-7 business days
Available
In stock at external warehouse | Ships within 2-7 business days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days
Product Description:

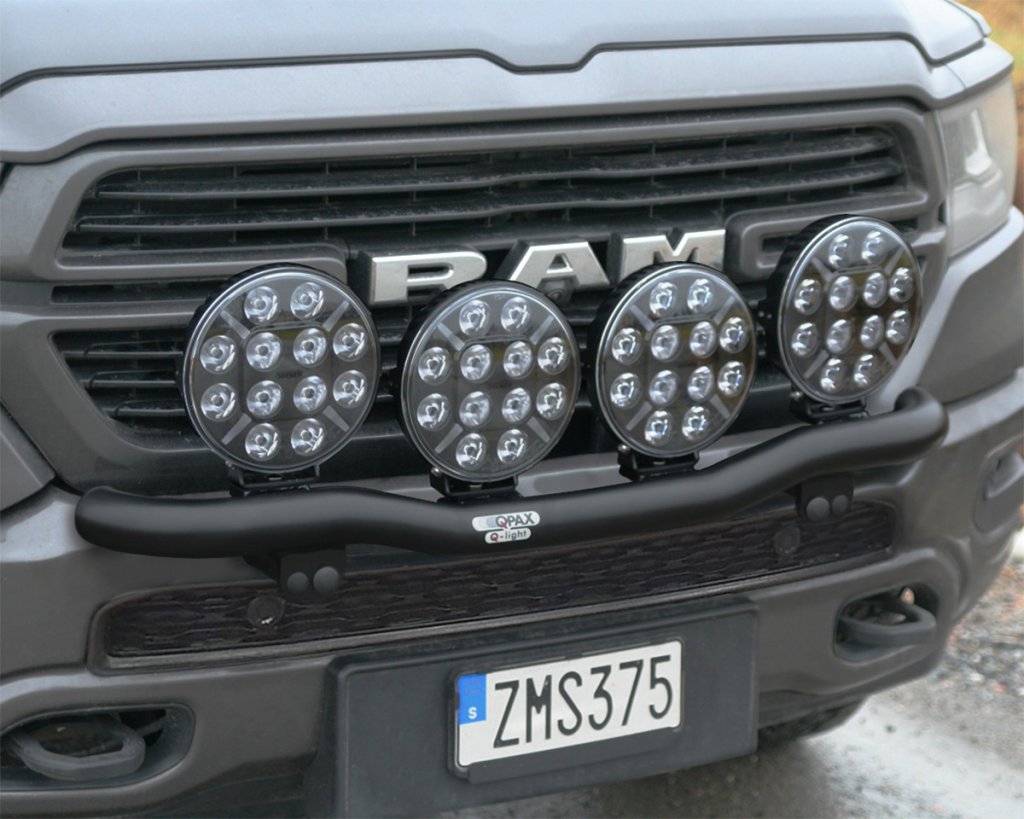

This vehicle-specific auxiliary light bracket for Dodge RAM 1500 Diesel from 2019-2024 provides a rigid platform when mounting driving lights to the front end. The bar is equipped with four fixed, welded mounting tabs accommodating a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is manufactured from 60 mm aluminium tubing and features a durable powder-coated finish designed to withstand stone chips, road salt, and harsh Nordic weather. Specifically engineered for your Dodge RAM 1500, the bar anchors firmly into the vehicle's load-bearing chassis structure for optimal strength.

Auxiliary Light Bracket - Custom-Fit and Rigid Installation

The light bracket mounts with custom-fit brackets directly to the vehicle's structural frame in the front, delivering a robust installation tailored to the vehicle's specific design. Detailed step-by-step instructions for installation on your Dodge RAM 1500 are provided in the mounting manual attached as a PDF on this product page. To ensure a stable and vibration-free beam pattern on rough roads, the driving lights must be stabilised at the top using the included stay bars.

  • Tested and verified fitment: Proven on Dodge RAM 1500 STD, Rebel, and TRX.
  • Mounting and front-end modification: Installation requires drilling holes in the lower front bumper section. The upper grille/front section is disassembled during the installation process.
  • Front camera impact: On models equipped with a front camera in the RAM emblem, the camera's field of view will be partially obstructed by the auxiliary lights.
  • Stabilisation requirements and max weight: Recommended maximum weight is 2 kg per auxiliary light. The included top stay bars must always be used.

Choose Your Variant for Dodge RAM 1500 Diesel

Five available colours (powder coating)

The auxiliary light bar can be ordered in five different colours to match the paintwork or trim accents of your Dodge RAM 1500:

  • Silver: Classic powder-coated silver finish.
  • Velvet Black (matte): Understated matte black finish.
  • Black (gloss 80): Gloss black finish with an 80 gloss level.
  • White (RAL9016): Powder-coated in white RAL 9016.
  • Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

  • Material: Aluminium
  • Tube diameter: 60 mm
  • Surface treatment: Powder coating
  • Number of light mounting points: 4
  • Fixed/adjustable mounting tabs: Fixed (welded)
  • Max auxiliary light diameter: 240 mm
  • Recommended max weight per light: 2 kg each
  • Mounting: Vehicle-specific installation requiring drilling in lower front (see PDF installation guide)

What is Included?

Delivered as a complete kit tailored for the Dodge RAM 1500, containing:

  • Auxiliary light bracket in 60 mm powder-coated aluminium
  • Vehicle-specific mounting kit
  • Light stabilisation stay bars
  • Installation instructions (included in box and available as downloadable PDF)

A durable, custom-fit solution for the Dodge RAM 1500 from 2019-2024 providing a rigid mount and optimal beam performance for four auxiliary driving lights.


Documents:
attachment Installation Instructions for Dodge RAM 1500 Auxiliary Light Mount (2019–2024)

Fits the following car models:

Dodge RAM 1500 from 2019-2024

Model year from 2019-2024

Dodge RAM 1500 from 2013-2018 Dodge RAM 1500 from 2019-2024 Dodge RAM 1500 from 2025 and newer

Generation / Body code:

  • DT

Engine:

  • Diesel
  • E85
  • Mild-Hybrid Petrol
  • Petrol

Body type:

  • Crew Cab (Dubbelhytt)
  • Quad Cab (Förlängd hytt)
  • Regular Cab (Singelhytt

Equipment Package:

  • Big Horn
  • Laramie
  • Limited
  • Limited Longhorn
  • Rebel
  • Tradesman
  • TRX

Manufacturer: Qpax

Warranty: 1-year warranty

Installation time: approx. 90 min

Origin: Flag of Sweden Sweden
