Auxiliary light bar for 4 lights Dodge RAM 1500 from 2019-2024

Item ID: 24001-4341

€859

Incl. VAT

What type of coating would you like?

Matte finish

24001-4341

€859

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

24001-4341-O

€859

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (matte)

24001-4341-S

€859

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

24001-4341-S80

€859

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

24001-4341-V

€859

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

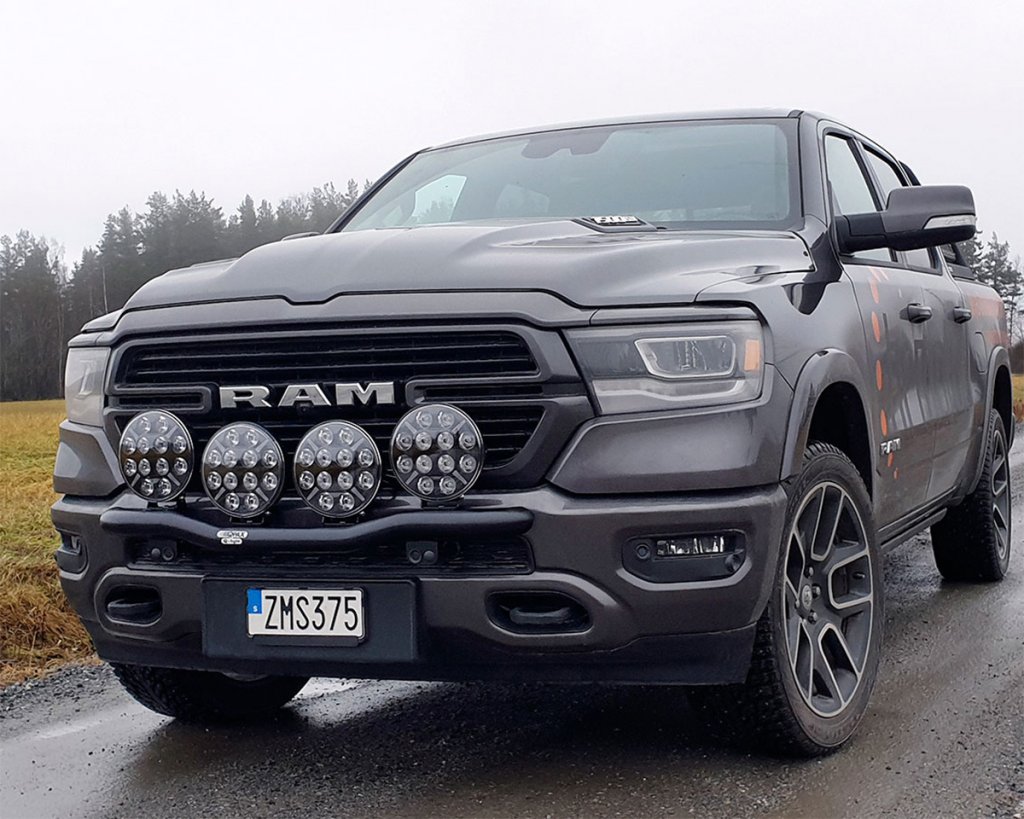

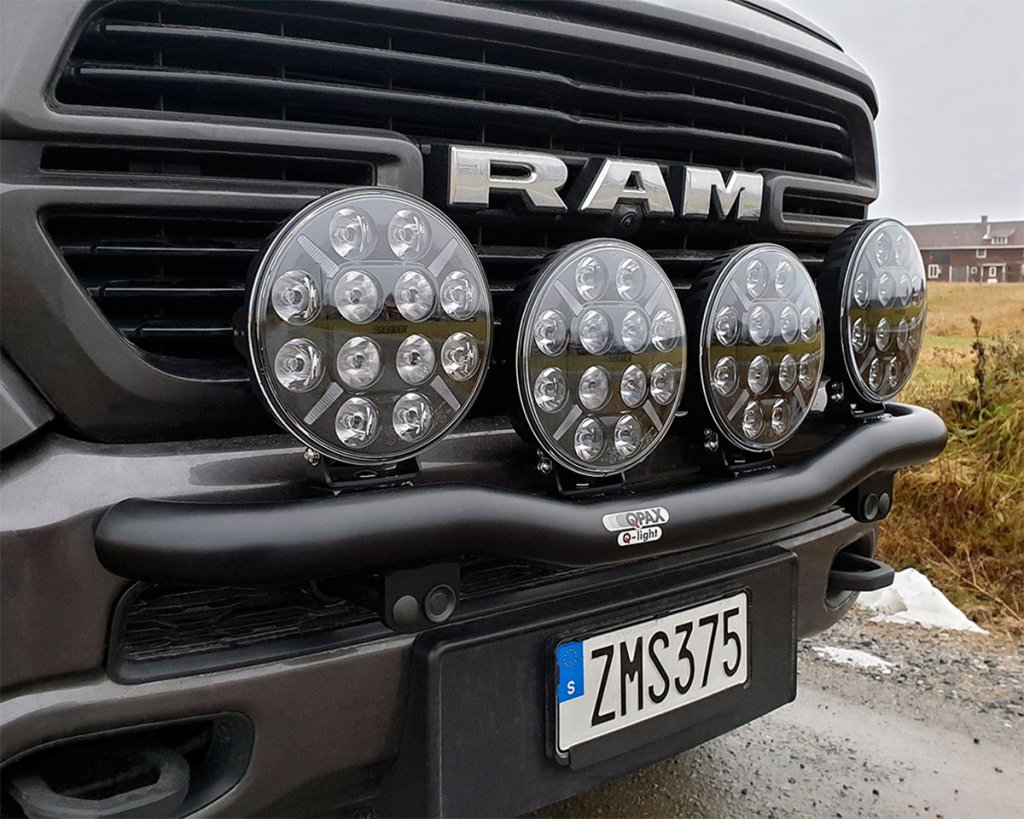

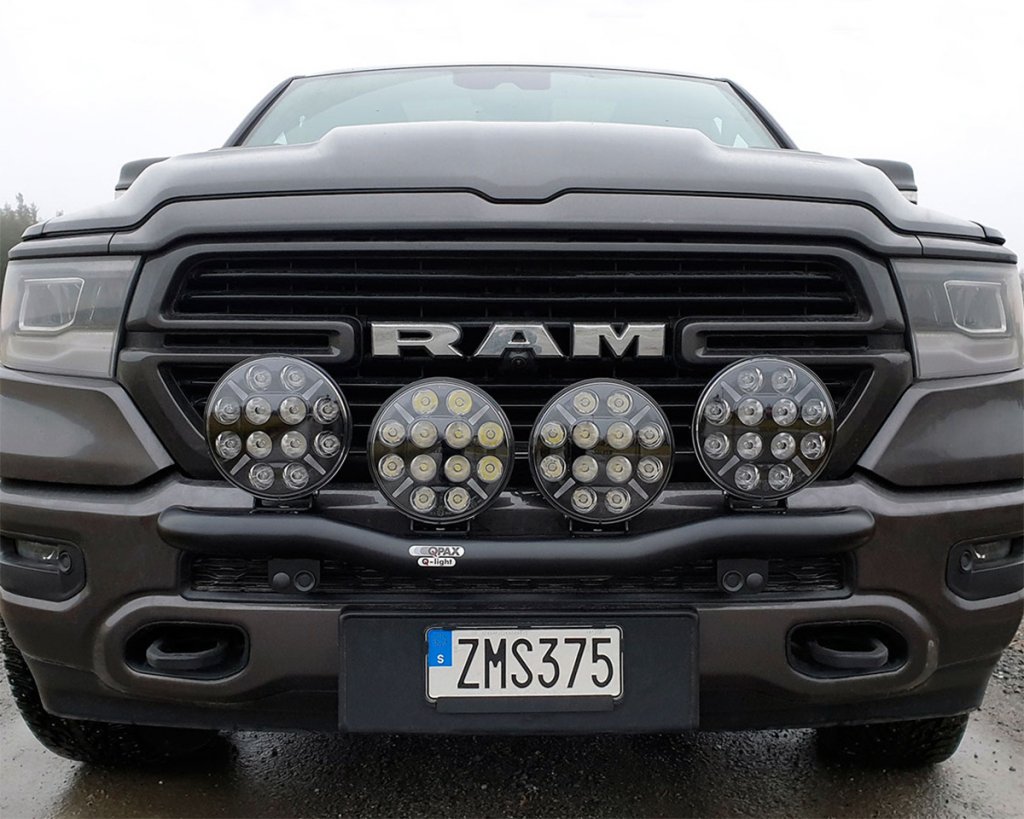

This custom-fit auxiliary light bar for the Dodge RAM 1500 from 2019-2024 provides a stable platform when mounting driving lights to the front. The bar is equipped with four fixed, welded mounting tabs accommodating a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminum tubing and features a durable powder-coated finish that withstands stone chips, road salt, and harsh Nordic weather. The bar is specifically engineered for your Dodge RAM 1500 and mounts securely to the vehicle's structural frame for optimal strength.

Auxiliary Light Bar - Custom-Fit and Stable Installation

The light bracket is mounted using custom-fit brackets that attach directly to mounting points on the vehicle's frame for a solid, vibration-free installation. Detailed step-by-step instructions for installation on your Dodge RAM 1500 can be found in the mounting instructions attached as a PDF on this product page. To ensure a stable beam pattern on rough roads, the auxiliary lights should be stabilized at the top using the included stay bars.

Model restriction: Does not fit Dodge RAM Rebel (a separate dedicated bracket is available for the Rebel).
Important engine exception: Does not fit models with diesel engines.
Parking sensor handling: The two middle parking sensors are relocated and mounted directly into the bracket's bar – eliminating the need to disconnect or disable them.
Impact on front camera: On vehicles equipped with a front camera in the RAM grille emblem, the camera's field of view will be partially obstructed by the auxiliary lights.
Stabilization and maximum weight requirements: Recommended maximum weight is 2 kg per light. The included stabilizing stay bars must always be used.

Choose your variant for Dodge RAM 1500

Five available colors (powder coating)

The auxiliary light bar can be ordered in five different finishes to match the paintwork or other exterior details of your Dodge RAM 1500:

Silver: Classic powder-coated silver finish.
Velvet black (matte): Subtle matte black surface.
Black (gloss 80): Gloss black finish with a gloss rating of 80.
White (RAL9016): Powder coating in white RAL 9016.
Orange (RAL2008): Powder coating in orange RAL 2008.

Technical specifications

Material: Aluminum
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Maximum light size: 240 mm in diameter
Recommended max weight per light: 2 kg/pc
Mounting: Mount points on the vehicle's chassis frame (see PDF mounting instructions)

What is included in the delivery?

Supplied as a complete kit tailored for the Dodge RAM 1500 containing:

Auxiliary light bar in 60 mm powder-coated aluminum
Custom-fit mounting kit
Stabilizer stay bars for auxiliary lights
Mounting instructions (included in package and available as a downloadable PDF)

A durable and vehicle-specific solution for the Dodge RAM 1500 from 2019-2024 that provides a stable mount and optimal light pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Dodge RAM 1500 2019–2024
