Holder Zebra TC501 with pistol grip

Item ID: 00013-711498

€70

Incl. VAT

Select device and model

Zebra TC501 – Screen facing outward

00013-711498

€70

Available

Zebra TC501 – Screen facing inward

00013-711499

€70

Available

In stock at external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 1-4 business days

Product Description:

Brodit custom-fit holder for Zebra TC501 with pistol grip provides stable and reliable storage for the mobile computer throughout the entire work shift. The device is firmly secured while being quick to insert and remove with an easy one-handed grip.

The holder is made of durable black ABS and Acetal plastic, engineered to withstand daily wear and tear in demanding vehicle and warehouse environments. Installation is done via an integrated mounting plate with a standardized AMPS hole pattern for direct attachment to pedestal mounts or ProClip mounting brackets.

Holder for Zebra TC501 - Optimal visibility and flexible tilt

The integrated tilt swivel allows the device to be tilted 17° in any direction to eliminate light reflections on the screen, and rotated 360° for quick switching between portrait and landscape orientation. The tilt swivel can be tightened to ensure the chosen angle stays firmly in place even under vibration and driving on rough surfaces.

Choose your variant for Zebra TC501

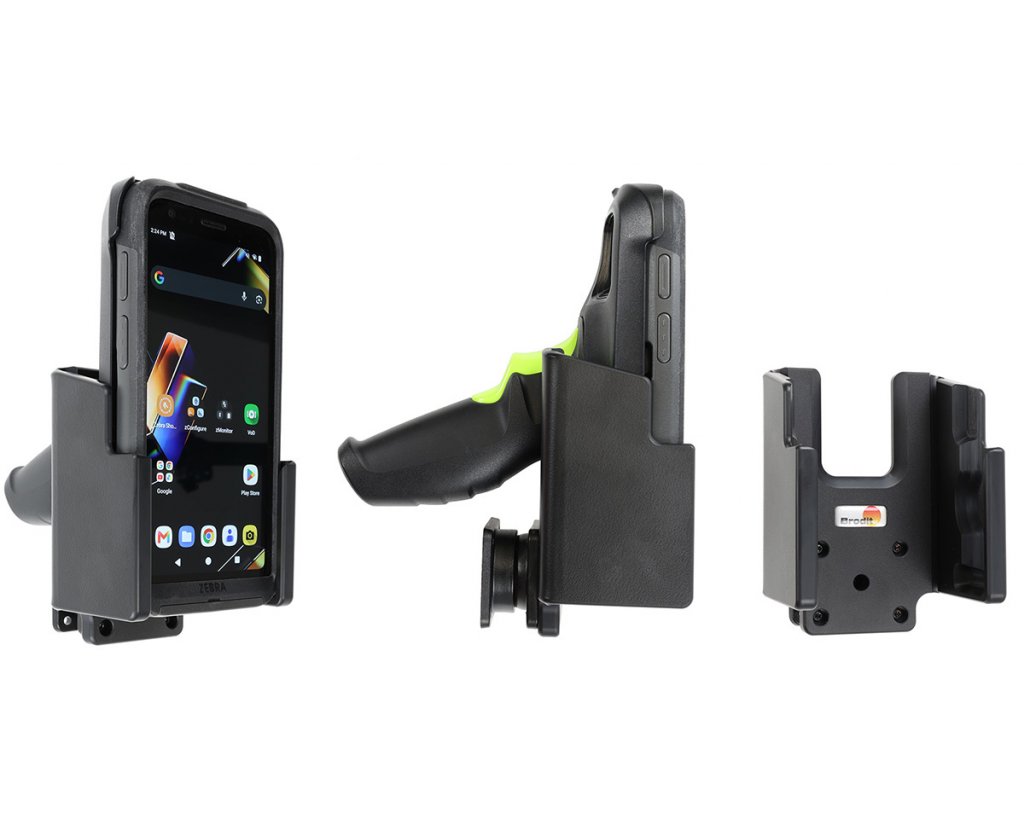

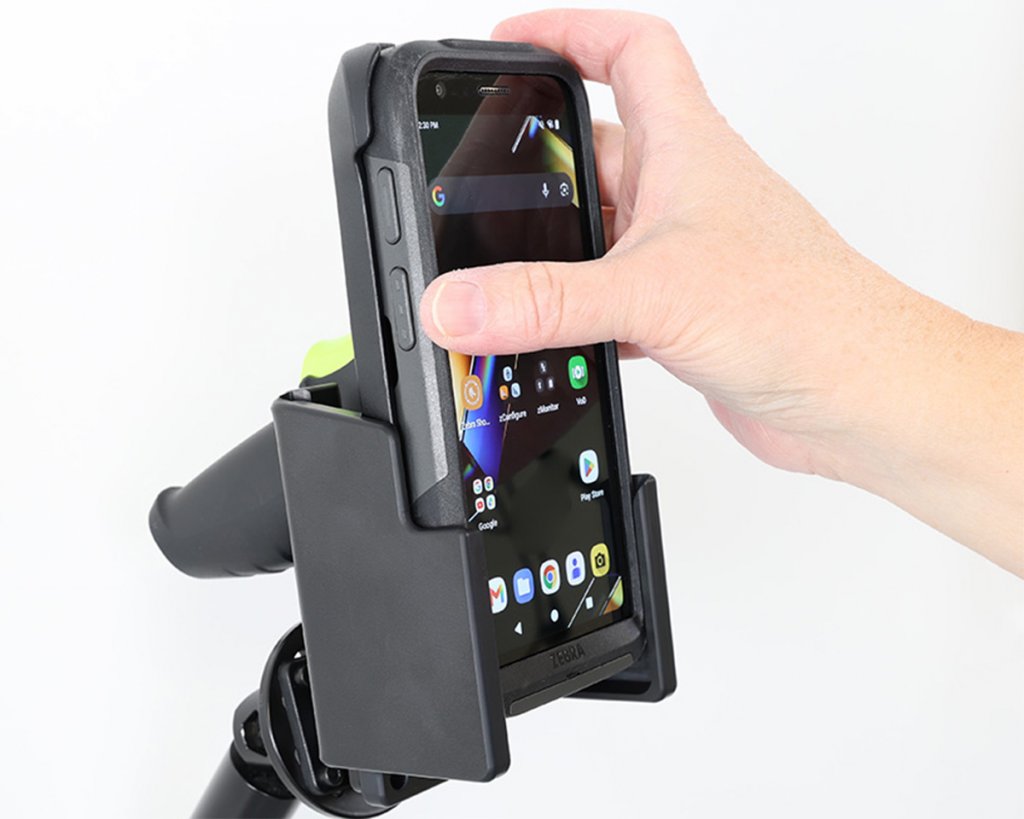

Screen facing outwards

Engineered for active operation where the display remains fully visible and directly accessible from the driver's seat or workstation.

Screen position: Facing forward towards the user
Access: Full access to screen and controls during operation
Dimensions: 120 x 90 x 86 mm

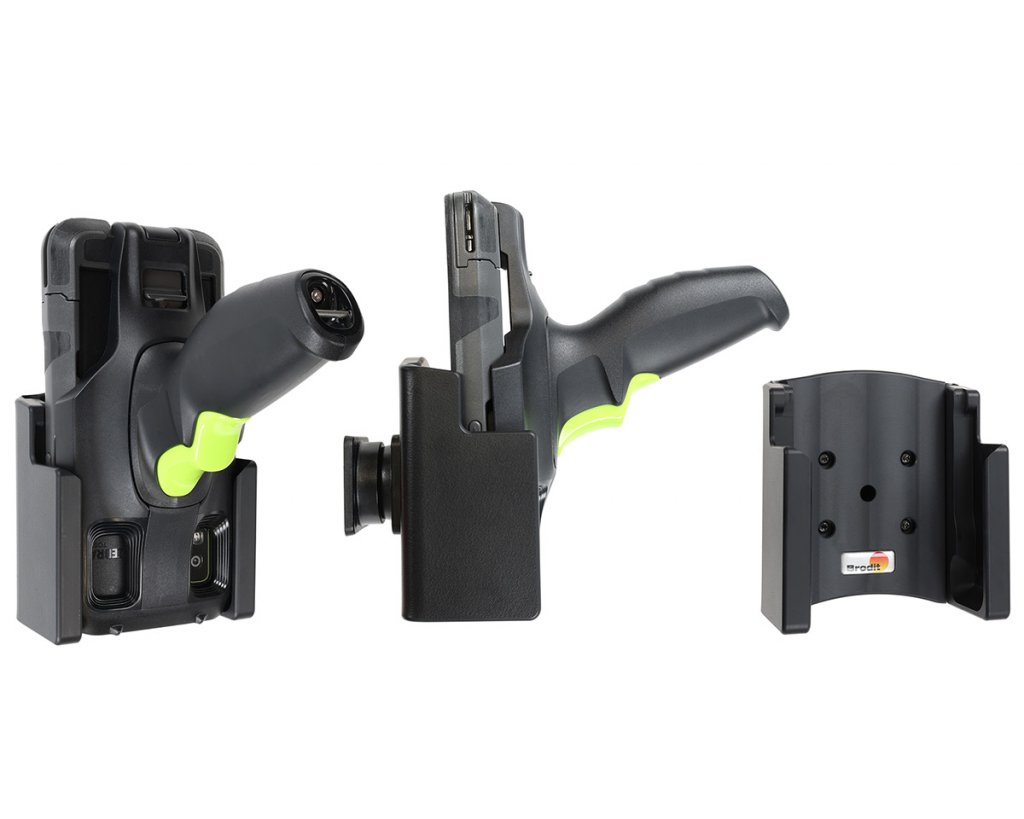

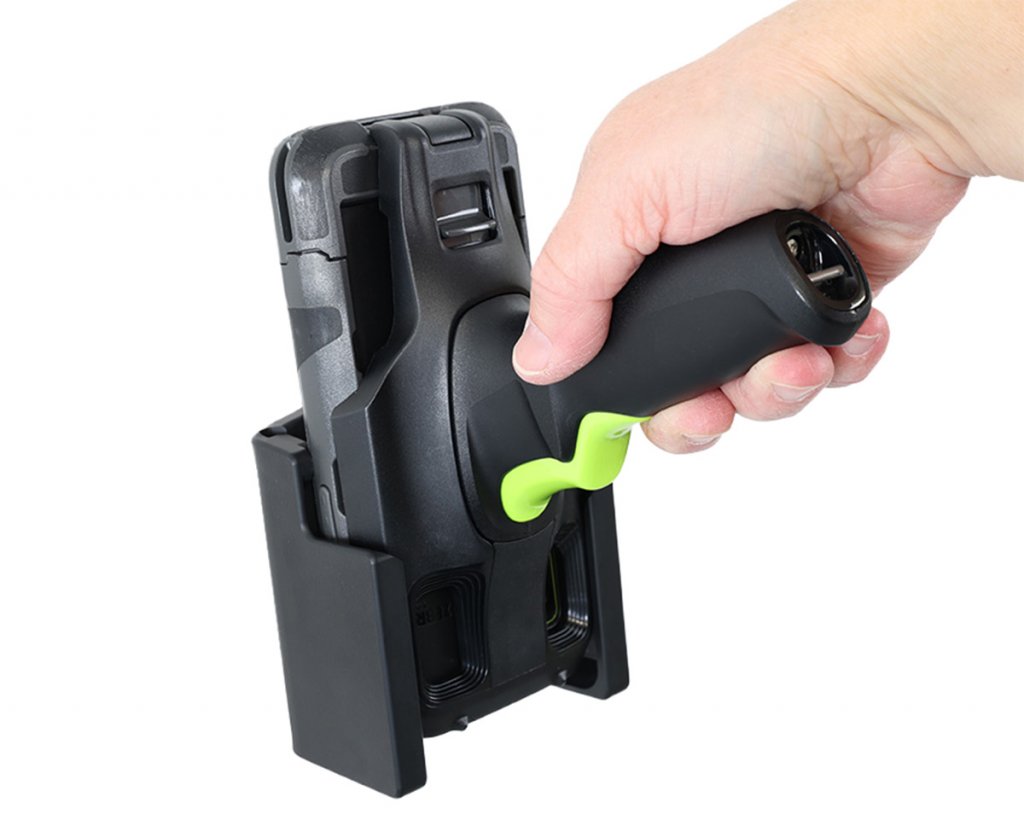

Screen facing inwards

Designed for environments with higher risk of external impacts, where the display is turned inward towards the holder to protect the glass from mechanical shocks and bumps during transit.

Screen position: Facing inward/downward in the holder for maximum display protection
Access: Quick one-handed docking and removal
Dimensions: 100 x 96 x 80 mm

Technical specifications

Compatibility: Zebra TC501 with pistol grip
Material: Black ABS and Acetal plastic
Tilt swivel: Tilts 17°, rotates 360°
Mounting plate: 42 x 50 mm
Hole pattern: AMPS standard (4 mm screw holes)
Design: Passive holder without integrated charging

What's included in the delivery?

Brodit passive holder for Zebra TC501 in the selected version with integrated tilt swivel, and 4 pcs 3x10 mm Phillips screws for mounting on a bracket or pedestal.

A dependable solution ensuring quick access and secure placement in all types of commercial vehicles.
