  2. Canbus interface for auxiliary lights for Volkswagen Polo from 2009-2017
Categories

Auxiliary light Volkswagen Polo from 2009-2017

  • Extra light Volkswagen Polo from 2009-2017
  • Volkswagen Polo extra light from 2009-2017
Item ID:  7513-2400
€106
Incl. VAT
Available
Available in external warehouse | Shipped within 2-7 working days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 2-7 working days
Product Description:

Flexible CANBUS interface for connecting extra lights Volkswagen Polo from 2009-2017. The CANBUS interface works just as well if you instead want to install a led ramp or other extra lighting in front.

Canbus interface - Extra light Volkswagen Polo

The CANBUS interface provides the control signal to your external relay set, which means that the auxiliary lights are started together with the car's main beam. If the car is equipped with adaptive high beam, this function will also be included in the auxiliary lights or the leading ramp.

The installation of the Volkswagen Polo auxiliary lights is specific to the car's electrical system. The CANBUS interface needs contact with the CAN HI and CAN LO functions to be able to read when the car's high beam is activated.

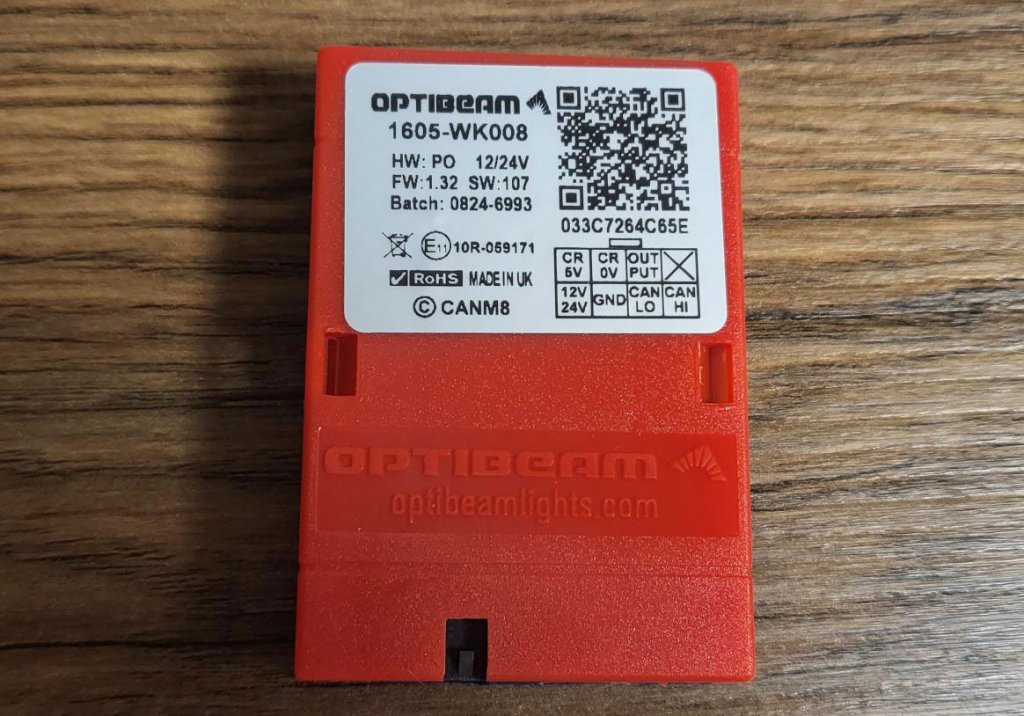

The CANBUS interface has a hidden LED next to the connector that indicates the status of contact with the vehicle as shown below:

Solid red: CANBUS interface has contact but the vehicle is not identified
Flashing red: the CANBUS interface is in contact with the vehicle and checking the vehicle status
Solid green: CANBUS interface is in contact and the vehicle is identified
Flashing green: the CANBUS interface is in contact and the vehicle is identified, and the CANBUS interface indicates that the vehicle is moving

From the CANBUS interface you get 5 cables with the following functions:

  • RED - Connects to +12V from the car battery/plus pole (fused 5A)
  • BLACK - Connects to a ground point / negative terminal on the car battery
  • WHITE - Connects to CAN HI (connection point specified in the installation instructions)
  • BLUE - Connects to CAN LO (connection point specified in the installation instructions)
  • PURPLE - Connects to external relay input 85 (control current/relay switching), providing +12V (maximum 1A)

Installation instructions are attached below.

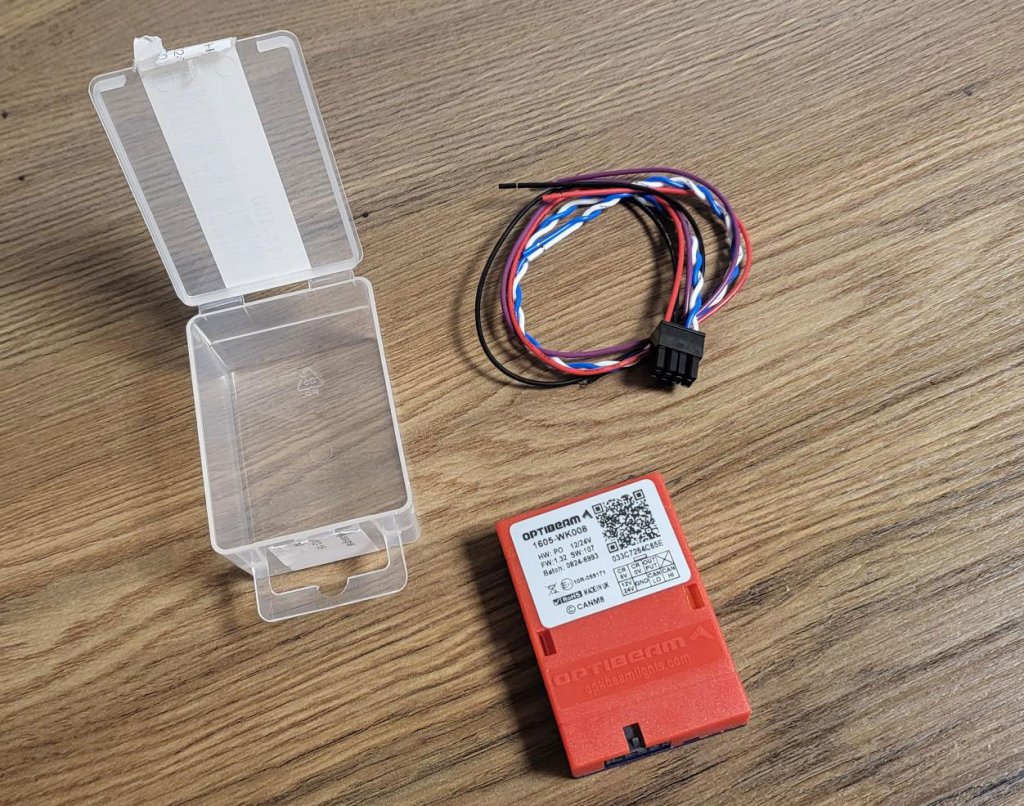

Canbus interface - Extra light Volkswagen Polo delivered individually


Fits the following car models:

Volkswagen Polo from 2009-2017

Cars manufactured from June 2009 to September 2017

Volkswagen Polo 2006-2008 Volkswagen Polo 2009-2017 Volkswagen Polo 2018-

Body code: 6R

Engine:

  • Gasoline
  • Diesel

Body:

  • Hatchback

Assembly time: about 60 minutes

Warranty: 1 year warranty
