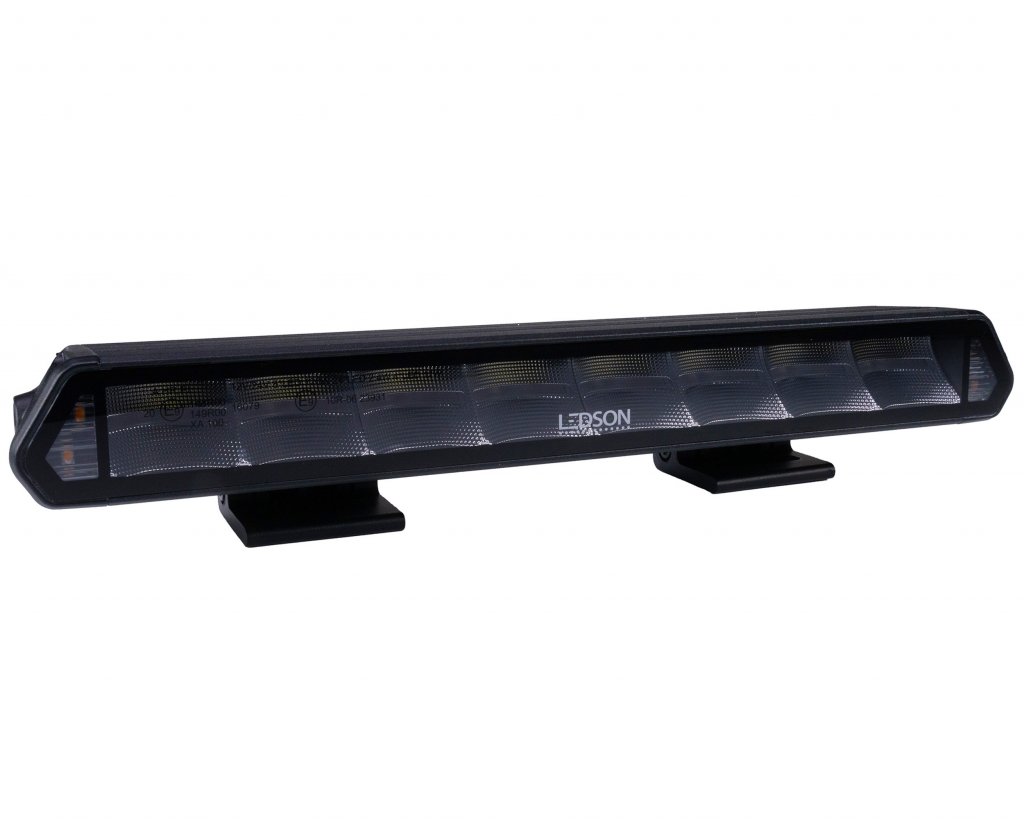

LEDSON EPIX14+ Work Strobe LED light bar - 357 mm

Item ID: 334915084

€269

Incl. VAT

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

Treat yourself to the best with the EPIX14+ Work Strobe from Ledson's exclusive Epix+ range. This work strobe is designed to not only meet but exceed your expectations. With Ledson's proprietary and sporty design, it is perfectly suited for today's modern vehicles.

Key Features:

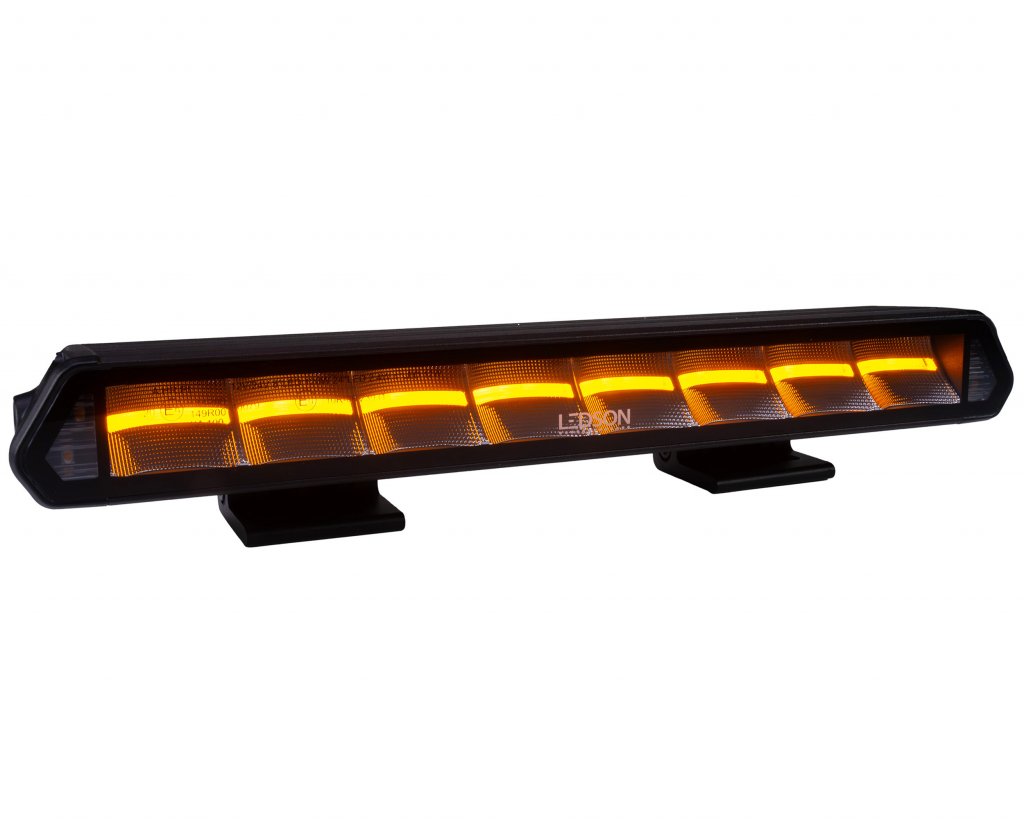

Flexible Position Light: Choose between red and yellow/orange position light to customize the lightbar to your needs.
- The unique reflectors of the Epix series with dynamic ignition of the position light provide a modern and eye-catching light image.
R65 Approved Flashing Light: Improve your visibility and safety with the integrated R65 approved flashing light.
- The Epix14+ Work Strobe is equipped with 10 different flash patterns, one of which is ECE R65 approved. By simply connecting two units, you can have both synchronous and asynchronous flash patterns between them. Use your Epix14+ Work Strobe as a work light or reversing light (not R23 approved); the strobe turns off when switched on and then returns to your previously selected flash pattern immediately when you turn the work light off again.
Innovative Design: The unique position light is fully integrated into the reflector, providing a clean and efficient light pattern.

EPIX14+ Work Strobe is not just a work light - it's an investment in quality, safety and modern design. Perfect for professionals who demand the best for their vehicles.

Features include

R65 approved strobe light with 10 different strobe patterns
E-marked CE R148 (R1, SM1), R65
EMC-protected according to ECE R10
"Driving beam" light pattern (wide and oblong)
9 800 lumens (theoretical), 7 300 lumens (actual)
Color temperature 5000K (neutral white)
Range 119 m (1 lux)

Technical data

120 W (8 x 15 W LED)
IP69K (water/dust proof)
Aluminum housing and polycarbonate lens
DT connector 6-pin (included)
Voltage: 9-36 V

Flash light pattern

Single flash synchronized: 2.2 Hz
Single flash asynchronous: 2.2 Hz(when using 2 ramps)
Triple flash synchronized: 1.1 Hz
Triple flash asynchronous: 1.1 Hz(when using 2 ramps)
Quadruple flash synchronized: 1.25 Hz
Quadruple flash asynchronous: 1.25 Hz(when using 2 ramps)
Combination (one long and five short) synchronized: 0.83 Hz
Combination (one long and five short) asynchronous: 0.83 Hz(when using 2 ramps)
Flash series synchronized: 10 Hz
Flash series asynchronous: 10 Hz(when using 2 ramps)

Dimensions: Dimensions

Width: 357 mm
Height: 43 mm (excluding brackets)
Depth: 61 mm
Weight: 1,2 kg

What is included in the LED ramp package?

EPIX14+ Work Strobe LED Ramp
Bolts and screws to fix the ramp.
Mounting hardware for end mounting.
Mounting hardware for rear mounting, standing/hanging.
DT connector - 6-pole
Installation instructions (Also available further down the page)

What else is needed?

DT relay kit: We strongly recommend using the Ledson cable set with 1 x 6-pin DT (part no 7801006). The Ledson Connect makes your connection easy and at the same time it is connectable to easily expand with more extra lights or ramps.

The DT connector must not be cut off, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.

Delivered individually

Documents:
attachment

Assembly instructions for article 334915084 - EPIX14+ Work Strobe
