Grille kit Lazer Ford Transit Connect 2024-

Item ID:  26013-831E
€897
Incl. VAT

Which variant do you want?

€897
Available in external warehouse | Dispatched within 1-4 working days
€1 053
Available in external warehouse | Dispatched within 1-4 working days
Available
Available in external warehouse | Dispatched within 1-4 working days
.
Select options
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days
Product Description:

Complete auxiliary light package containing everything you need for installation on Ford Transit Connect from 2024 onwards.

Complete auxiliary light package Lazer Ford Transit Connect containing model-specific 3D-printed mounting details, a relay kit, and the Lazer Linear 18 light bar. You choose whether you want the Lazer Linear 18 Elite or the Elite+ model for an even wider light pattern and higher output.

Auxiliary light package Lazer Ford Transit Connect

Linear 18EliteElite+
Voltage10-32V10-32V
Luminous Flux13500 lm14 850 lm
Color Temperature5000 K5000 K
Number of LEDs36 pcs36 white 18 yellow
Position LightNoYes
Power130 W190 W
Current Draw (at 14.4V)9 A14.1 A
Certification
Reference Number2 x 25
(2 x 10 E-marked mode)
27.5
High BeamECE R112ECE R149

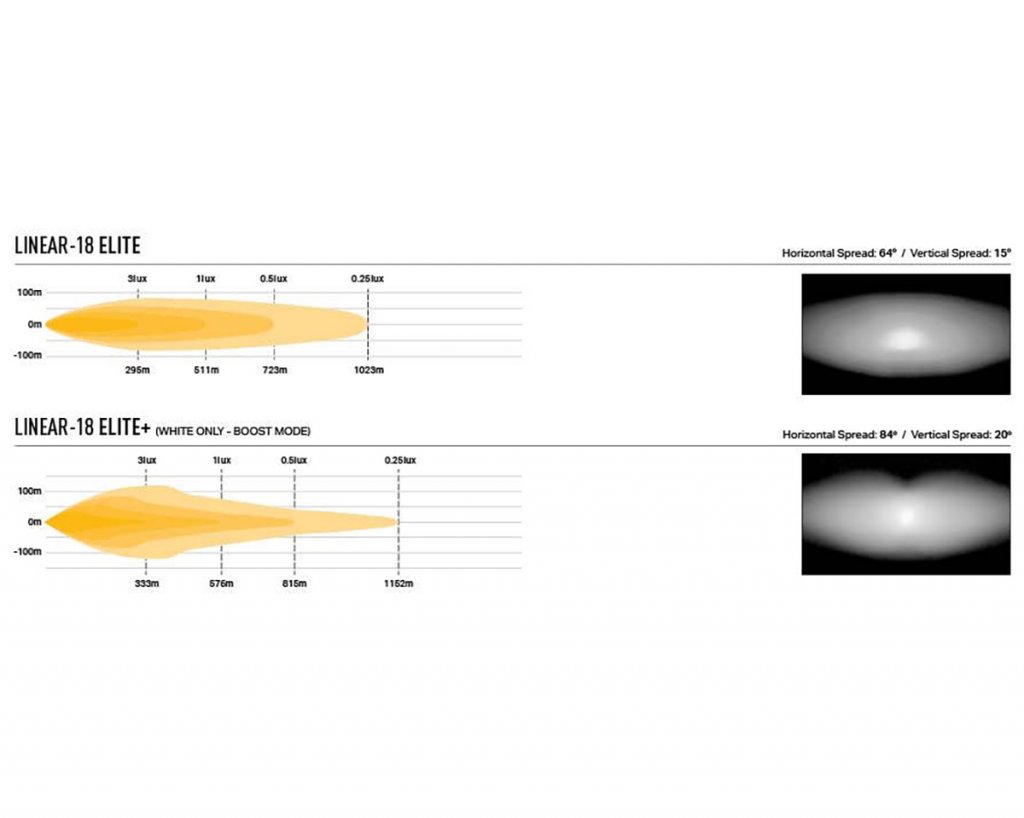

Light Pattern
Horizontal Beam Angle64 degrees84 degrees
Beam Range (1 lux)511 meters608 meters
Beam Range (0.25 lux)1023 meters1216 meters

Installation

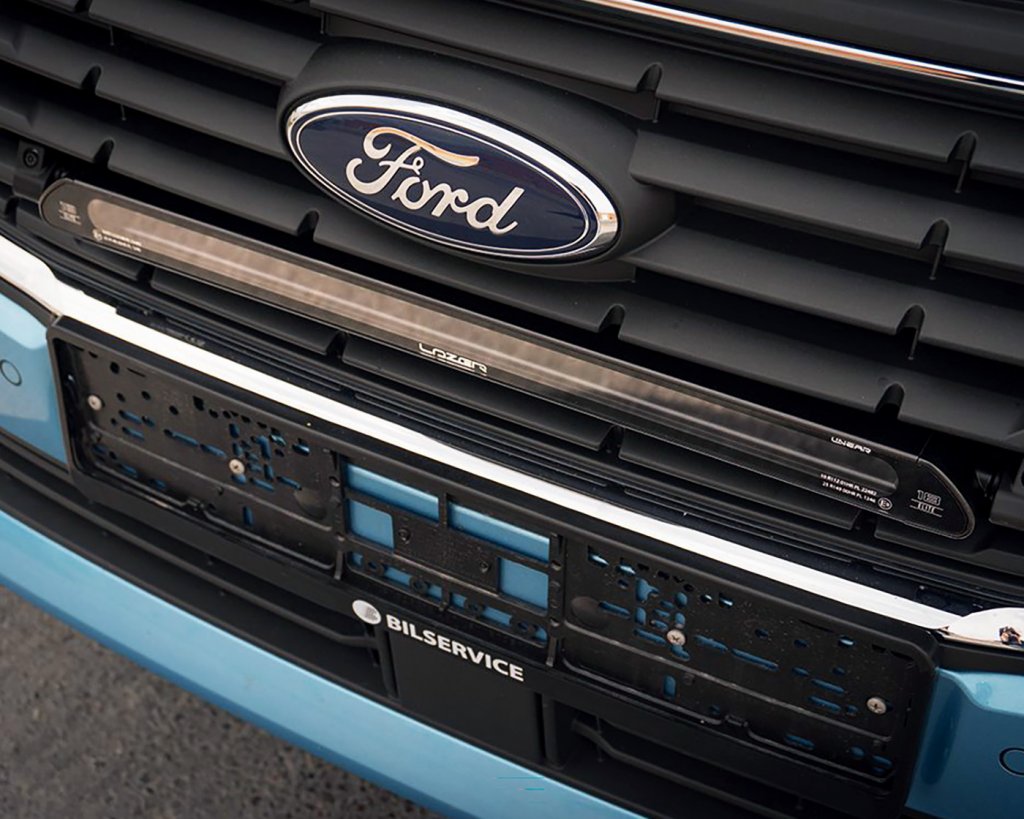

  • The installation requires modification of the vehicle's grille. The mounting kit includes 3D-printed cutting templates for precise mounting. The LED light bars are then mounted with the corresponding 3D-printed mounting brackets.

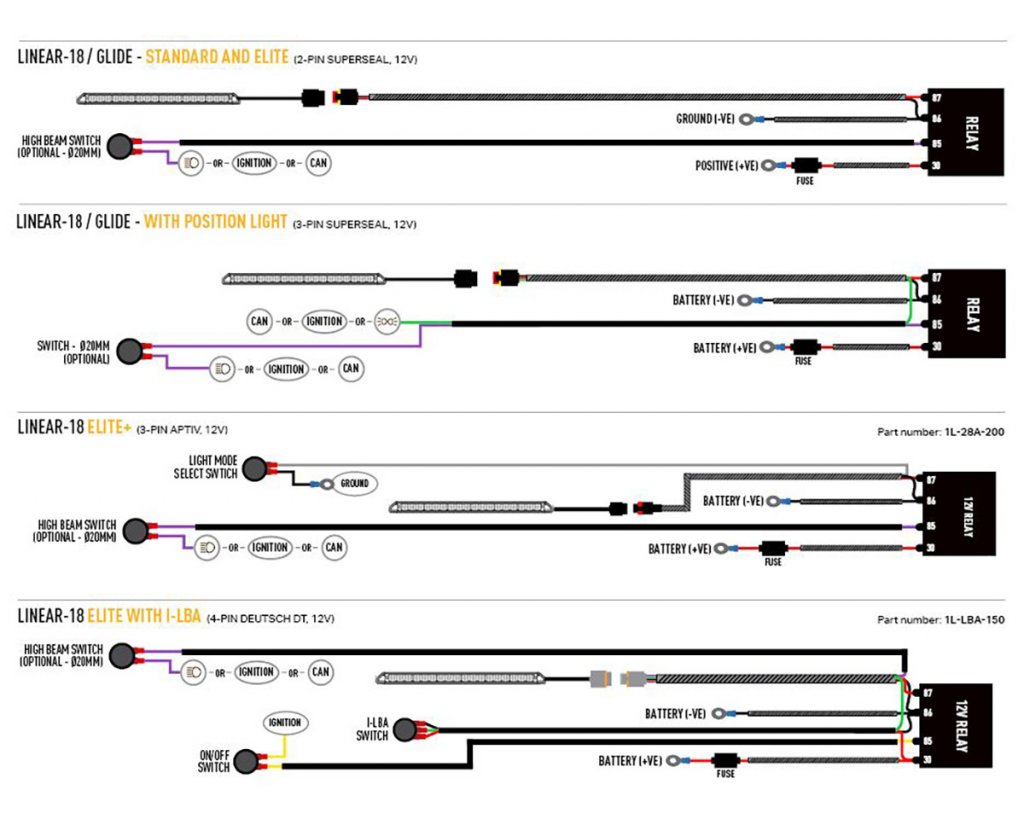

Wiring
  • Depending on your vehicle's trim level and headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included in the kit and must be purchased separately.
What is included in the Lazer Ford Transit Connect auxiliary light package
  • 1 pc Lazer Linear 18

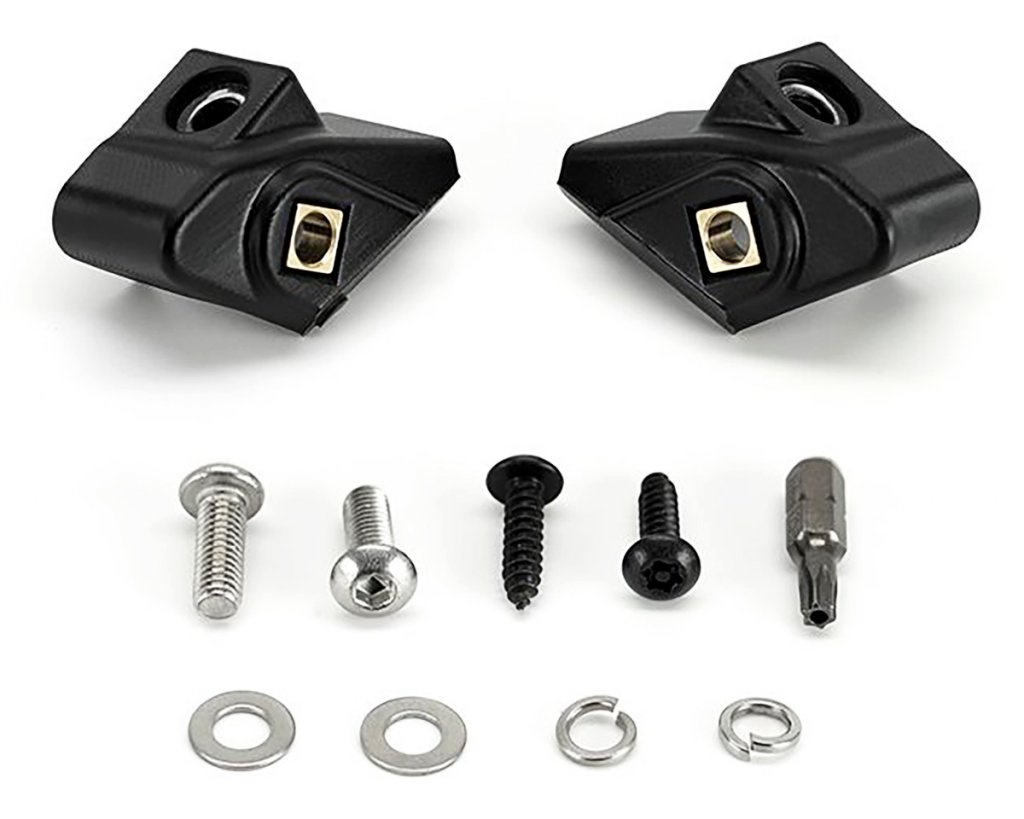

  • Mounting details
  • Relay kit
  • Installation instructions

The Lazer Ford Transit Connect auxiliary light package is delivered as a complete kit


Documents:
attachment Assembly instructions for article 26013-831
attachment Lazer Linear 18 Elite - Product information
attachment Lazer Linear 18 Elite+ - Product information


Engine:

  • Petrol
  • Diesel
  • Plug-In Hybrid (Petrol)

Body Type:

  • Van
