Extra light package Lazer Ford Transit Connect

Item ID: 2628-831

€747

Incl. VAT

Which variant do you want?

Lazer Linear 18 - 6750 lumen

2628-831

€747

Available in external warehouse | Ships within 1-4 business days

Lazer Linear 18 Elite - 13500 lumen

2628-831E

€931

Available in external warehouse | Ships within 1-4 business days

Assembly parts only

2628-831M

€116

Available in external warehouse | Ships within 1-4 business days

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

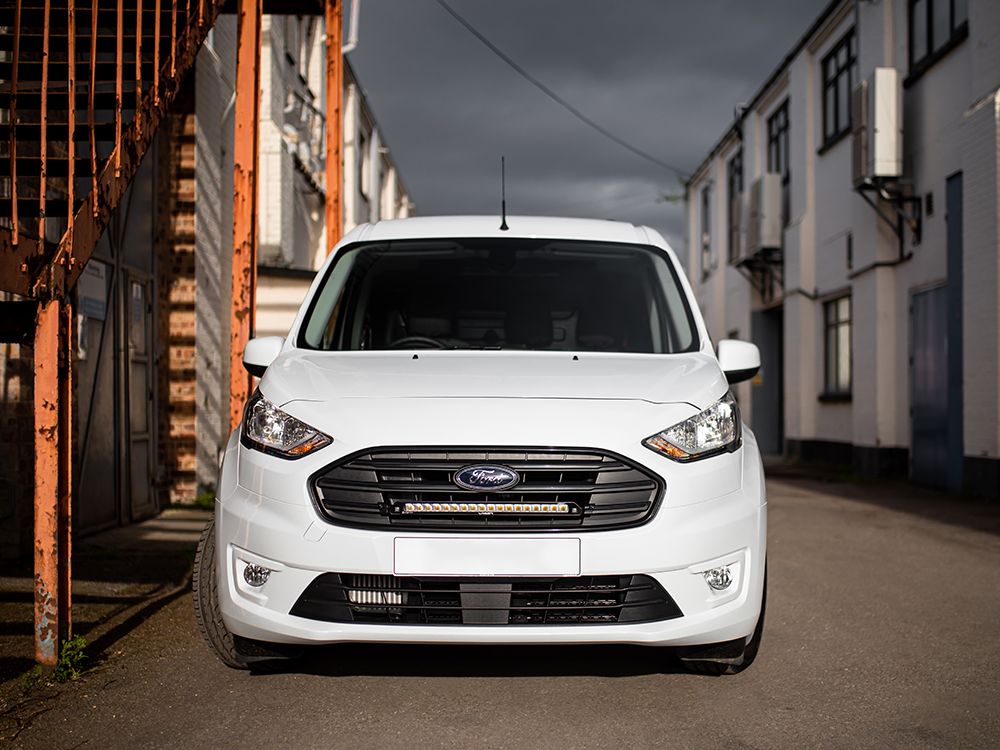

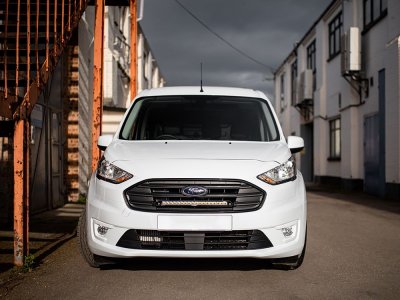

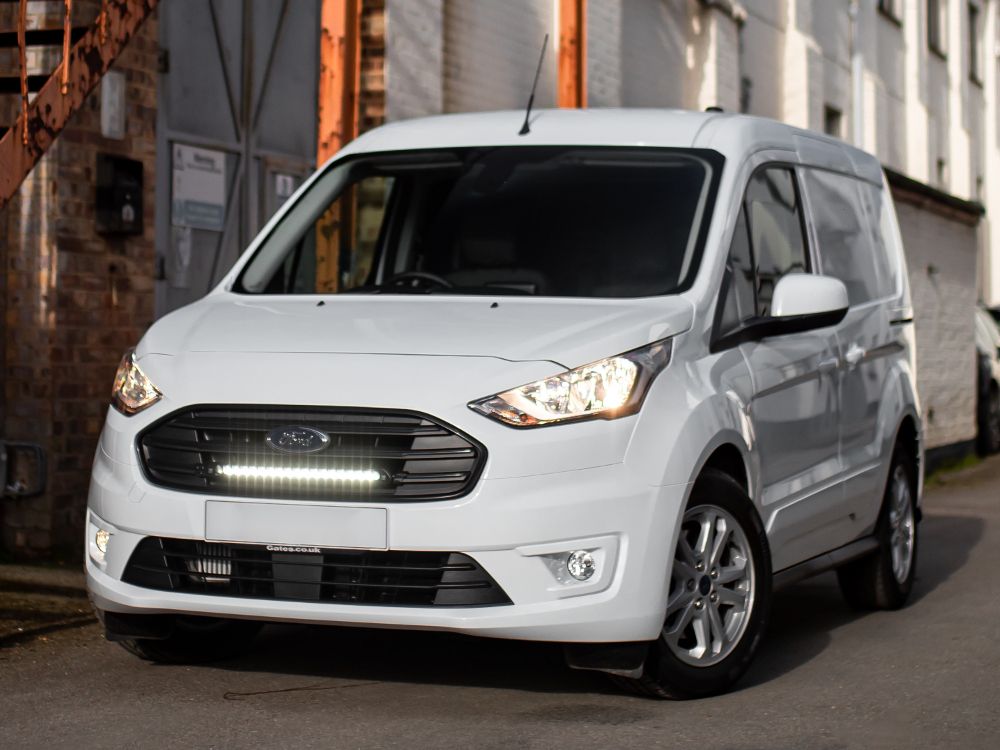

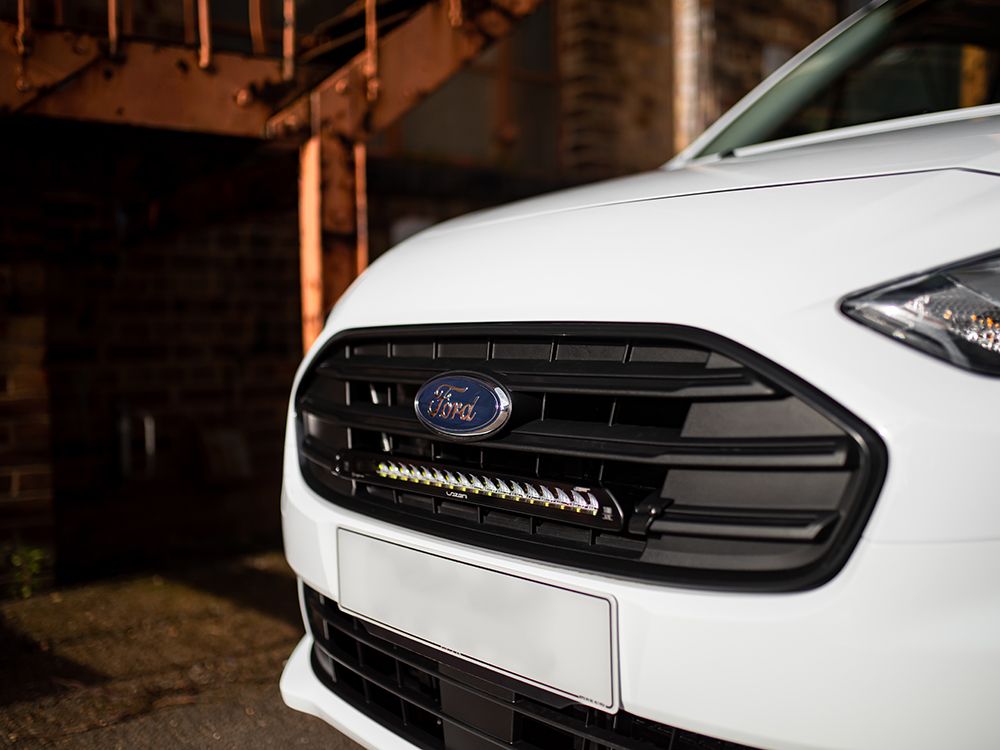

Complete auxiliary light kit containing everything you need for installation in the upper grill of Ford Transit Connect from 2018-2024.

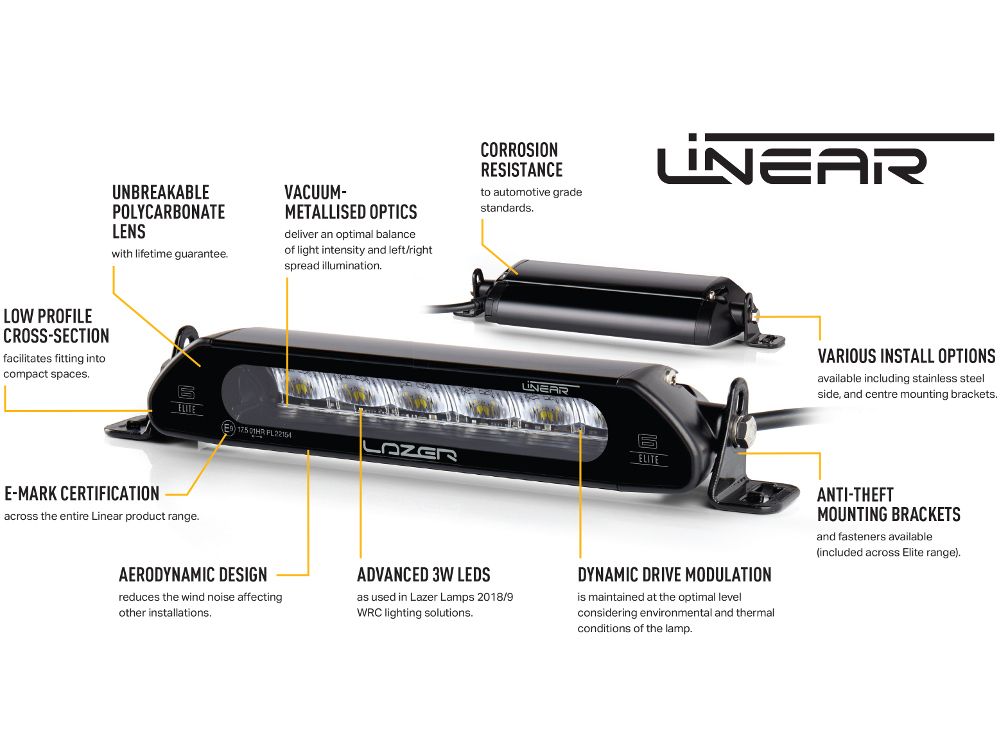

Complete extra light package Lazer Ford Transit Connect containing model-specific 3D printed mounting parts together with relay kit and Lazer ramp Linear 18. You choose whether you want the Lazer Linear 18, or the Elite model for longer range and increased power.

Extra light package Lazer Ford Transit Connect

Linear 18	Standard	Elite
Voltage range	10-32V	10-32V
Luminous flux	6750 lm	13500 lm
Color temperature	5000 K	5000 K
Number of LEDs	18 pcs	36 pcs
Position light	No. No.	No, no, no
Power output	63 W	130 W
Load (at 14.4V)	4,4 A	9 A
Certification
Reference number	30	2 x 25 (2 x 10 E-marked mode)
High beam	ECE R112	ECE R112
Luminous flux

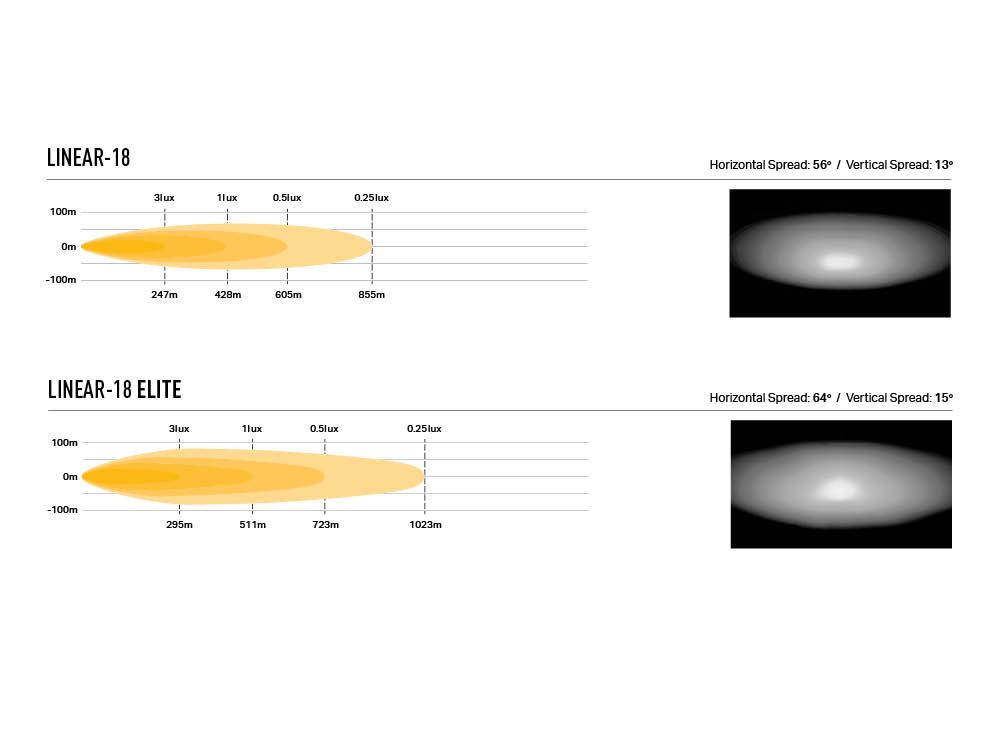

Light angle horizontal	56 degrees	64 degrees

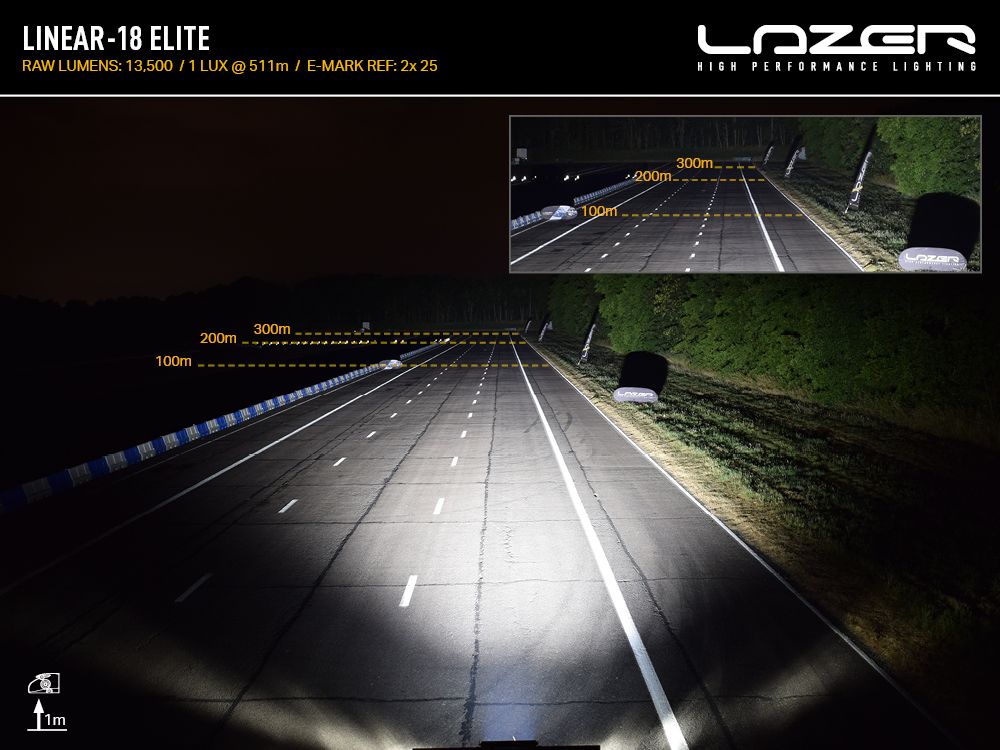

Range (1 lux)	428 meters	511 meters
Range (0.25 lux)	855 meters	1023 meters

Installation

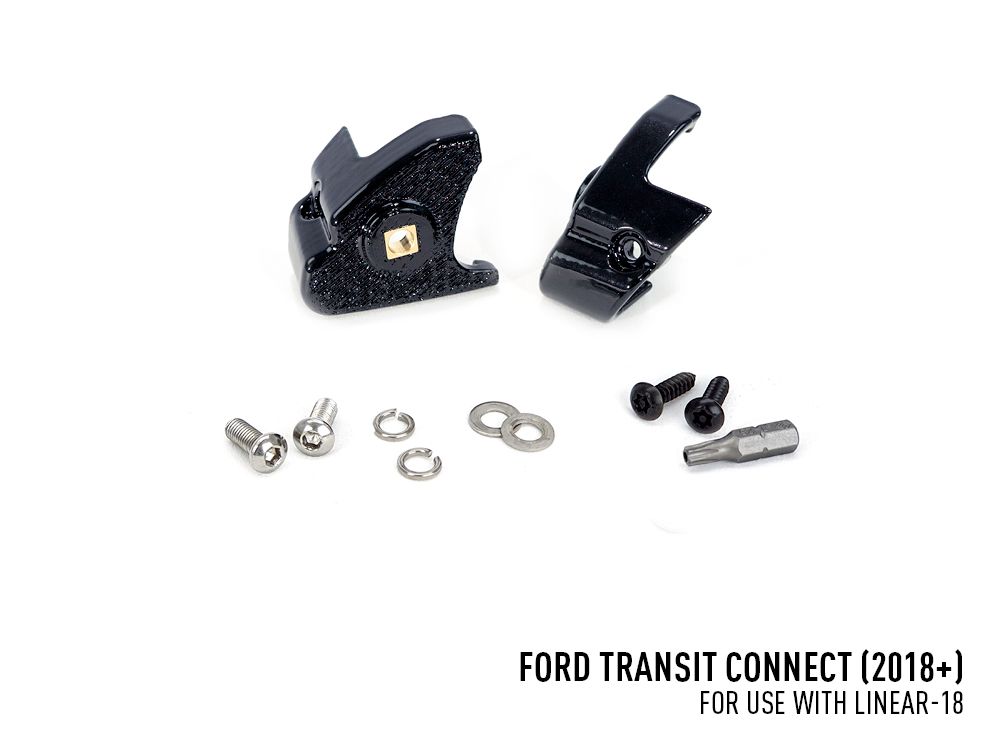

Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

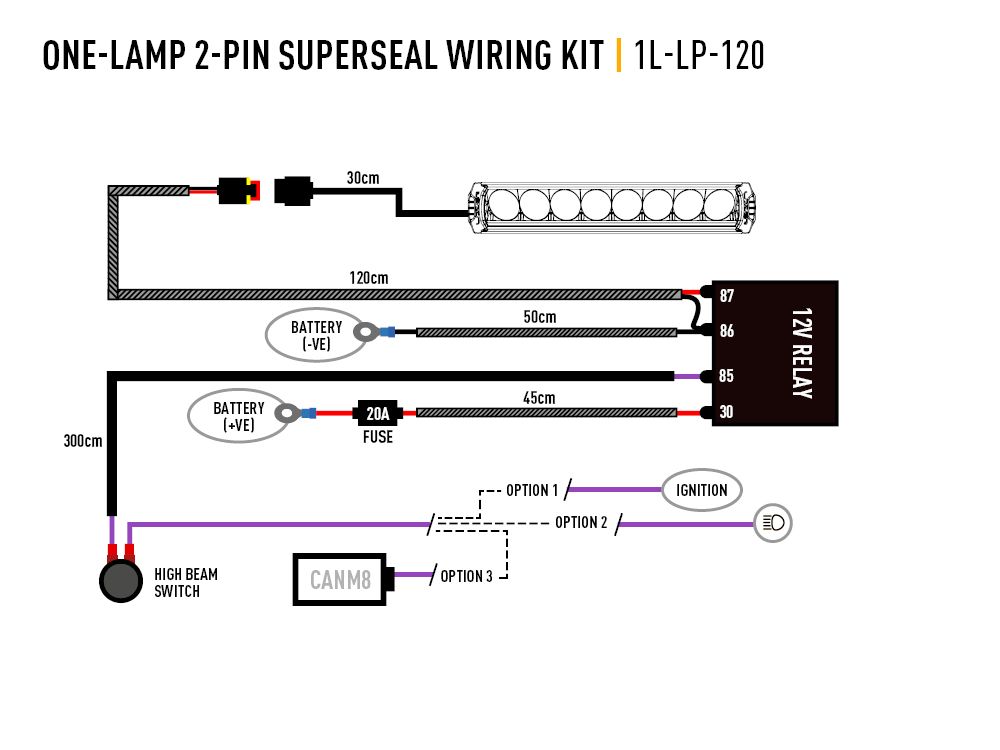

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.

What is included in the Lazer Ford Transit Connect auxiliary light kit

1 x Lazer Linear 18
Mounting details

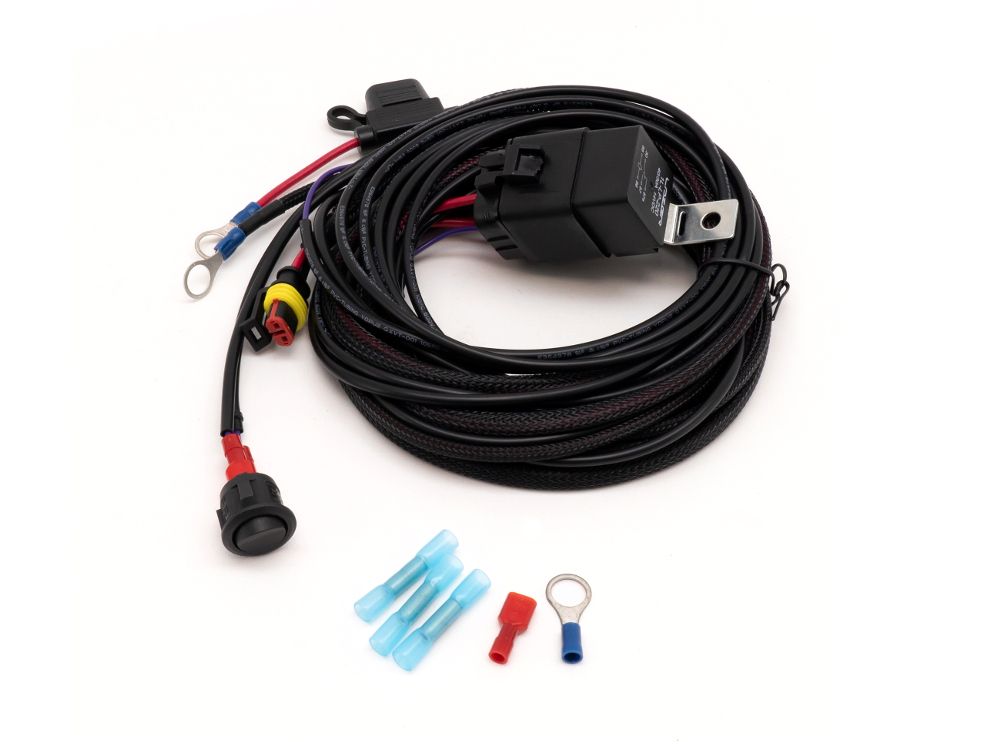

Relay kit
Mounting instructions

Lazer Ford Transit Connect extra light kit is delivered as a complete kit

Documents:
attachment

Mounting description for led light bar 2628-831
