LEDSON EPIX30+ LED ramp kit for Volvo FH4 from 2013-2020

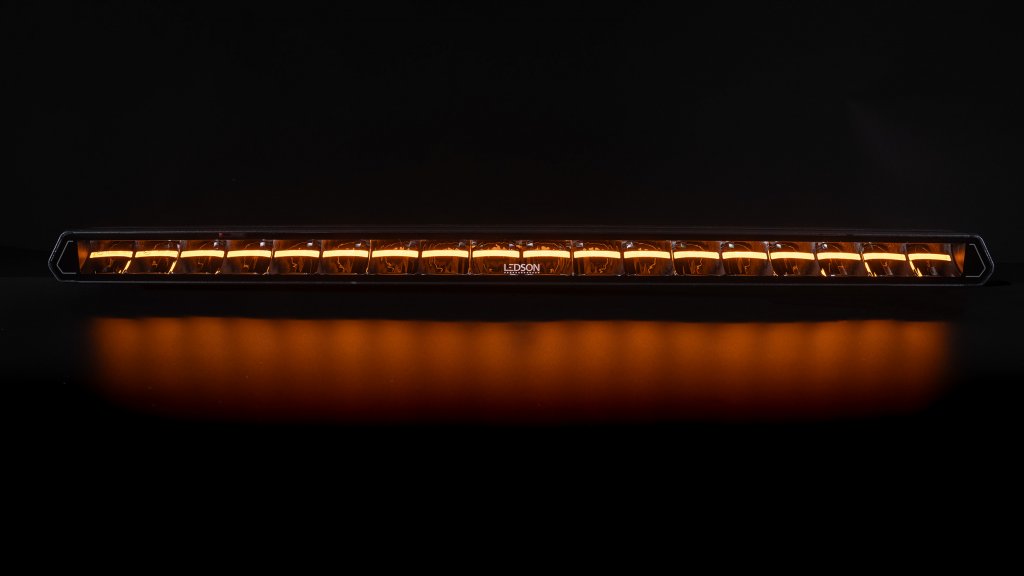

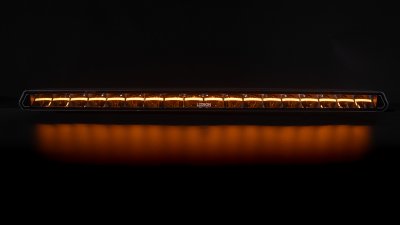

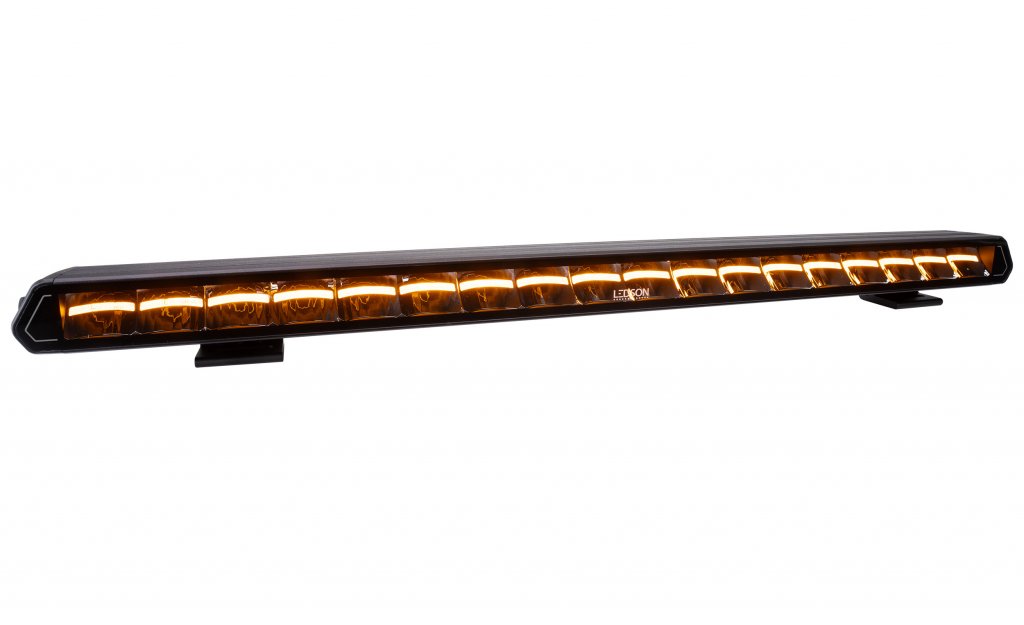

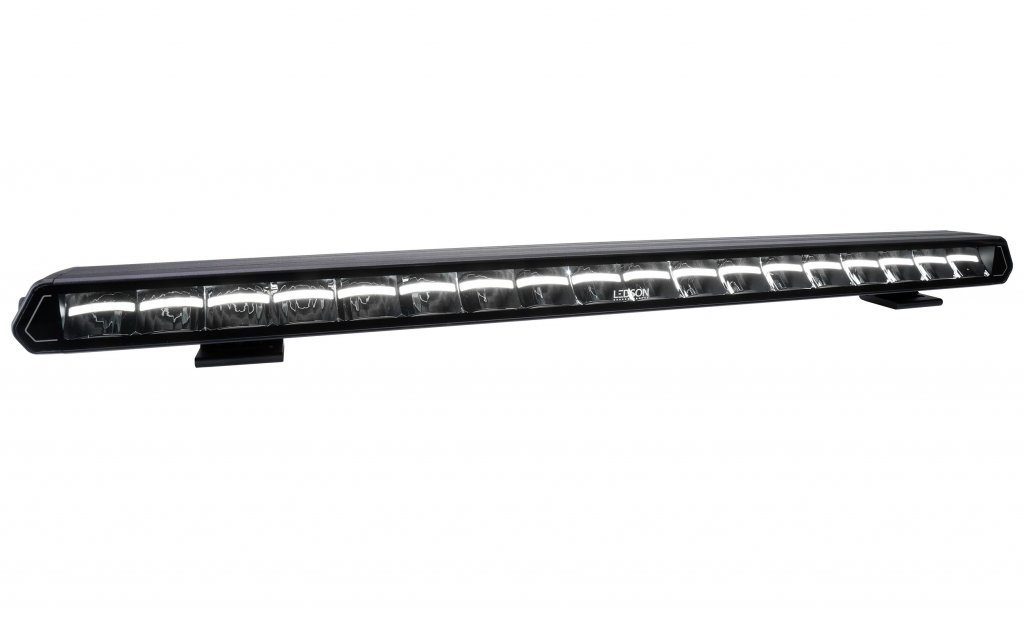

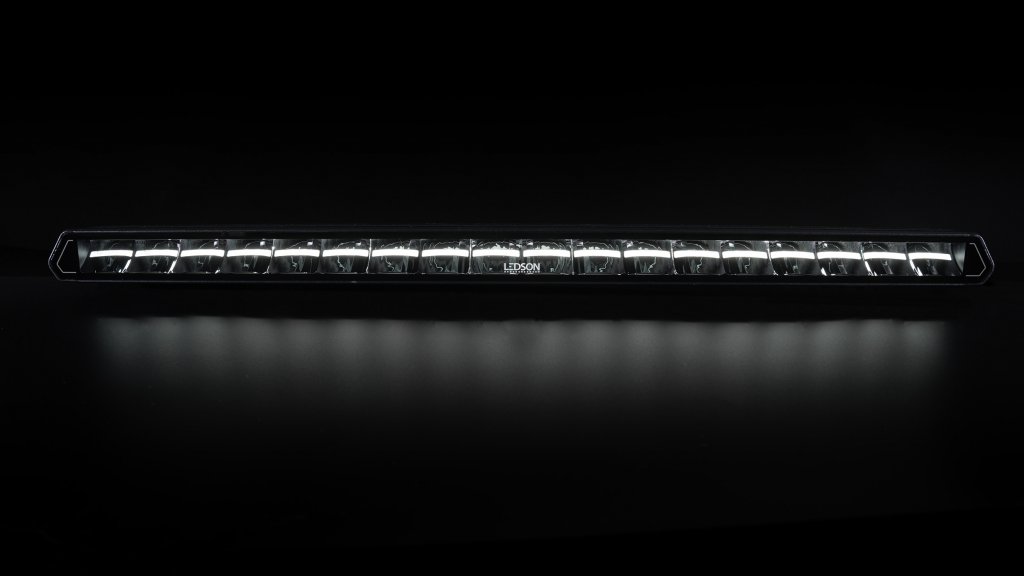

LED light bar Ledson EPIX30+ Volvo FH4 2013-2020

Item ID: 1360264

€545

Incl. VAT

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

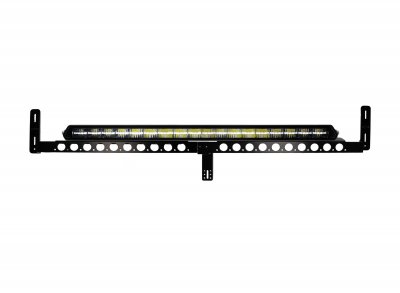

LED ramp Ledson EPIX30+ for Volvo FH4 from 2013-2020. With our specially designed mounting kit you can easily and cost-effectively install the LED ramp, with the possibility to choose the mounting position that suits you best. The ramp can be mounted hidden behind the front grille or visible through the grille, either at the top or bottom grille. Mounting instructions can be found here.

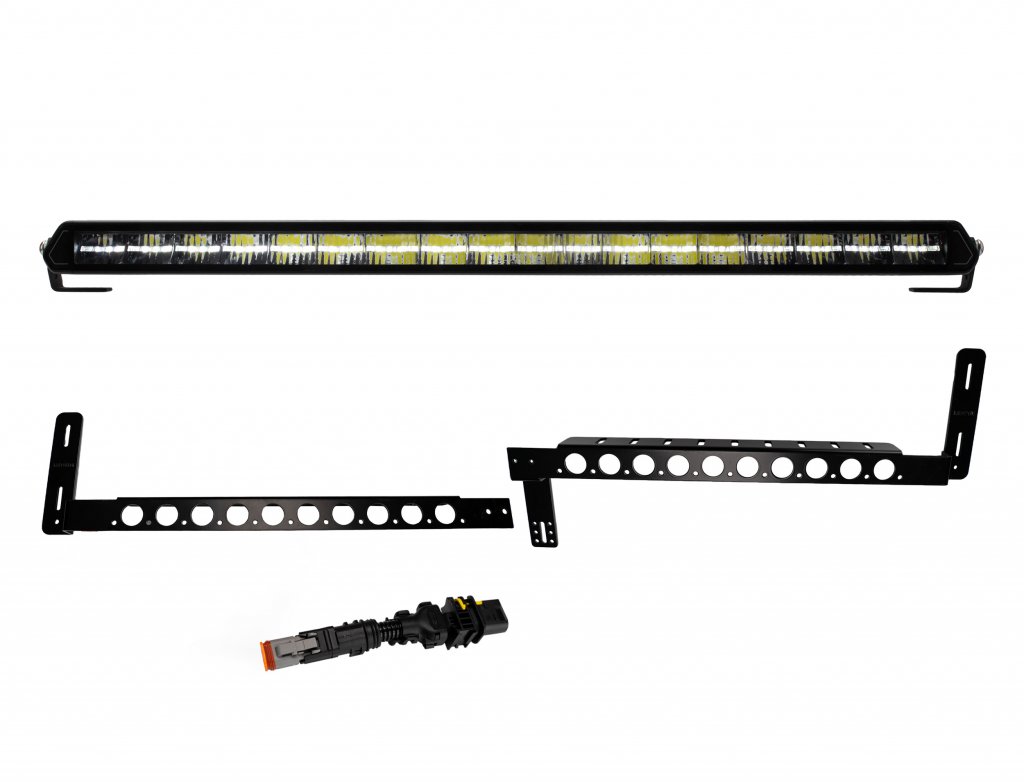

What is included in the kit:

EPIX30+ LED Ramp 30 inch
Mounting kit with all the necessary parts for a quick and easy installation, including mounting instructions
Adapter cable with Volvo plug

Features Epix30+ LED ramp

E-marked R112 (approved as auxiliary light), R7, R10 (EMC rated)
EMC-protected according to ECE R10
"Driving beam" light pattern (wide and oblong)
23 200 lumens (theoretical), 16 300 lumens (actual)
Color temperature 5000K (cool white)
Range 458 m (1 lux), Powerboost: 672 m (1 lux)

Technical data Ledramp Epix30+

270 W (18 x 15 W LED)
IP69K (water/dust proof)
Aluminum housing and polycarbonate lens
DT connector 4-pole (included)
Voltage: 9-36 V

Dimensions Epix30+ led frame

Width: 740 mm
Height: 43 mm (excl. brackets)
Depth: 61 mm
