Split system 9" monitor incl. 3 standard cameras

  • Rear view camera system splitscreen 9 inch with 3 standard cameras
  • Rear view camera system splitscreen 9 inch with 3 standard cameras
  • Rear view camera system splitscreen 9 inch with 3 standard cameras
  • 9” split screen rear view camera system with 3 standard cameras
Item ID:  VN-910SS

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

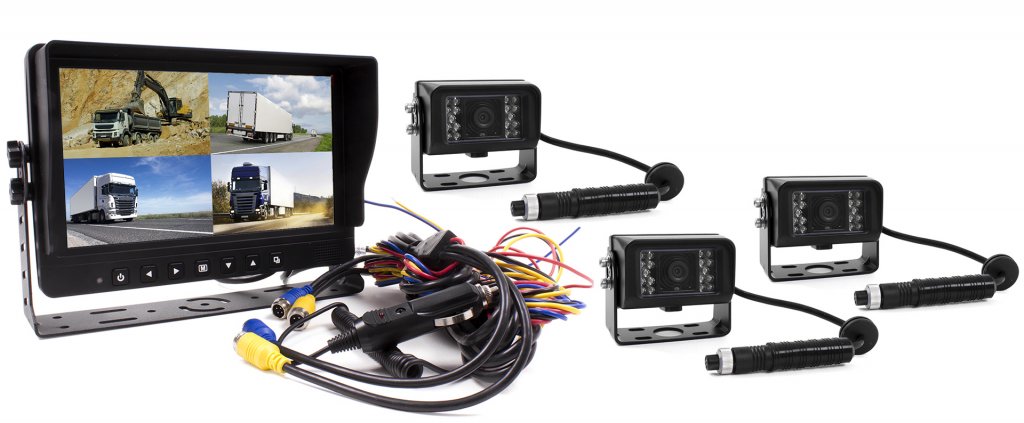

9 inch monitor RM90SS with the function to display images from several cameras at the same time (splitscreen). The package contains 3 cameras of the type RC25. RC25 is our standard camera, a wired camera with very good image reproduction.

The 9-inch screen is very well suited for professional use. Used advantageously in eg. truck, machine, truck, bus, camper, forestry machine etc. This is a screen that reproduces a very clear and detailed image, but which also has a fast response time. The matte screen surface and the included sunshade minimize reflections. The keypads are backlit with LED technology.

The screen can display images from up to 4 cameras simultaneously. The package includes 4 cables that are 10 m each. These can be exchanged for other lengths on request.

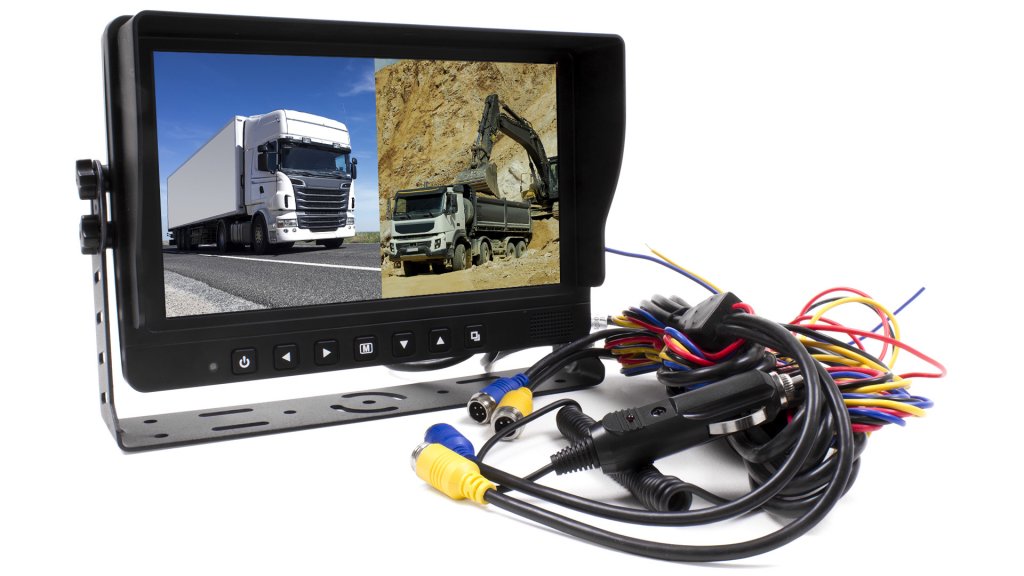

Monitor RM90SS:

  • Screen type: 9-inch digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Resolution: 800 x 480
  • Contrast: 500:1
  • Brightness: 400 cd/m2
  • Camera connections: 2 pcs
  • Dimensions incl. bracket: W 224 mm x H 179 mm x D 81 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes

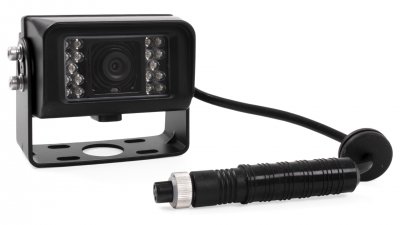

Rear view camera RC25:

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • Dimensions incl bracket: W 82 mm H 73 mm D 68 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 18 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G


To the web shop's start page »

Sitemap »


Recommended accessories

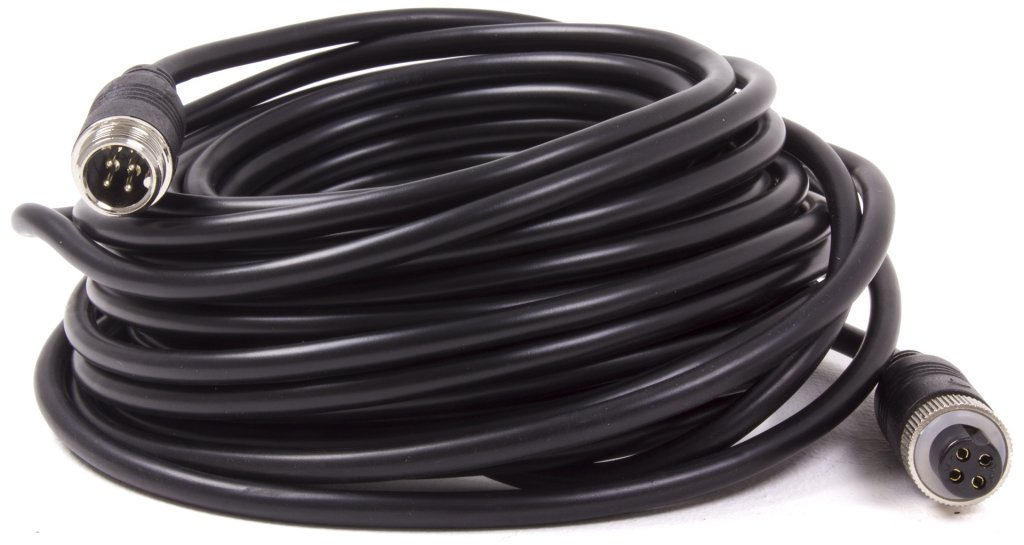

  • Extension cable 10 m. For rear view camera and screen.
