Rear view camera system
7.0’ split screen system

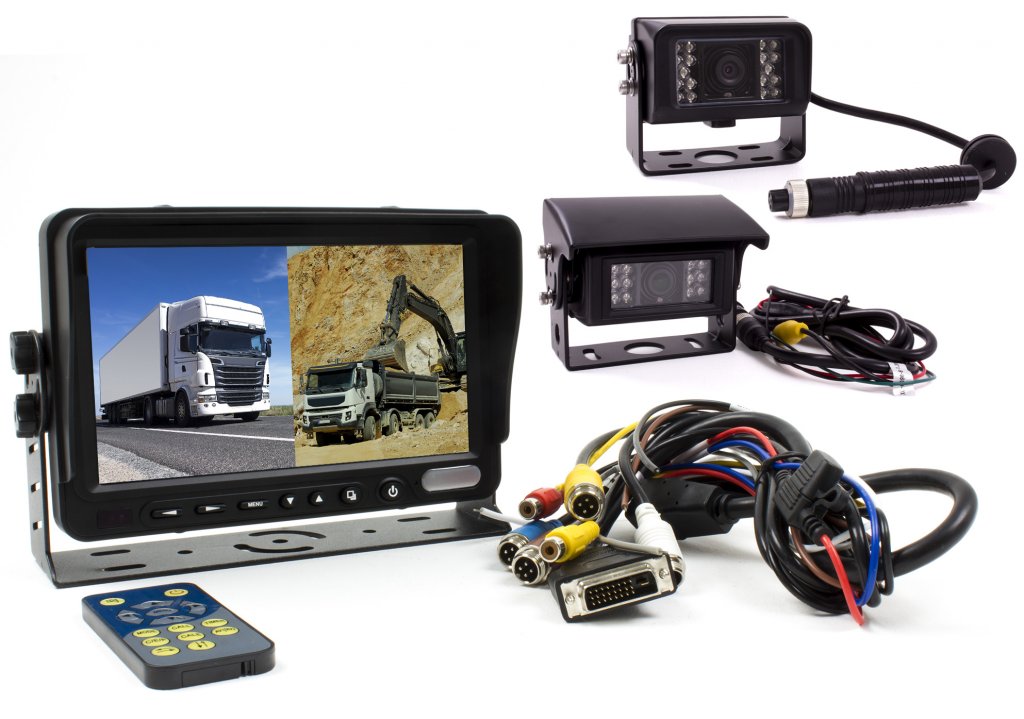

Split system 7" monitor incl. 1 standard camera & 1 visor camera

Split system 7" monitor incl. 1 standard & 1 visor

Item ID: VN-740SS-55

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

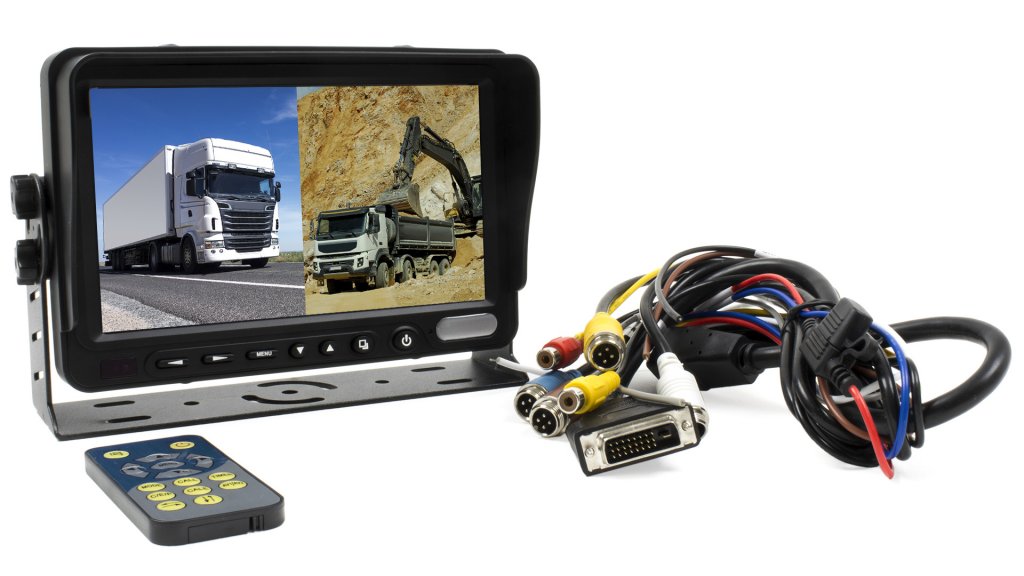

The 7" monitor is very suitable for professional use. Suitable for most types of industries and installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. The LCD screen provides a detailed image and has a fast response time.

Matt screen surface and sun protection minimize reflections. The keypads are backlit with LED technology.

The screen can display images from up to 4 cameras simultaneously.

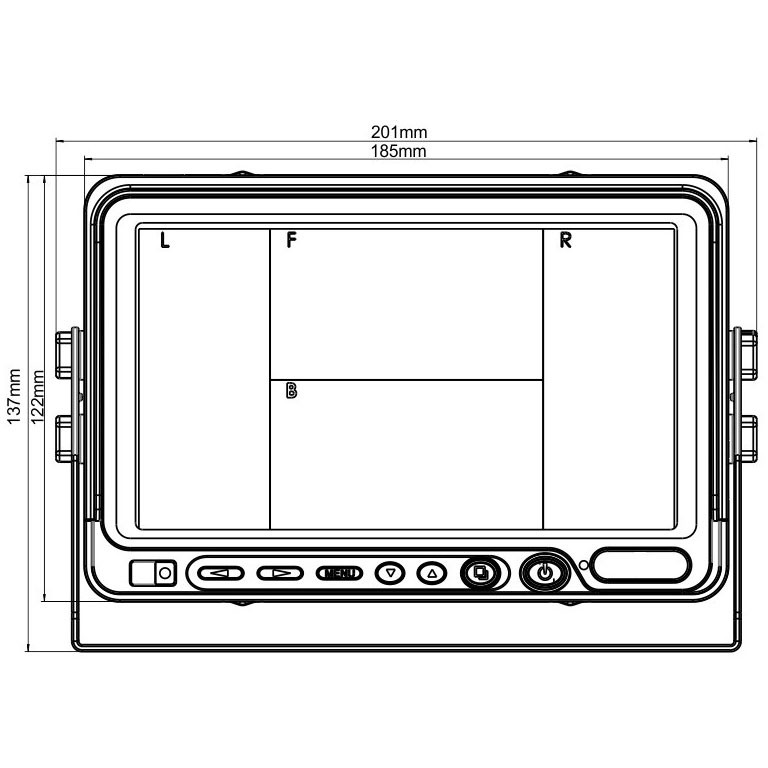

Specifications monitor:

Screen type: 7-inch digital TFT-LCD color monitor
Connection: 4-pin/4-pin
Voltage range: 10-32 V
Resolution: 800 x 480
Contrast: 500:1
Brightness: 400 cd/m2
Camera connections: 2 pcs

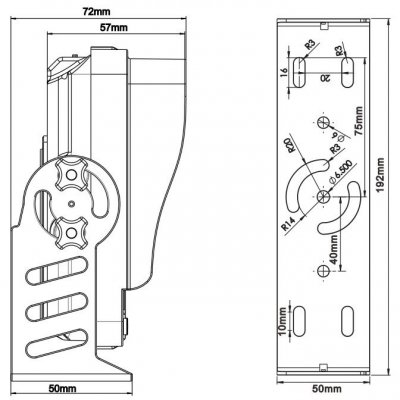

Dimensions incl. bracket: W 185 mm x H 122 mm x D 50 mm
Temperature range: -20 to +60 degrees
Trigger control: Yes
Remote control: Yes

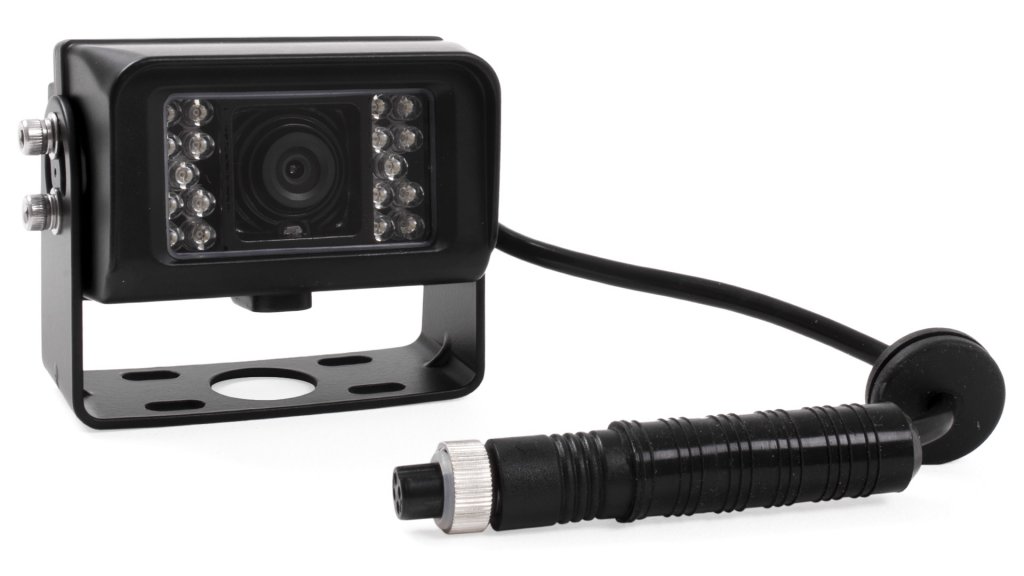

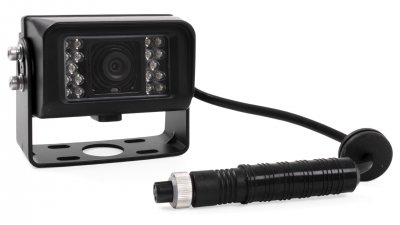

A small wired reversing camera designed for our tough Nordic conditions with very clear and detailed image reproduction.

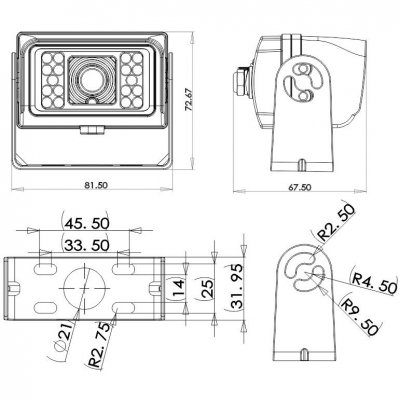

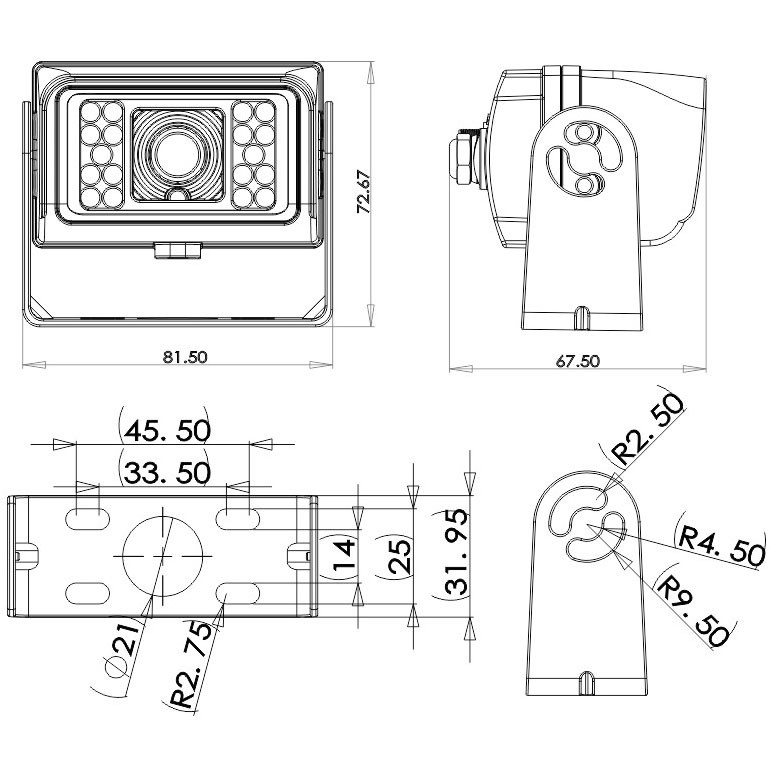

Specifications standard camera RC25:

Voltage range: 12 V (12-24 V when connected to monitor)
Dimensions incl bracket: W 82 mm H 73 mm D 68 mm
Wide angle: 130 degrees
Optics: 1/3" Sharp CCD
Sensitivity: 0 Lux / F 1.2 (IR on)
IR diodes: 18 pcs
Range in darkness: 15 m
Protection class: IP69K
Vibration resistance: 10 G

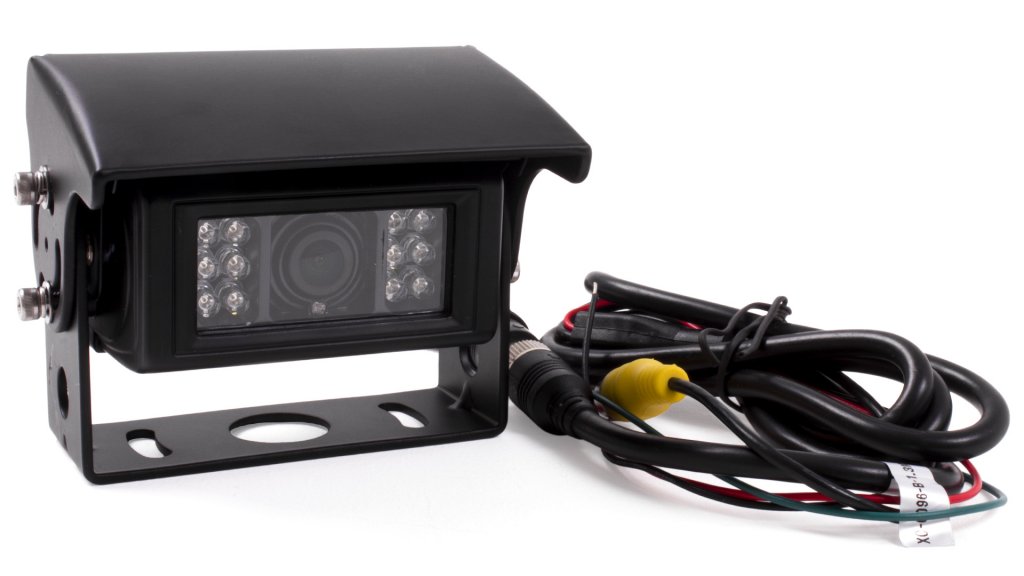

A small wired visor camera designed for our tough Nordic conditions with very clear and detailed imaging. Used advantageously for professional use.

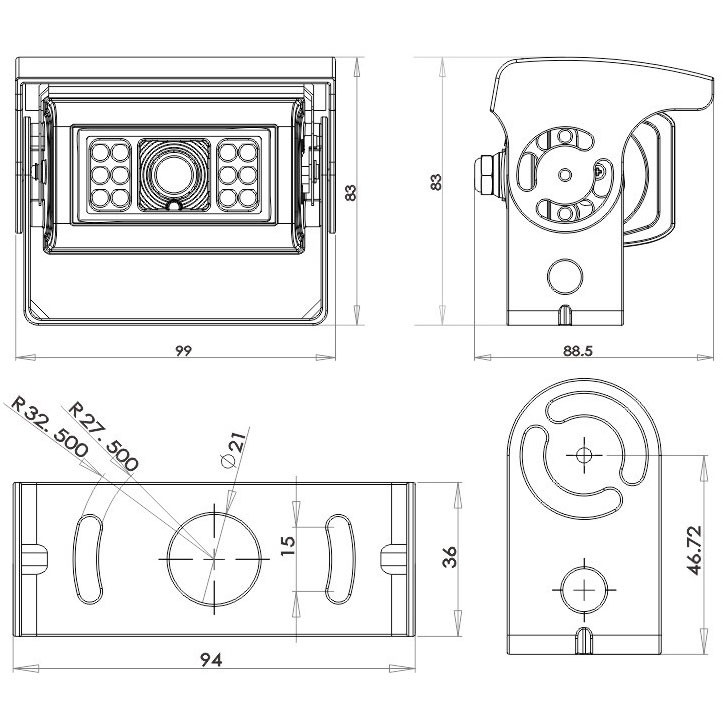

Specifications visor camera RC30:

Voltage range: 10-32 V
Dimensions incl bracket: H 83 mm W 99 mm D 89 mm
Wide angle: 130 degrees
Optics: 1/3" Sharp CCD
Sensitivity: 0 Lux / F 1.2 (IR on)
IR diodes: 12 pcs
Range in darkness: 15 m
Protection class: IP69K
Vibration resistance: 10 G

Supplied complete for connection. Choose the cable length in the drop-down list below the price
