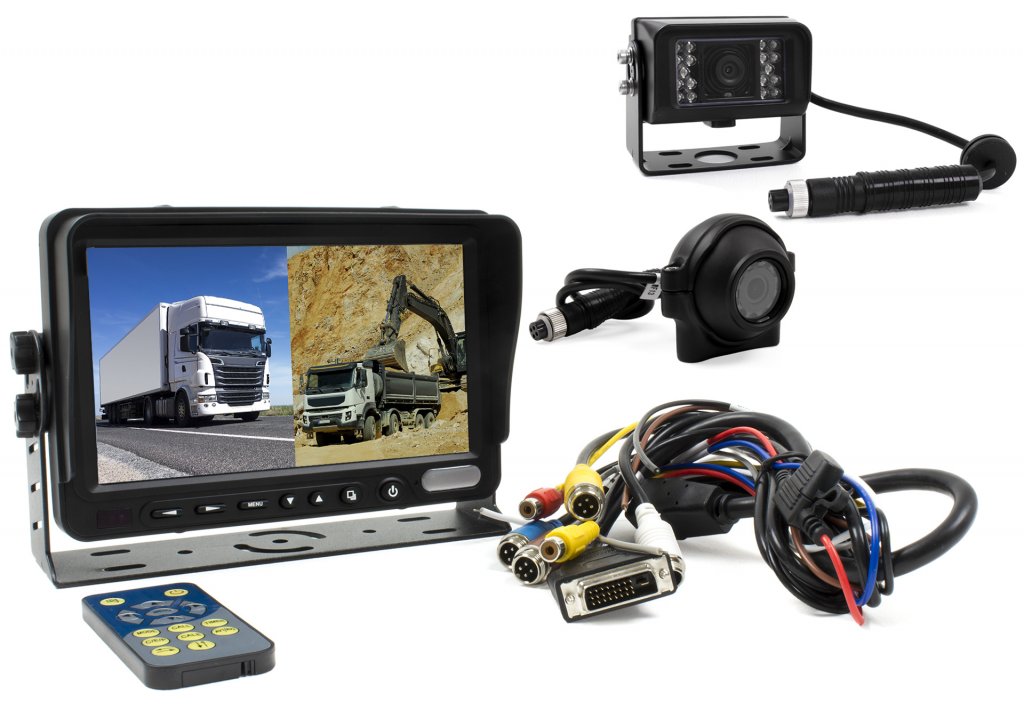

Split system 7" monitor with 1 standard & 1 ball

  • Rear view camera system 7-inch with 1 standard & 1 ball camera
  • 7-inch rear view camera system with 1 standard & 1 ball camera
  • Rear view camera system 7-inch with 1 standard & 1 ball camera
  • Rear view camera system 7-inch with 1 standard & 1 ball camera
  • Rear view camera system 7-inch with 1 standard & 1 ball camera
  • Rear view camera system 7-inch with 1 standard & 1 ball camera
  • Back camera system 7-inch with 1 standard & 1 ball camera
Item ID:  VN-730SS-55

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

The 7" monitor is very suitable for professional use. Suitable for most types of industries and is installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. LCD screen that provides a very detailed image and has a fast response time.

Matt screen surface and sun protection minimizes reflections. The keypads are backlit with LEDs.

The screen can display images from up to 4 cameras simultaneously.

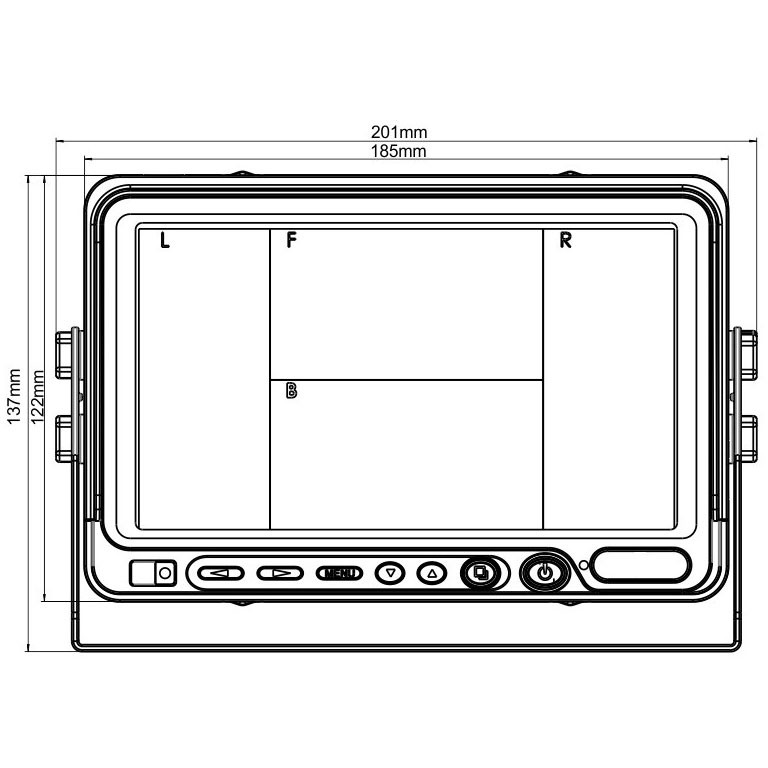

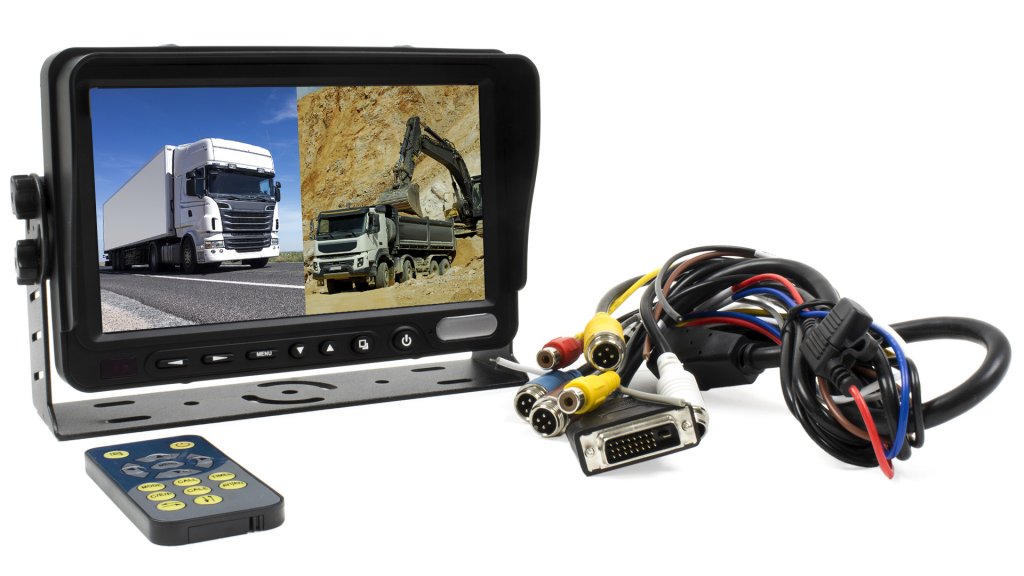

Monitor RM70SS:

  • Screen type: 7-inch digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Resolution: 800 x 480
  • Contrast: 500:1
  • Brightness: 400 cd/m2
  • Camera connections: 2 pcs

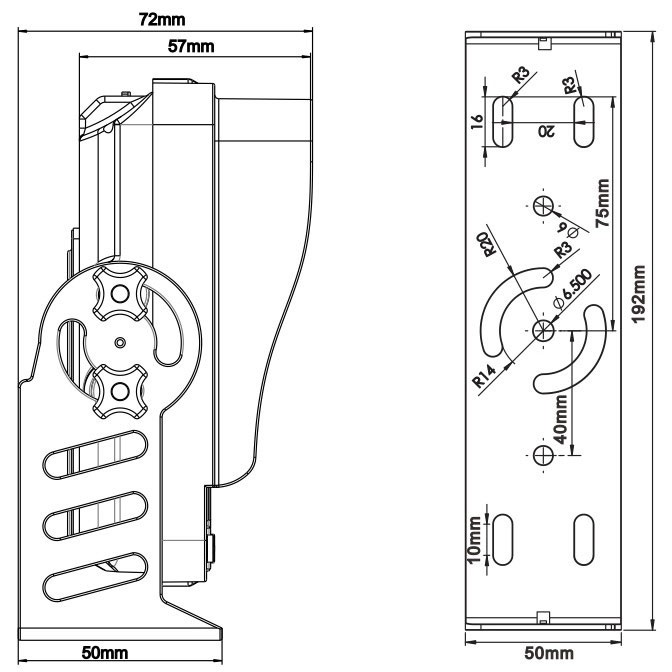

  • Dimensions incl. bracket: W 185 mm x H 122 mm x D 50 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes

A small wired reversing camera designed for our tough Nordic conditions with very clear and detailed image reproduction.

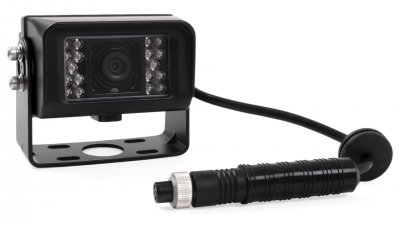

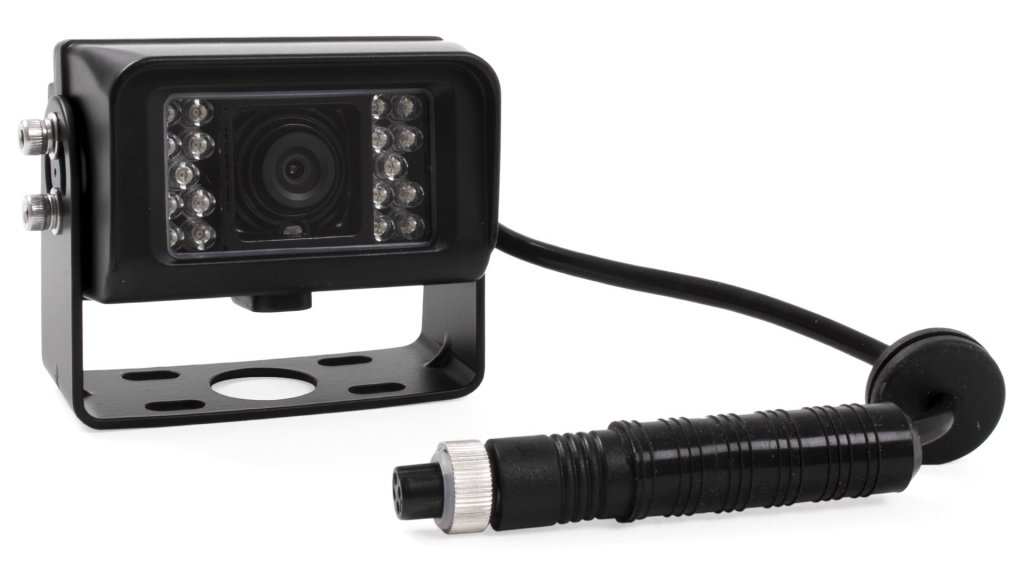

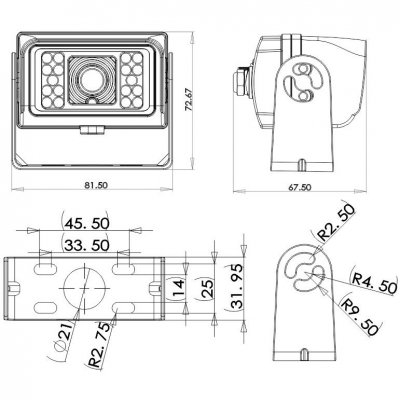

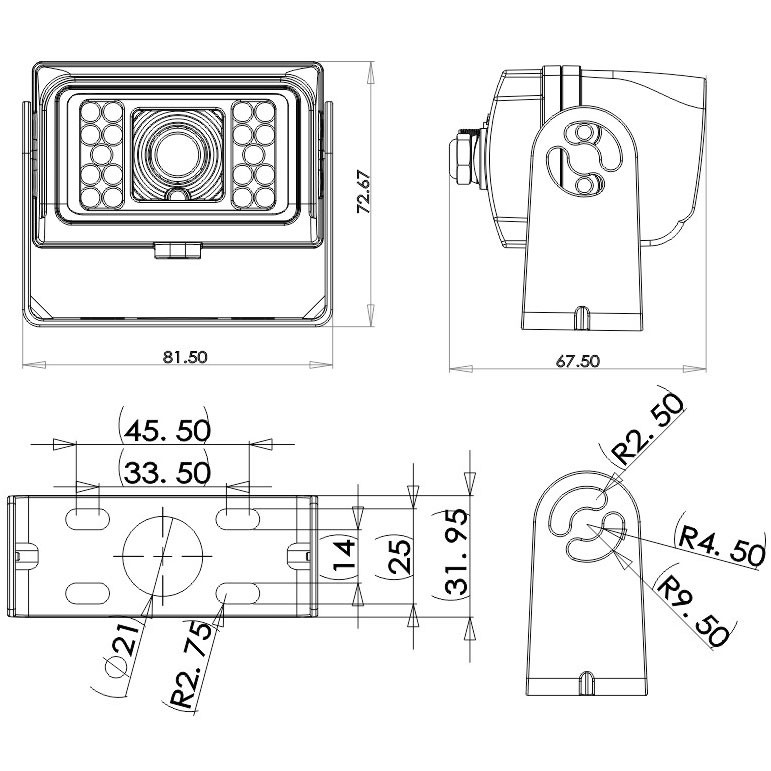

Standard camera RC25:

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • Dimensions incl bracket: W 82 mm H 73 mm D 68 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 18 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

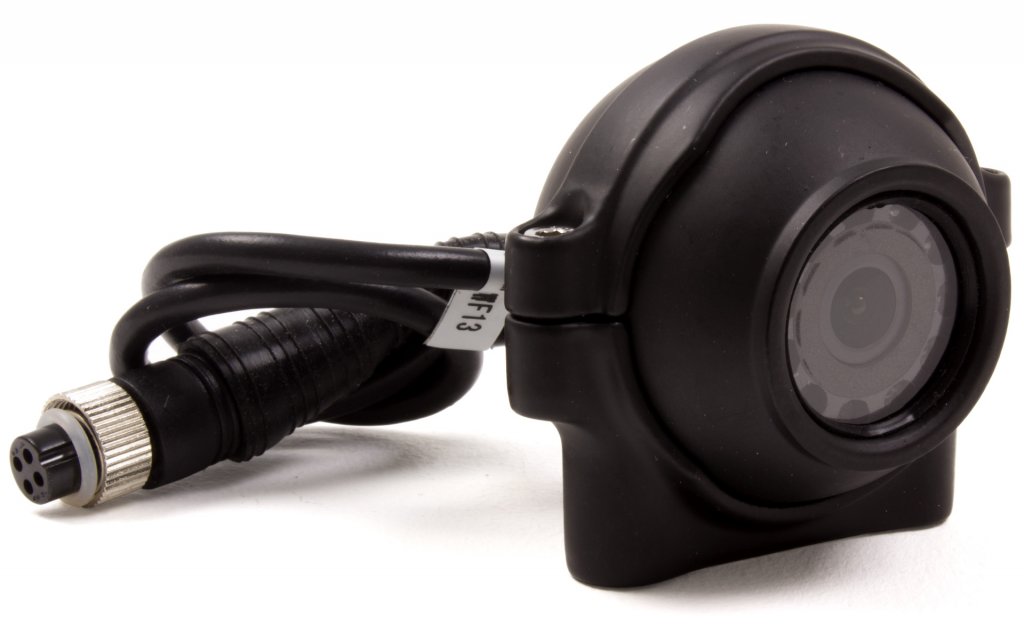

Ball camera RC6:

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • Dimensions incl bracket: W 61 mm H 60 mm D 83 mm
  • Wide angle: 120 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 9 pcs
  • Range in darkness: 10 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

Supplied complete for connection. Select the cable length in the drop-down list below the price
