Extra light package Lazer Volkswagen Caddy 2016-2020

  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
  • Extra light kit Lazer Volkswagen Caddy from 2016-2020
Item ID:  7545-832E
€883
Incl. VAT

Which LED light bars do you want?

€708
Available in external warehouse | Ships within 1-4 business days
€883
Available
€174
Available in external warehouse | Ships within 1-4 business days
Available
Available in external warehouse | Ships within 1-4 business days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days
Product Description:

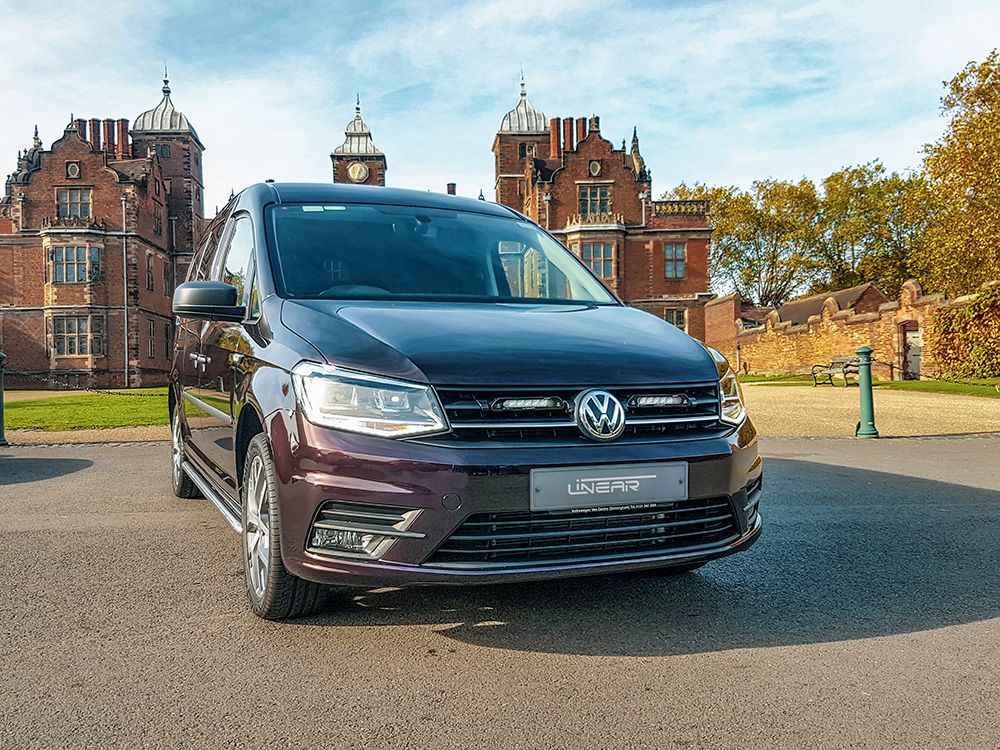

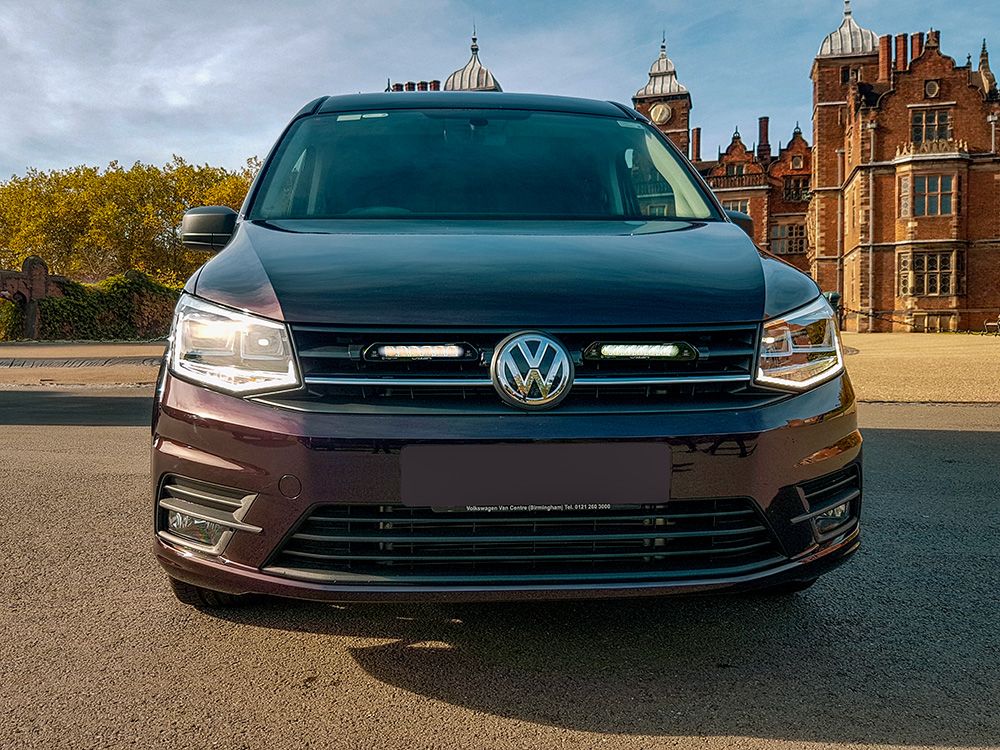

Complete auxiliary light kit containing everything you need for installation in the upper grill of the Volkswagen Caddy from 2016-2020.

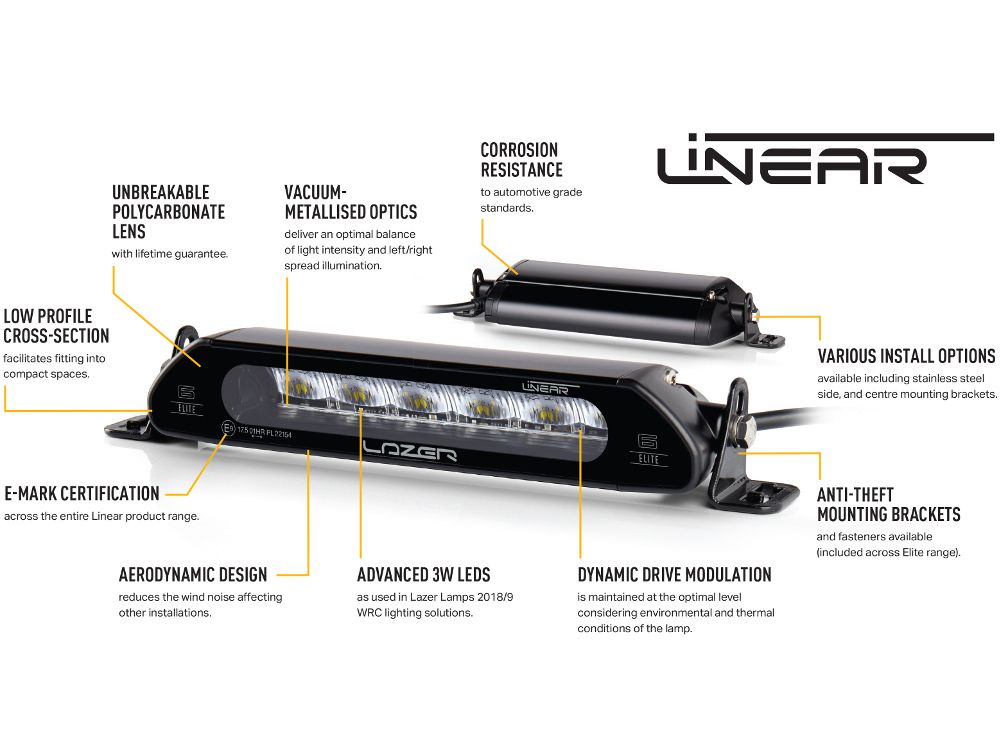

Complete extra light package Lazer Volkswagen Caddy containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Linear 6. You choose whether you want the Lazer Linear 6, or the Elite model for longer range and increased power.

Extra light package Lazer Volkswagen Caddy

Linear 6StandardElite
Voltage range10-32V10-32V
Luminous flux4500 lm8100 lm
Color temperature5000 K5000 K
Number of LEDs2 x 6 pcs2 x 12 pcs
Position lightNo, no, noNo, no, no
Power output42 W84 W
Load (at 14.4V)2,92 A5,8 A
Certification
Reference number2 x 12,52 x 17,5
Bright lightECE R112ECE R112
Luminous flux

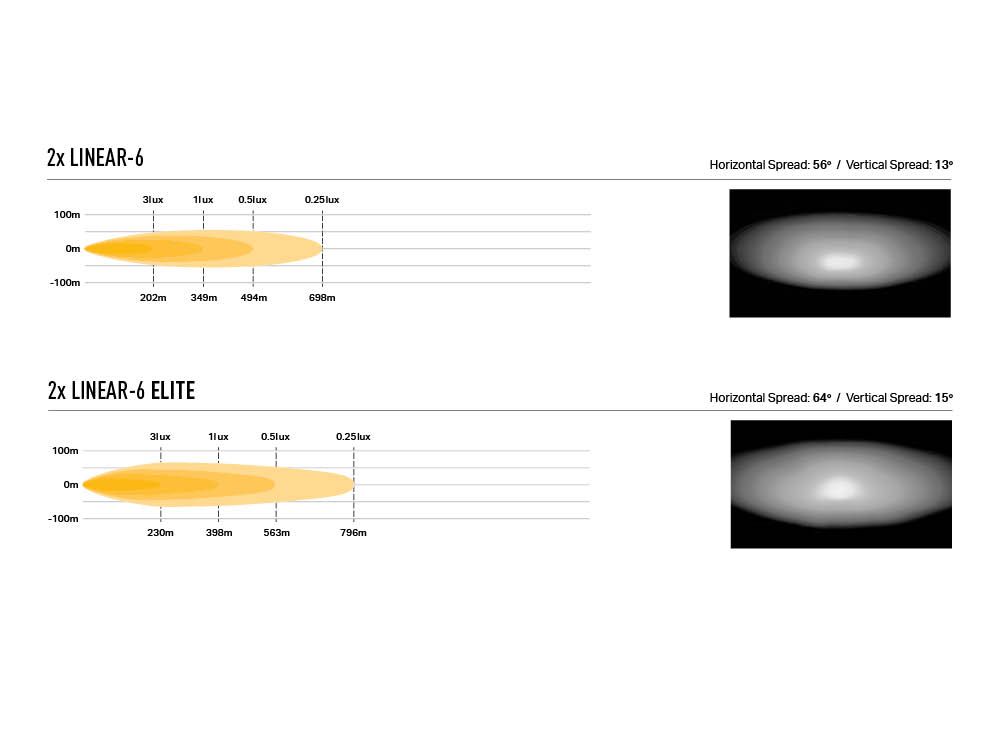

Light angle horizontal56 degrees64 degrees

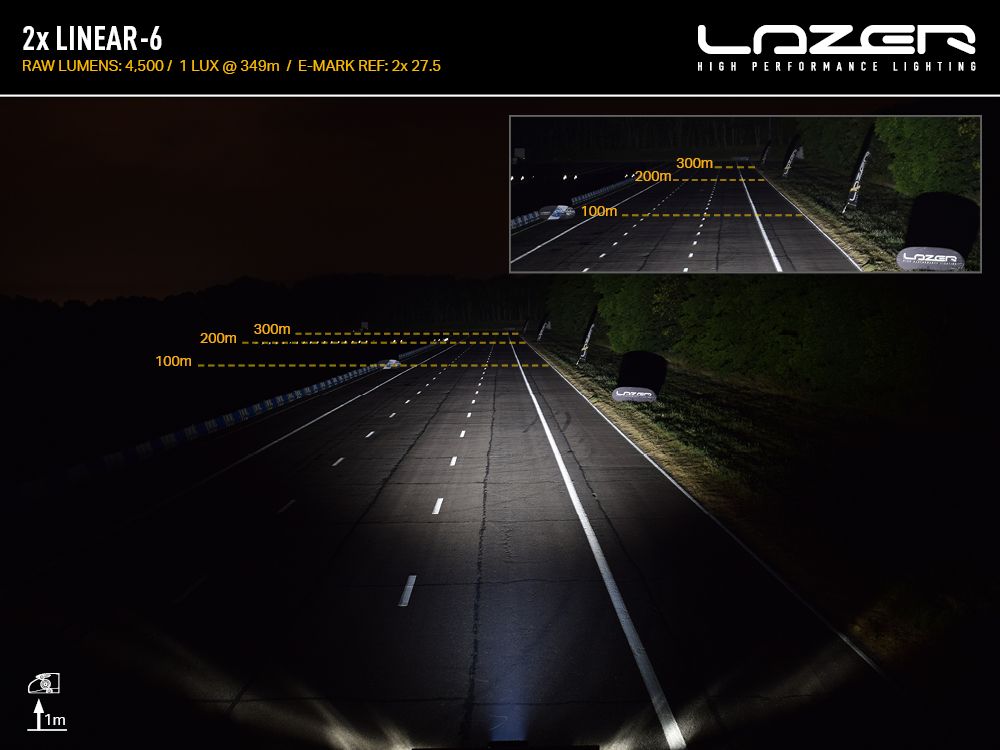

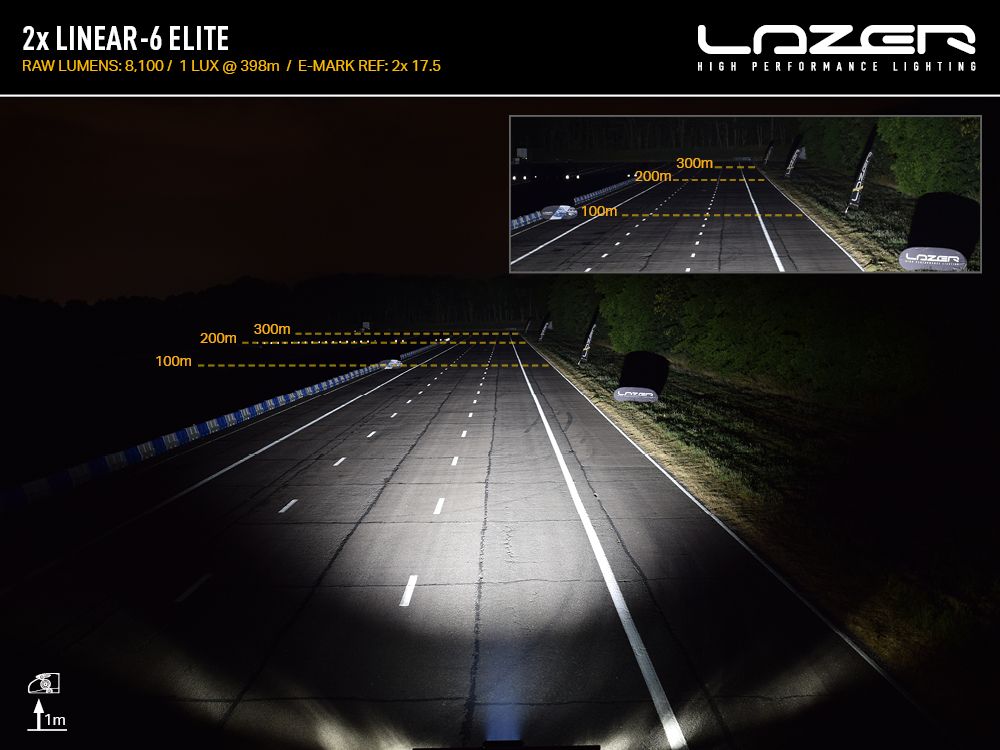

Range (1 lux)349 meters398 meters
Range (0.25 lux)698 meters796 meters
Installation

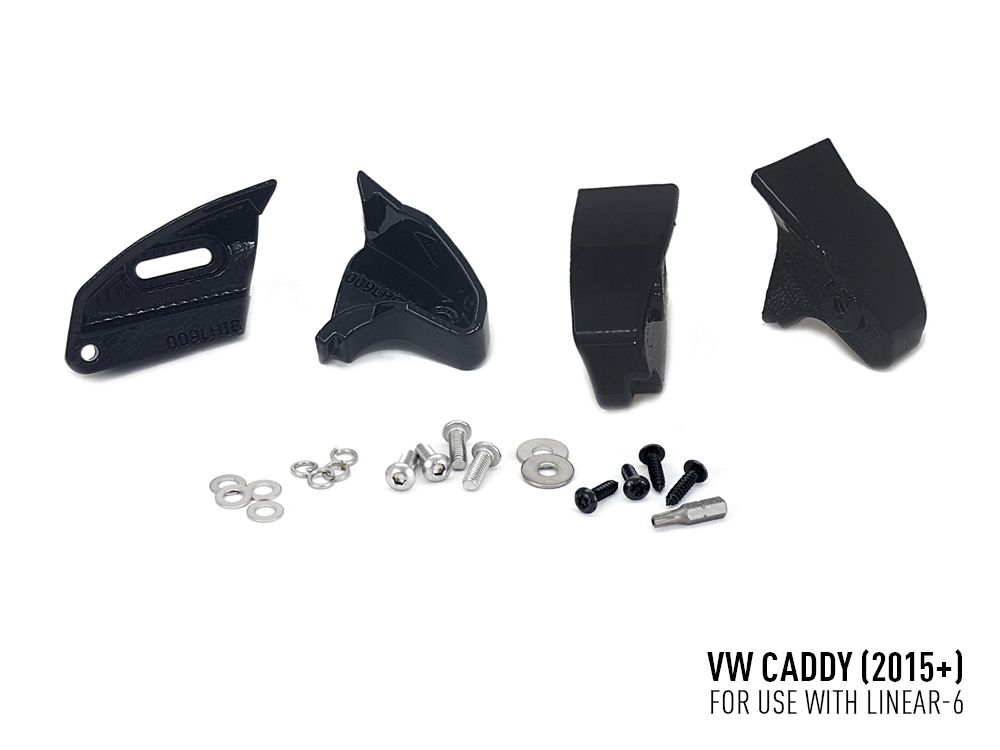

  • Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

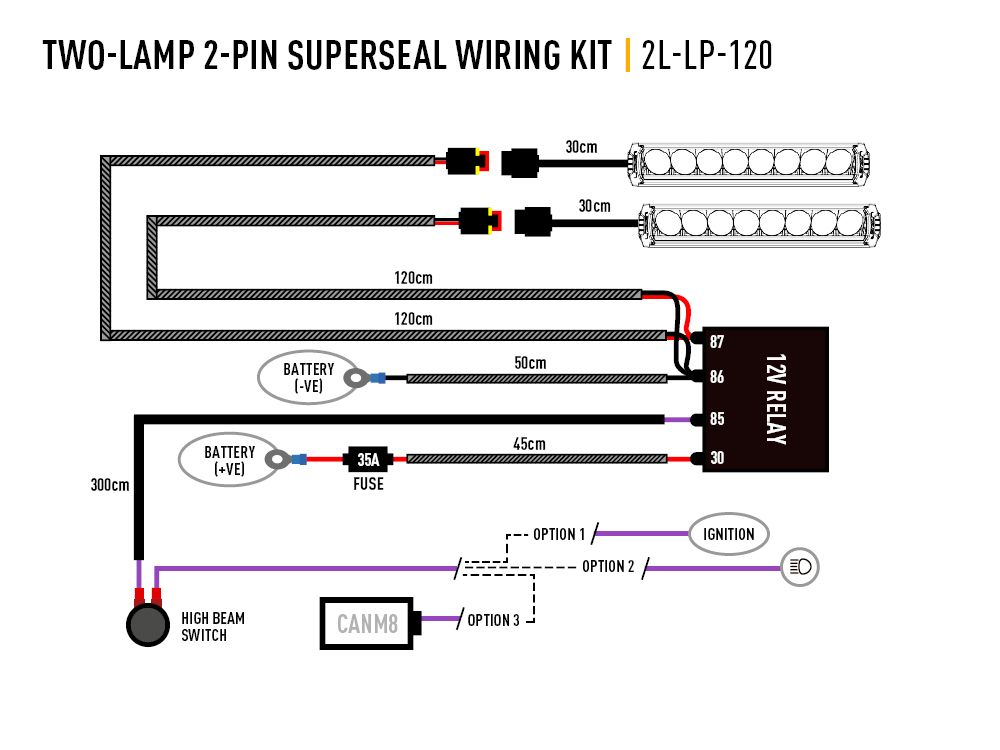

Wiring
  • Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.
What is included in the extra light kit Lazer Volkswagen Caddy
  • 2 pcs Lazer Linear 6
  • Mounting details

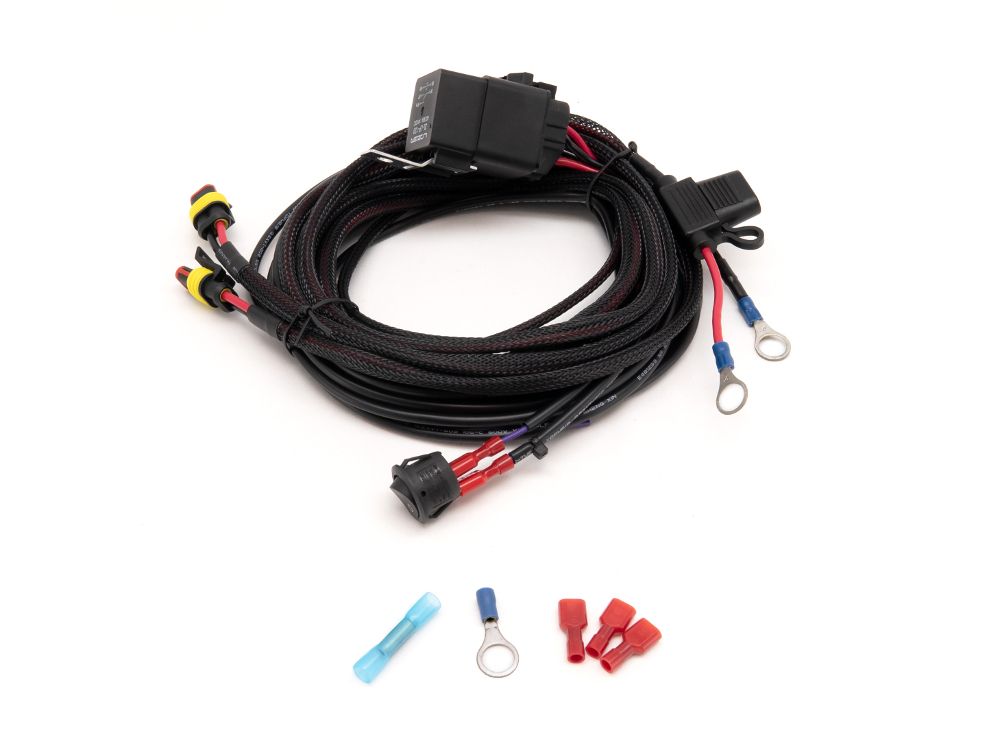

  • Relay kit
  • Mounting instructions

Extra light kit Lazer Volkswagen Caddy is delivered as a complete kit


Documents:
attachment Mounting description for led light bar 7545-832

Fits the following car models:

Volkswagen Caddy from 2016-2020

Cars manufactured from 2016 to 2020

Volkswagen Caddy from 1996-2004 Volkswagen Caddy 2004-2020 Volkswagen Caddy from 2021-

Body code: Type 2K 2n Facelift

Engine:

  • Diesel
  • Petrol
  • Natural gas

Models:

  • Caddy
  • Caddy Maxi
  • Caddy Life
  • Caddy Maxi Life
  • Caddy Alltrack
  • Caddy Alltrack Life

Manufacturer:

Assembly time: about 60 minutes

Warranty: 5 year warranty
