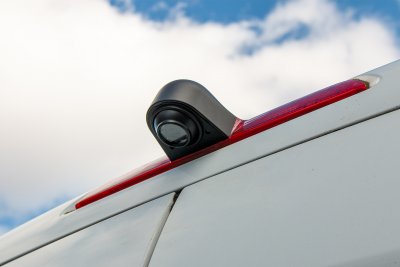

Rear view camera Ford Transit from 2014-2019 replaces the third brake light. Rearview camera Ford Transit is a model-adapted rearview camera designed for our tough Nordic conditions with very clear and detailed image reproduction.

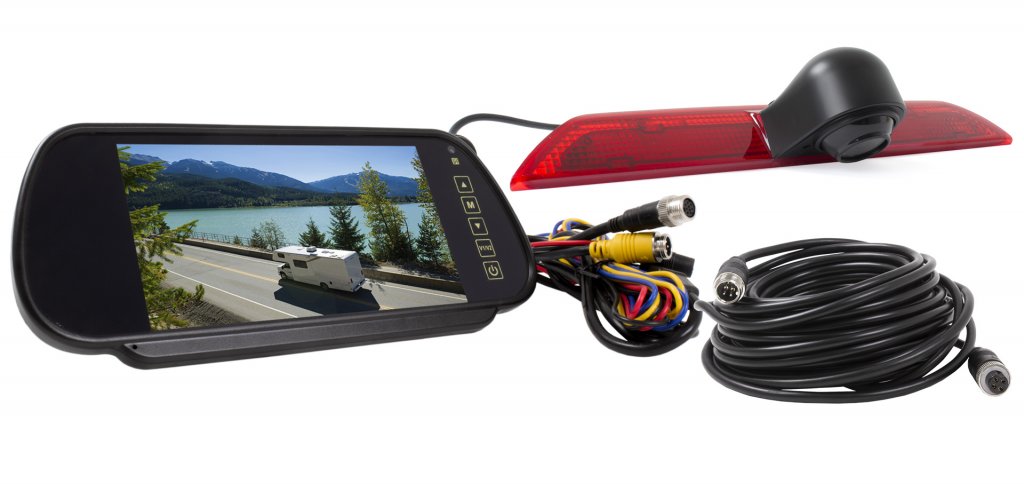

External screen 7 "rearview mirror screen (hung over the existing rearview mirror) is available in the drop-down list.
Rear view camera Ford Transit

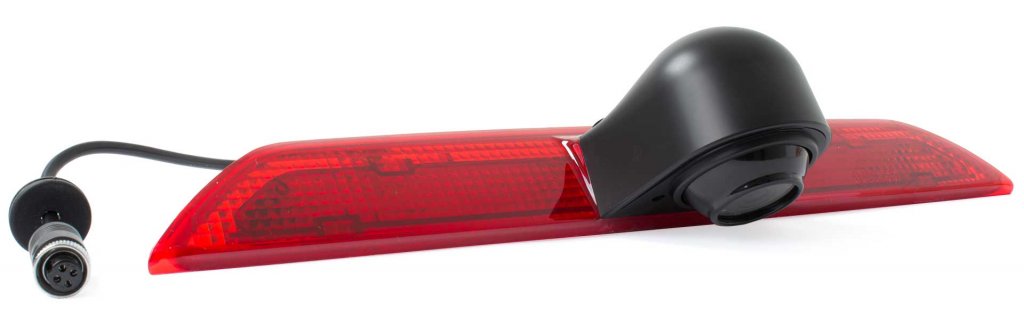

Simple and neat installation as the 3rd brake light is replaced with this module. Brake light and rearview camera Ford Transit are combined for easy installation in your car.
Specification reversing camera:
- Voltage range: 12 V (12-24 V when connected to monitor)
- Wide angle: 120 degrees
- Brightness: f/2.8
- Image sensor: 1/3" CMOS
- IR technology: Yes
- Protection class: IP69K
- Vibration resistance: 10 G

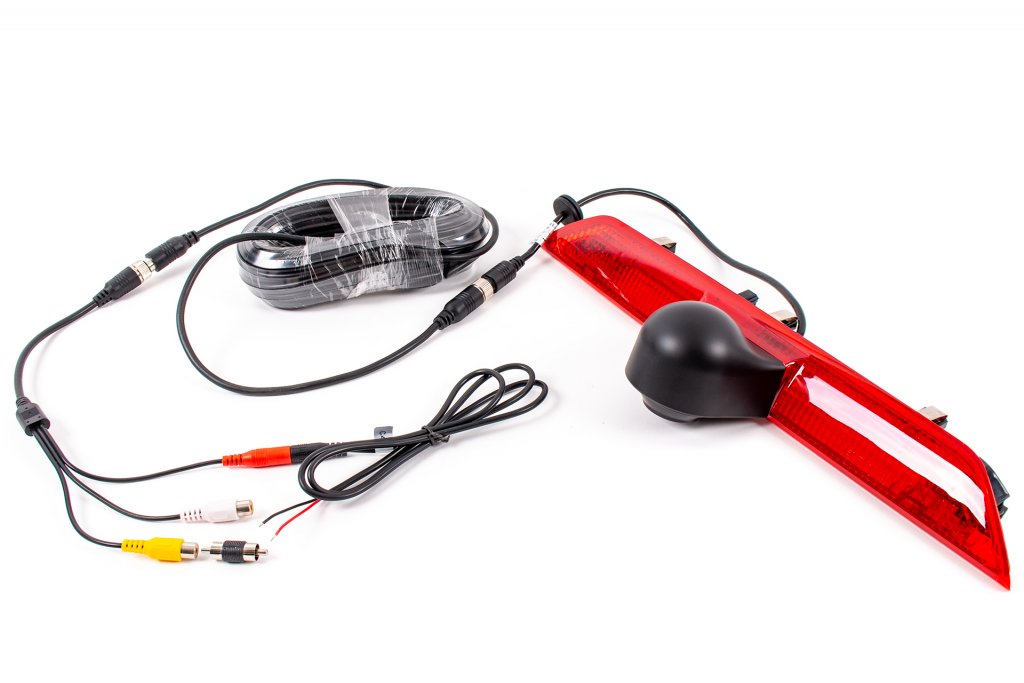

- When purchasing the rear view camera only, 10 meters of cable with 4-pin connector and a transition for RCA connection are included.
- For cars with sensitive electrical systems, power resistors or relay control may be required.
Our external monitor is very well suited for professional use. Fits most types of industries and is advantageously installed in transportation vehicles. The LCD screen provides a detailed image and has a fast response time.
Specifications screens:
- Screen type: Digital TFT-LCD color monitor
- Connection: 4-pin/4-pin
- Voltage range: 10-32 V
- Camera connections: 2 pcs
- Dimensions incl bracket: W 249 mm x H 108 mm x D 39 mm
- Temperature range: -20 to +60 degrees
- Trigger control: Yes
- Remote control: Yes
Rearview mirror screen: Fastening is done with the help of spring-loaded claws around the existing rearview mirror. If there is no existing rearview mirror, there is a mounting bracket VN-162 at the bottom of the page.
Supplied as a complete kit.
